CARBURETOR

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

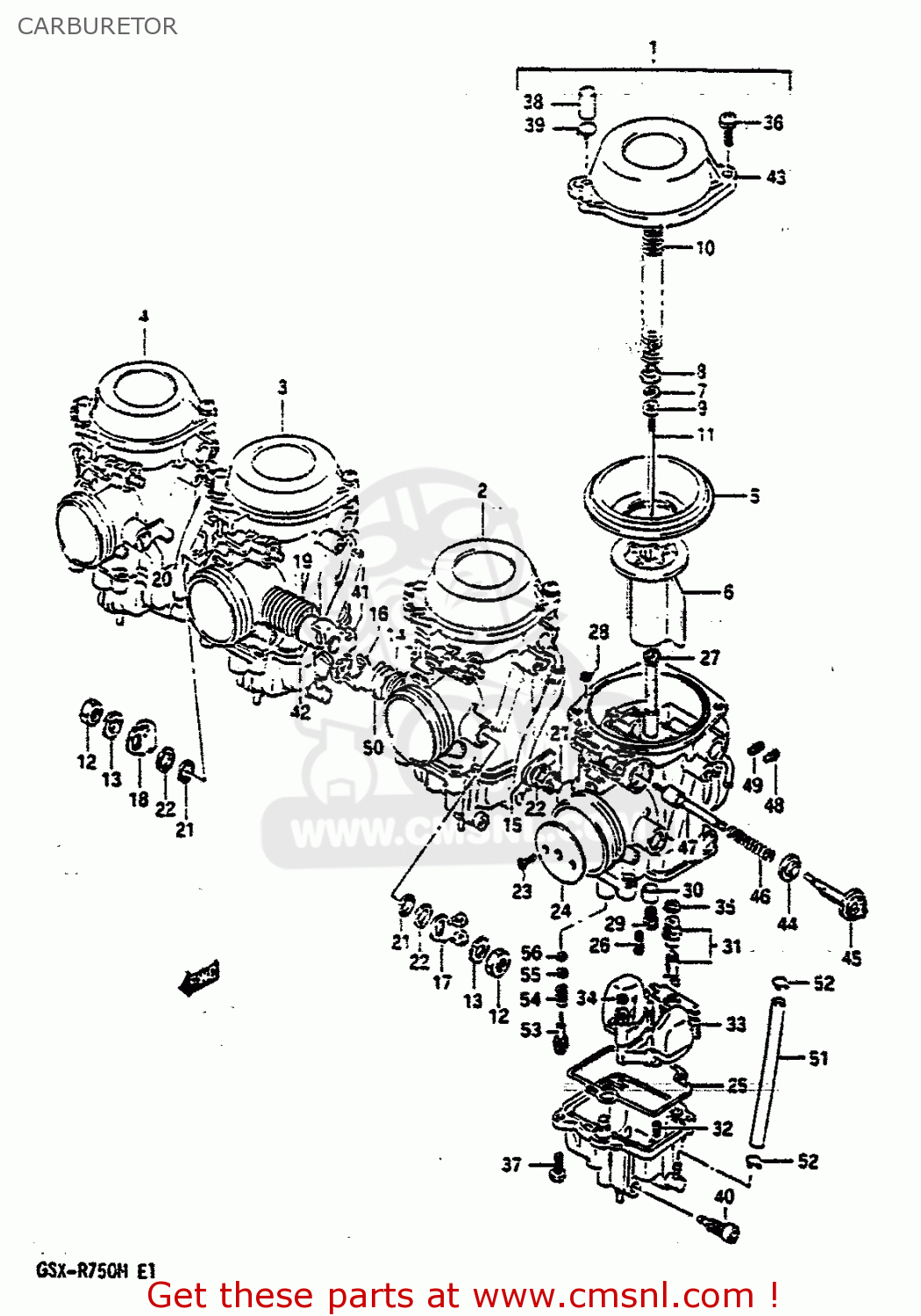

Carburetor diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

CARBURETOR GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1320118D80
ref: 1-1
E1,E34
CARBURETOR ASSY,LH
€ 0.00
1-2
1320118D00
ref: 1-2
E2,E4,E16,E21,E25,E5
CARBURETOR ASSY,LH
€ 554.00
1-3
1320118D90
ref: 1-3
E15
CARBURETOR ASSY,LH
€ 0.00
1-4
1320118D10
ref: 1-4
E17
CARBURETOR ASSY,LH
€ 0.00
1-5
1320118D50
ref: 1-5
E18
CARBURETOR ASSY,LH
€ 0.00
1-6
1320118D70
ref: 1-6
E22
CARBURETOR ASSY,LH
€ 0.00
1-7
1320118D60
ref: 1-7
E24
CARBURETOR ASSY,LH
€ 0.00
1-8
1320118D20
ref: 1-8
E39
CARBURETOR ASSY,LH
€ 0.00
2-1
1320218D80
ref: 2-1
E1,E34
CARBURETOR ASSY,ML
€ 554.00
2-2
1320218D00
ref: 2-2
E2,E4,E16,E21,E25,E5
CARBURETOR ASSY,ML
1320218D00
€ 554.00
2-3
1320218D90
ref: 2-3
E15
CARBURETOR ASSY,ML
€ 554.00
2-4
1320218D10
ref: 2-4
E17
CARBURETOR ASSY,ML
€ 0.00
2-5
1320218D50
ref: 2-5
E18
CARBURETOR ASSY,ML
1320218D50
€ 360.50
2-6
1320218D70
ref: 2-6
E22
CARBURETOR ASSY,ML
€ 0.00
2-7
1320218D60
ref: 2-7
E24
CARBURETOR ASSY,ML
€ 554.00
2-8
1320218D20
ref: 2-8
E39
CARBURETOR ASSY,ML
€ 0.00
3-1
1320318D80
ref: 3-1
E1,E34
CARBURETOR ASSY,MR
€ 554.00
3-2
1320318D00
ref: 3-2
E2,E4,E16,E21,E25,E5
CARBURETOR ASSY,MR
1320318D00
€ 554.00
3-3
1320318D90
ref: 3-3
E15
CARBURETOR ASSY,MR
€ 554.00
3-4
1320318D10
ref: 3-4
E17
CARBURETOR ASSY,MR
€ 0.00
3-5
1320318D50
ref: 3-5
E18
CARBURETOR ASSY,MR
€ 0.00
3-6
1320318D70
ref: 3-6
E22
CARBURETOR ASSY,MR
€ 0.00
3-7
1320318D60
ref: 3-7
E24
CARBURETOR ASSY,MR
€ 554.00
3-8
1320318D20
ref: 3-8
E39
CARBURETOR ASSY,MR
€ 0.00
4-1
1320418D80
ref: 4-1
E1,E34
CARBURETOR ASSY,RH
€ 554.00
4-2
1320418D00
ref: 4-2
E2,E4,E16,E21,E25,E5
CARBURETOR ASSY,RH
1320418D00
€ 554.00
4-3
1320418D90
ref: 4-3
E15
CARBURETOR ASSY,RH
€ 554.00
4-4
1320418D10
ref: 4-4
E17
CARBURETOR ASSY,RH
€ 0.00
4-5
1320418D50
ref: 4-5
E18
CARBURETORR ASSY,RH
€ 0.00
4-6
1320418D70
ref: 4-6
E22
CARBURETOR ASSY,RH
€ 0.00
4-7
1320418D60
ref: 4-7
E24
CARBURETOR ASSY,RH
€ 554.00
4-8
1320418D20
ref: 4-8
E39
CARBURETOR ASSY,RH
€ 0.00
5
1350707D00
ref: 5
DIAPHRAGM
1350707D00
€ 24.50
6-1
1350117D00
ref: 6-1
VALVE,PISTON
1350117D00
€ 69.50
6-2
1350117D10
ref: 6-2
E18
VALVE,PISTON
1350117D10
€ 62.00
7
1339431210
ref: 7
CLIP,NEEDLE
1339431210
€ 3.50
8
1338217D00
ref: 8
1338217D00
9-1
1338717D00
ref: 9-1
RING
€ 4.50
9-2
1338707D00
ref: 9-2
E17,E18,E22,E39
RING
1338707D00
€ 4.50
10-1
1341717D00
ref: 10-1
SPRING
1341717D00
€ 5.50
10-2
1341707D00
ref: 10-2
E18
SPRING
€ 6.50
11-1
1338317D00
ref: 11-1
NEEDLE,JET
1338317D00
€ 14.00
11-2
1338317D30
ref: 11-2
E17
NEEDLE,JET
1338317D30
€ 13.50
11-3
1338317D10
ref: 11-3
E18
NEEDLE,JET (32D25-3)
€ 23.00
11-4
1338318D10
ref: 11-4
E22,E39
NEEDLE,JET
€ 16.50
12
0831022086
ref: 12
ML,MR
NUT
€ 1.50
13
0832131086
ref: 13
ML,MR
WASHER,LOCK,8.
€ 2.50
14
1357307D00
ref: 14
ML
SPRING
€ 6.00
15
1355017D00
ref: 15
LH
SHAFT ASSEMBLY
€ 0.00
16
1355017D10
ref: 16
ML
SHAFT ASSEMBLY
€ 31.50
17
1355317C00
ref: 17
ML
LEVER
€ 7.00
18
1355344B00
ref: 18
MR
LEVER,THROTTLE
€ 7.00
19
1357307D10
ref: 19
MR
SPRING
€ 6.00
20
1355017D30
ref: 20
RH
SHAFT ASSEMBLY
€ 0.00
21
1355644B00
ref: 21
LH,RH:1,ML:MR:2
SEAL
1355644B00
€ 3.50
22
1355747070
ref: 22
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
23
1360407D00
ref: 23
SCREW
€ 3.50
24-1
1355117D00
ref: 24-1
VALVE,THROTTLE (130)
€ 0.00
24-2
1355117D10
ref: 24-2
E17,E18
VALVE,THROTTLE
1355117D10
€ 27.50
25
1325844B00
ref: 25
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
26-1
0949235010
ref: 26-1
JET,PILOT(37.5)
0949235010
€ 10.50
26-2
0949235008
ref: 26-2
E17
JET,PILOT(35)
0949235008
€ 7.50
26-3
0949232006
ref: 26-3
E18
JET,PILOT(32.5)
0949232006
€ 8.50
27-1
0949400675
ref: 27-1
JET,NEEDLE (O-8)
€ 31.00
27-2
0949400662
ref: 27-2
E17
JET,NEEDLE (P-0)
0949400662
€ 36.00
27-3
0949400677
ref: 27-3
E18
JET,NEEDLE(O-8)
0949400677
€ 37.00
28
1327802340
ref: 28
O RING
1327802340
€ 1.50
29-1
0949123017
ref: 29-1
JET,MAIN(117.5)
0949123017
€ 11.00
29-2
0949120017
ref: 29-2
E17
JET,MAIN
0949120017
€ 10.50
29-3
0949125011
ref: 29-3
E18
JET,MAIN(127.5)
0949125011
€ 10.00
30
1333107D00
ref: 30
RING
1333107D00
€ 4.50
31
1337007D00
ref: 31
VALVE ASSEMBLY,NEEDLE
€ 69.50
32
0949200001
ref: 32
PLUG
0949200001
€ 10.50
33
1324007D00
ref: 33
FLOAT ASSY
€ 52.50
34
1337446710
ref: 34
O RING
1337446710
€ 4.50
35
1337444080
ref: 35
O-RING,NEEDLE VALVE
1337444080
€ 6.00
36
1360234390
ref: 36
SCREW
1360234390
€ 2.50
37
0211205166
ref: 37
SCREW
€ 2.00
38
1350817C00
ref: 38
CAP
1350817C00
€ 4.50
39
1367133600
ref: 39
CLIP
1367133600
€ 4.00
40
1324702340
ref: 40
PLUG,DRAIN
1324702340
€ 5.50
41
1355017D20
ref: 41
MR
SHAFT ASSEMBLY
€ 0.00
42
1355705A20
ref: 42
MR
RING
€ 3.00
43-1
1350217D00
ref: 43-1
COVER,DIAPHRAGM
1350217D00
€ 43.00
43-2
1350217D10
ref: 43-2
E18
COVER,DIAPHRAGM
€ 0.00
43-3
1350217D20
ref: 43-3
E22,E39
COVER,DIAPHRAGM
€ 0.00
44
1341817C00
ref: 44
CAP,STARTER
1341817C00
€ 5.00
45
1341817C10
ref: 45
HOLDER,GUIDE
1341817C10
€ 14.00
46
1341709110
ref: 46
SPRING
1341709110
€ 6.00
47
1341105320
ref: 47
PLUNGER ASSY
1341105320
€ 18.00
48-1
0949300001
ref: 48-1
JET,MAIN AIR (0)
0949300001
€ 8.00
48-2
0949318001
ref: 48-2
E18 LH,RH
JET,MAIN AIR(0.9)
0949318001
€ 14.50
48-3
0949324007
ref: 48-3
E18 ML,MR
JET,AIR(1.2)
0949324007
€ 13.50
49-1
0949324007
ref: 49-1
JET,AIR(1.2)
0949324007
€ 13.50
49-2
0949325003
ref: 49-2
E18,E22,E39
JET,AIR(1.25)
0949325003
€ 11.00
50
1355707D00
ref: 50
ML
RING
€ 5.50
51
1368318D00
ref: 51
HOSE
€ 8.00
52
1367112C00
ref: 52
CLIP
€ 2.50
53-1
1327947070
ref: 53-1
EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
53-2
1327947070
ref: 53-2
E17
SCREW,PILOT
1327947070
€ 11.50
54
1326847070
ref: 54
EXCEPT E18
SPRING
1326847070
€ 5.00
55
1329129900
ref: 55
EXCEPT E18
WASHER
1329129900
€ 2.00
56
1329529900
ref: 56
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
