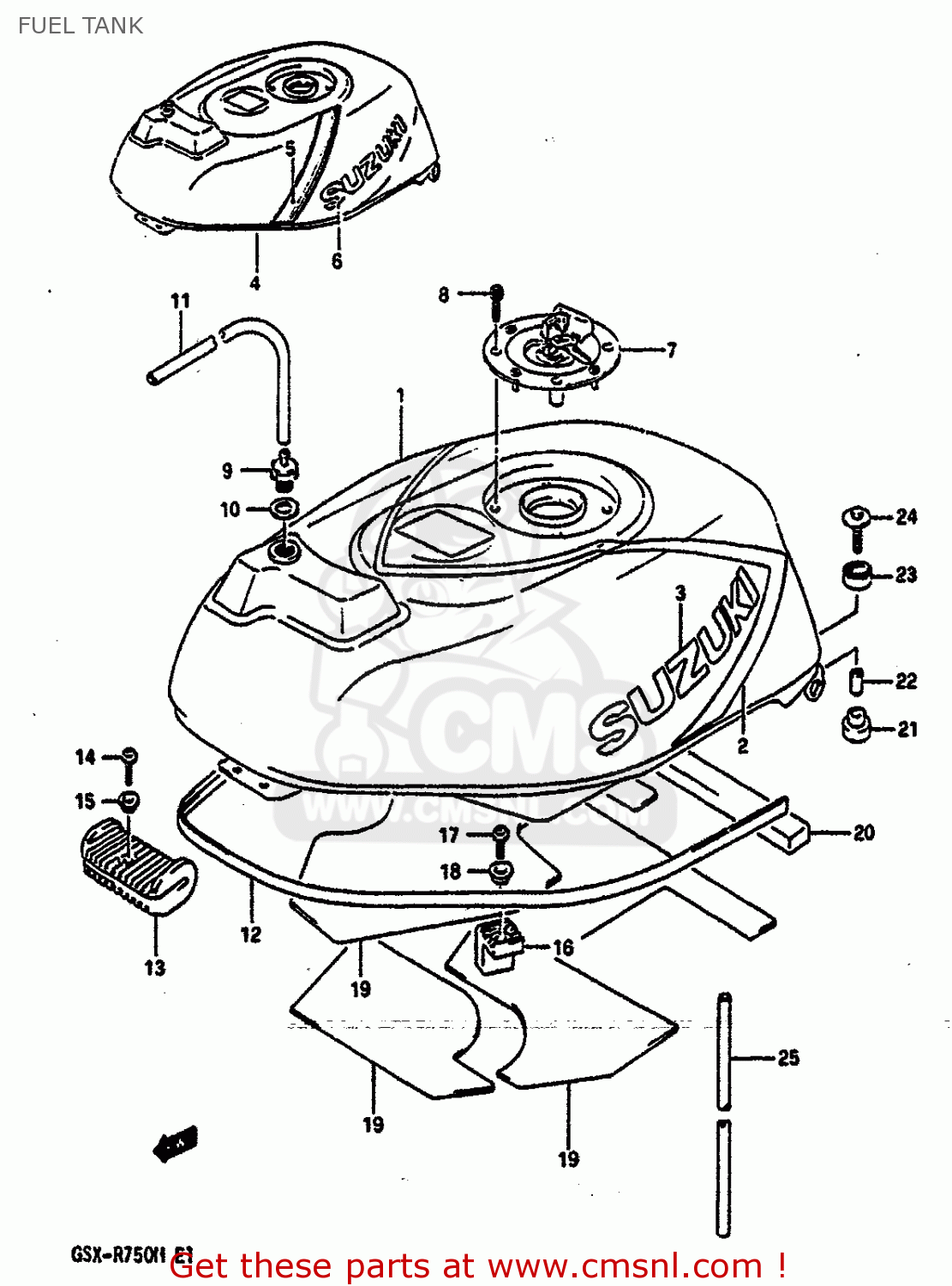

FUEL TANK

ref

part #

description

quantity

1-1

4410018D003SL
ref: 1-1

TANK ASSEMBLY,FUEL

€ 1,023.00

1-2

4410018D003RZ
ref: 1-2

TANK ASSY,FUEL

€ 1,023.00

1-3

4410018D303RZ
ref: 1-3
E22

TANK ASSY,FUEL

€ 1,023.00

1-4

4410018D303SL
ref: 1-4
E22

TANK ASSEMBLY,FUEL

€ 1,023.00

1-5

4410018D503RZ
ref: 1-5
E18,E39

TANK ASSY,FUEL

€ 616.00

1-6

4410018D503SL
ref: 1-6
E18,E39

TANK ASSY,FUEL

€ 616.00

2-1

6811518D013SL
ref: 2-1
FOR 3SL

TAPE,FUEL TANK

€ 86.00

2-2

6811518D013SP
ref: 2-2
FOR 3RZ

TAPE,FUEL TANK

€ 79.50

3

6818132B000JW
ref: 3
FOR 3SL,3RZ

EMBLEM,FUEL TANK(WHITE)

€ 15.50

4-1

4410018D103CG
ref: 4-1

TANK,FUEL

€ 1,266.00

4-2

4410018D403CG
ref: 4-2
E22

TANK ASSY,FUEL

€ 1,266.00

4-3

4410018D603CG
ref: 4-3
E18,E39

TANK ASSY,FUEL

€ 616.00

5

6811018D01H07
ref: 5
FOR 3CG

TAPE SET,F.T.S

€ 56.50

6

6811112C0013L
ref: 6
FOR 3CG

EMBLEM,FUEL TANK

€ 18.00

7

4420101851
ref: 7

CAP SET,FUEL TANK

€ 166.50

8

0910605017
ref: 8

BOLT(5X20)

€ 3.00

9

4424006B10
ref: 9

PLUG,FUEL TANK BREATHER

€ 36.00

10

0916812012
ref: 10

GASKET(12.5X20X2.5) (NAS)

€ 2.00

11

0935250823600
ref: 11

HOSE(5X8.2X600)

€ 13.00

12

6824127A00
ref: 12

MOLDING,FUEL TANK

€ 23.00

13

4451141C00
ref: 13

CUSHION,FUEL TANK FR

€ 13.50

14

0214205104
ref: 14

SCREW 5X10

€ 2.50

15

0916905012
ref: 15

WASHER

€ 3.00

16

4454541C00
ref: 16

CUSHION,FUEL TANK SIDE

€ 7.00

17

0214206207
ref: 17

SCREW

€ 2.00

18

0916906051
ref: 18

WASHER

€ 2.50

19-1

4419117D00
ref: 19-1

SHIELD,FUEL TANK HEAT

€ 27.50

19-2

4419117D10
ref: 19-2
E18

SHIELD,FUEL TANK HEAT

€ 104.50

19-3

4419140C10
ref: 19-3
E18

HEAT SHIELD,FUEL TANK IN

€ 39.00

20

4415117C00
ref: 20

CUSHION, AIR SEAL

€ 18.00

21

0932010038
ref: 21

CUSHION

€ 4.00

22

0918006072
ref: 22

SPACER

€ 2.00

23

0932014017
ref: 23

CUSHION

€ 3.00

24

0911606097
ref: 24

BOLT(6X35)

€ 2.50

25

093525082300A
ref: 25

HOSE

€ 13.00
