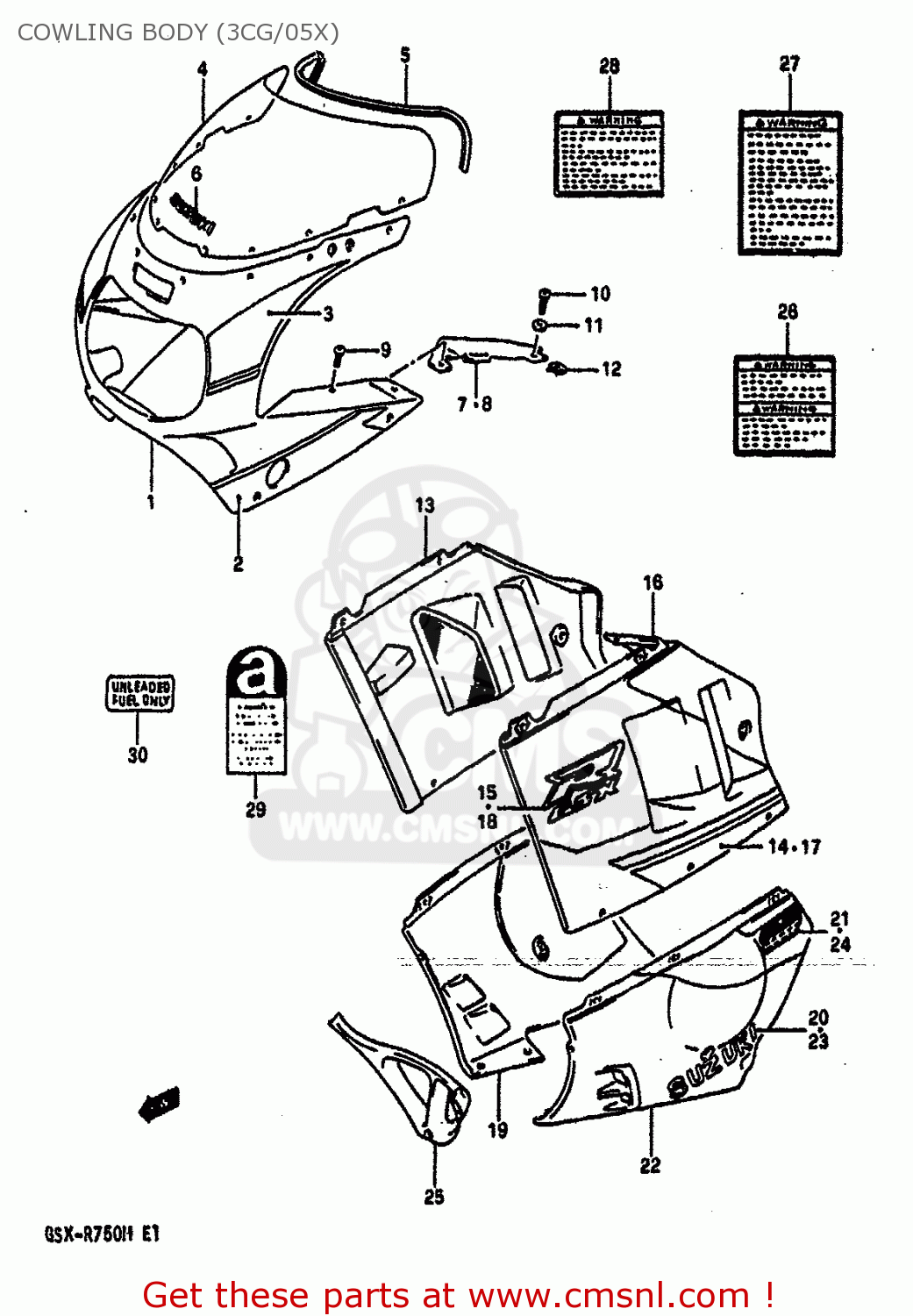

COWLING BODY (3CG/05X)

ref

part #

description

quantity

1-1

9440018D1033J
ref: 1-1
FOR 3CG

BODY ASSY,COWLING (BLACK)

€ 919.00

1-2

9440018D1036X
ref: 1-2
E2,E4,E18,FOR 05X

BODY ASSEMBLY,COWLING

€ 740.50

2-1

6827018D10H09
ref: 2-1

TAPE SET,SIDE

€ 43.00

2-2

6827018D10H16
ref: 2-2
E2,E4,E18

TAPE SET,COWLING

€ 39.00

3-1

6828018D10H09
ref: 3-1

TAPE SET,COWL UPR FR

€ 39.00

3-2

6828018D10H16
ref: 3-2
E2,E4,E18

TAPE SET,COWL UPR FR

€ 50.50

4-1

9461018D00
ref: 4-1

SCREEN SET,WINDOW

€ 321.50

4-2

9461018D10
ref: 4-2
E17

SCREEN SET,WIND

€ 0.00

5-1

9463118D00
ref: 5-1

MOLDING,WINDSCREEN

€ 12.50

5-2

9463118D10
ref: 5-2
E17

MOLDING

€ 14.00

6

6818212C000JW
ref: 6

EMBLEM,SUZUKI(WHITE)

€ 25.50

7

9443218D00
ref: 7

PANEL,COWLING UPR,R

€ 13.50

8

9444218D00
ref: 8

PANEL,COWLING,UPPER,LEFT

€ 13.50

9

0913905033
ref: 9

SCREW(5X10)

€ 2.00

10

0913905025
ref: 10

SCREW(5X14)

€ 2.00

11

0916105010
ref: 11

WASHER(5.2X11X1)

€ 2.00

12

0914805023
ref: 12

NUT

€ 1.50

13-1

9443018D103CG
ref: 13-1

COVER,COWLING SIDE,RH (BLACK/GRAY)

€ 480.50

13-2

9443018D3005X
ref: 13-2
E2,E4,E18

COVER,COWLING SIDE,RIGHT

€ 222.00

14-1

6868518D00H19
ref: 14-1

TAPE,SISE RH

€ 19.50

14-2

6868518D00H21
ref: 14-2
E2,E4,E18

TAPE,COWLING

€ 26.50

15-1

6868118D00H11
ref: 15-1

EMBLEM,COWLING SIDE

€ 28.00

15-2

6868118D10H61
ref: 15-2
E2,E4,E18

EMBLEM,COWLING SIDE

€ 30.50

16-1

9444018D103CG
ref: 16-1

COVER,COWLING SIDE LH (BLACK/GRAY)

€ 240.50

16-2

9444018D3005X
ref: 16-2
E2,E4,E18

COVER,COWLING SIDE,LEFT

€ 248.50

17-1

6869518D00H19
ref: 17-1

TAPE,SIDE LH

€ 23.00

17-2

6869518D00H21
ref: 17-2
E2,E4,E18

TAPE,COWLING

€ 26.50

18-1

6868118D00H11
ref: 18-1

EMBLEM,COWLING SIDE

€ 28.00

18-2

6868118D10H61
ref: 18-2
E2,E4,E18

EMBLEM,COWLING SIDE

€ 30.50

19

9447018D003CH
ref: 19

COWLING,UNDER TH (BLACK/SILVER)

€ 588.00

20

681113432013L
ref: 20

EMBLEM,COWLING,UNDER,RIGHT

€ 16.00

21

6868127B10H12
ref: 21

EMBLEM,SACS

€ 8.00

22

9448018D003CH
ref: 22

COWLING,UNDER

€ 374.00

23

6818136A0013L
ref: 23

EMBLEM

€ 14.50

24

6868127B10H12
ref: 24

EMBLEM,SACS

€ 8.00

25

9449817D0133J
ref: 25

COWLING,UNDER,CENTER (B

€ 80.50

26-1

6861340C11
ref: 26-1

LABEL (WARNING)

€ 8.50

26-2

6861340C00
ref: 26-2
E4,E21,E34,E53

LABEL (WARNING)

€ 7.50

27-1

6861248B00
ref: 27-1

LABEL (WARNING SCREEN)

€ 6.50

27-2

6861248B10
ref: 27-2
E4

LABEL (WARNING SCREEN)

€ 6.50

28-1

6831940C00
ref: 28-1

LABEL

€ 8.00

28-2

6831940C20
ref: 28-2
E22,E39

LABEL, WARNING SAFETY

€ 8.00

28-3

6831940C30
ref: 28-3
E4,E21

LABEL, WARNING SAFETY

€ 8.50

28-4

6831940C40
ref: 28-4
E34

LABEL, WARNING SAFETY

€ 8.00

28-5

6831940C51
ref: 28-5
E53

LABEL

€ 8.00

29

1196782000
ref: 29
E2

LABEL,ASBESTOS WARNING

€ 2.00

30

8693273060
ref: 30
E24

LABEL,FUEL CAUTION

€ 4.00
