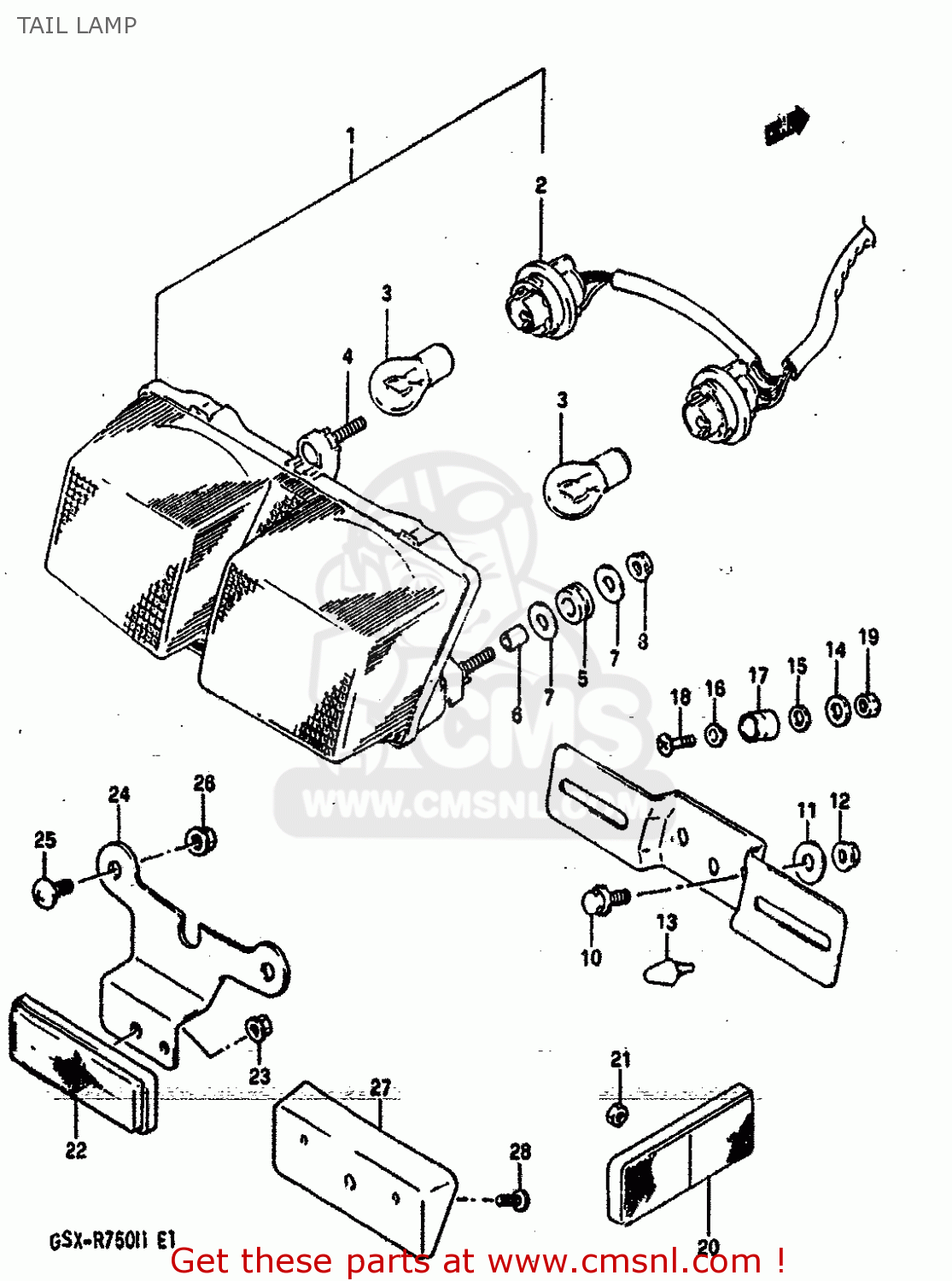

TAIL LAMP

ref

part #

description

quantity

1

3571018D00
ref: 1

LAMP ,RR COMBI

€ 149.50

2

3571841C00
ref: 2

SOCKET ASSEMBLY

€ 42.00

3

0947112083
ref: 3

BULB(12V21/5W)

€ 6.00

4

0110706307
ref: 4

BOLT 6X30

€ 2.50

5

0932008048
ref: 5

CUSHION

€ 3.00

6

0918006044
ref: 6

SPACER (6.1X8X9.5)

€ 2.50

7

0916006056
ref: 7

WASHER(6.5X18X1)

€ 2.00

8

0831626066
ref: 8

NUT

€ 2.00

9

3592717C00
ref: 9

BRACKET,LICENSE PLATE

€ 10.00

10

0151706164
ref: 10

BOLT

€ 2.50

11

0916006059
ref: 11

WASHER,COVER,FRONT

€ 2.00

12

0831626066
ref: 12

NUT

€ 2.00

13-1

0932106020
ref: 13-1

CUSHION

€ 2.00

13-2

0932106026
ref: 13-2
E15,E16,E17,E18,E22,

CUSHION

€ 3.50

13-3

0932106030
ref: 13-3
E21,E53

CUSHION

€ 3.00

14

0916006006
ref: 14
E15,E16,E17,E18,E22,

WASHER

€ 2.00

15

0916006069
ref: 15
E15,E16,E17,E18,E22,

WASHER

€ 2.00

16

0916006032
ref: 16
E15,E16,E17,E18,E22,

WASHER

€ 0.00

17

0932008057
ref: 17
E15,E16,E17,E18,E22,

CUSHION

€ 0.00

18

0214206164
ref: 18
E15,E16,E17,E18,E22,

SCREW

€ 2.50

19

0831921066
ref: 19
E15,E16,E17,E18,E22,

NUT

€ 2.00

20

3595043431
ref: 20
E39

REFLEX REFLECTOR,FR SIDE

€ 12.00

21

0831022055
ref: 21
E39

NUT 5MM

€ 2.00

22

3597000A21
ref: 22

REFLECTOR ASSEMBLY,REAR

€ 22.00

23

0831022055
ref: 23

NUT 5MM

€ 2.00

24-1

3597418D00
ref: 24-1

BRACKET,REAR,REAR

€ 3.50

24-2

3597418D10
ref: 24-2
E2,E34,E53

BRACKET,RR RR

€ 13.00

25

0214206125
ref: 25

SCREW 6X12

€ 2.00

26

0831626065
ref: 26

NUT

€ 2.00

27

3597718D00
ref: 27
E15,E16,E17,E18,E21,

SPACER,RR RR

€ 8.00

28

0354104125
ref: 28
E15,E16,E17,E18,E21,

SCREW

€ 1.50
