FRONT MASTER CYLINDER

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

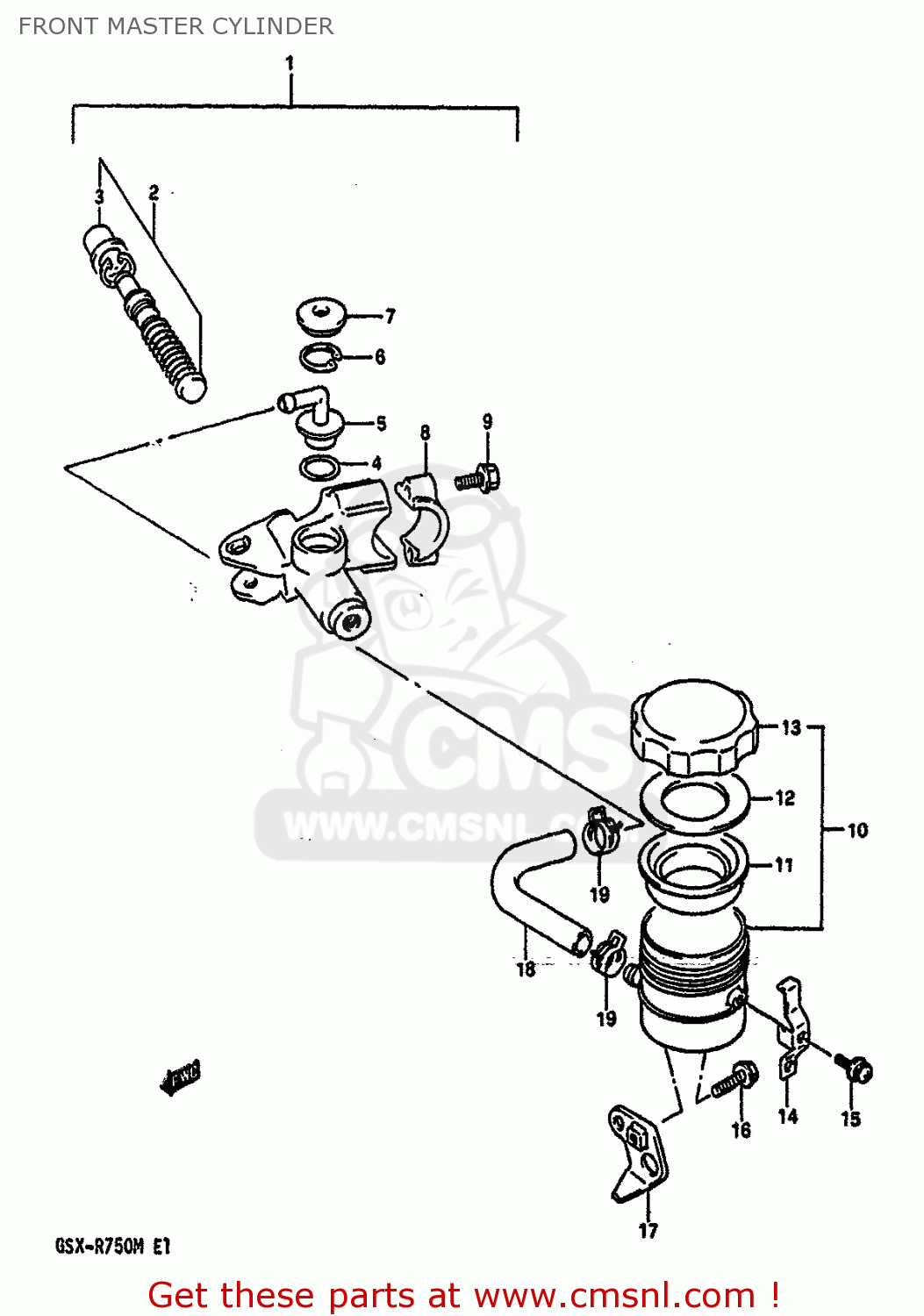

Front master cylinder diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

5960032C00
ref: 1

CYLINDER ASSEMBLY,FRONT MASTER

€ 263.00

5960045860
ref: 2

PISTON & CUP SET

€ 44.00

5966644300
ref: 3

BOOT

€ 6.00

6968634200
ref: 4

O RING

€ 3.50

5967217C00
ref: 5

CONNECTOR

€ 8.00

6967400B20
ref: 6

CIRCLIP

€ 3.00

5967317C00
ref: 7

COVER,DUST

€ 7.00

5967136500
ref: 8

HOLDER

€ 10.00

5967517C00
ref: 9

BOLT

€ 3.00

5974007D00
ref: 10

TANK ASSY,RESERVOIR

€ 67.00

5966718441
ref: 11

DIAPHRAGM

€ 8.50

5966818441
ref: 12

PLATE,DIAPHRAGM

€ 3.50

5966907D00
ref: 13

CAP

€ 16.50

5974317C00
ref: 14

PLATE,RESERVOIR TANK CAP

€ 8.00

0211274128
ref: 15

SCREW

€ 2.50

0151706167
ref: 16

BOLT 6X16

€ 1.50

5975017C00
ref: 17

BRACKET COMP,RESERVOIR

€ 6.00

5973117D00
ref: 18

HOSE,RESERVOIR TANK FR

€ 16.00

5973517C00
ref: 19

CLAMP,RESERVOIR TANK FR

€ 4.00

FRONT MASTER CYLINDER
