CARBURETOR (MODEL N/P E22)

RGV250 1994 (R) (E02 E04 E21 E24 E34)

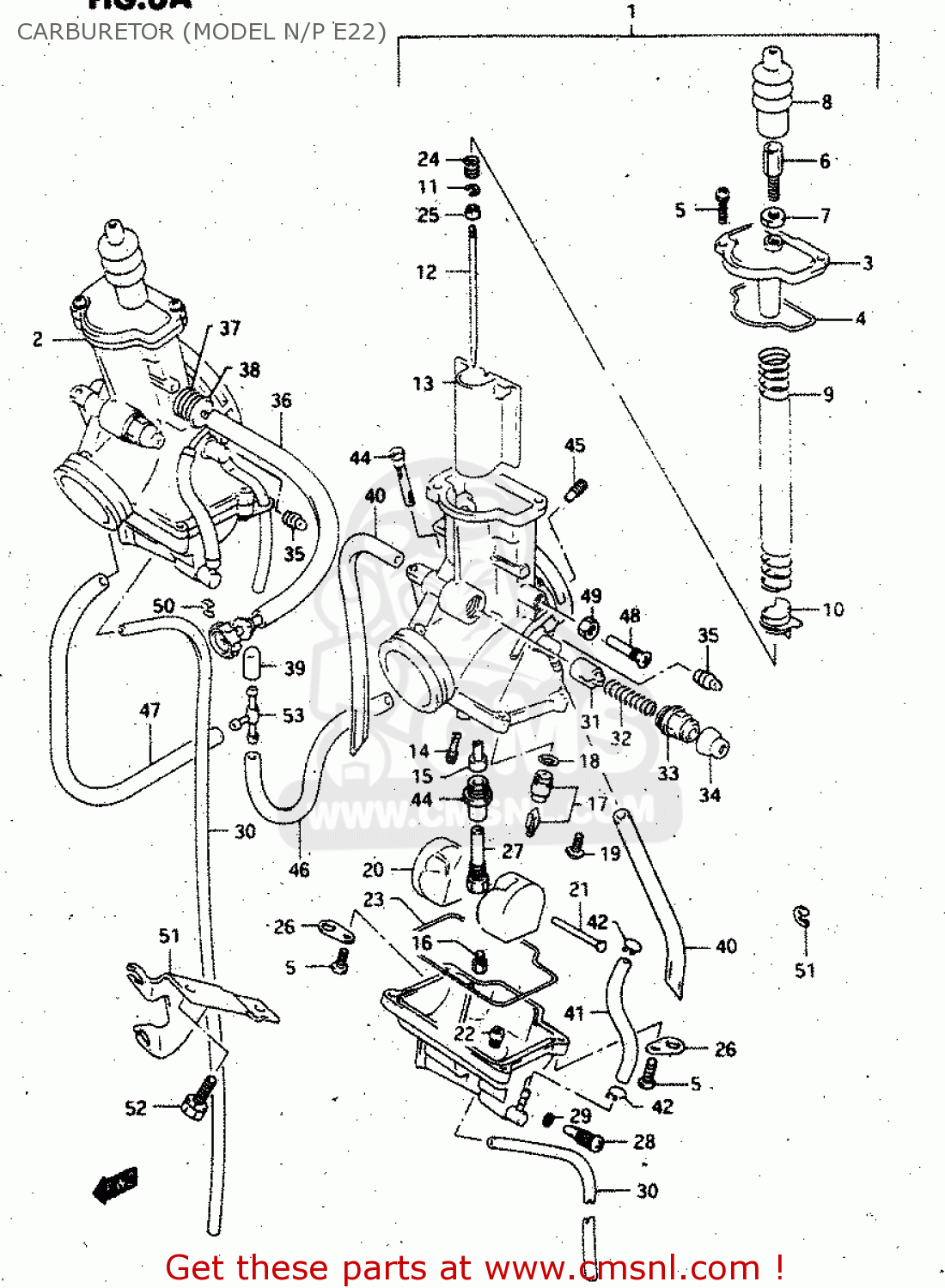

Carburetor (model n/p e22) diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)

CARBURETOR (MODEL N/P E22) RGV250 1994 (R) (E02 E04 E21 E24 E34)
CARBURETOR (MODEL N/P E22) RGV250 1994 (R) (E02 E04 E21 E24 E34)
CARBURETOR (MODEL N/P E22) RGV250 1994 (R) (E02 E04 E21 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1320122D70
ref: 1
CARBURETOR ASSY, LH
€ 0.00
2
1320222D70
ref: 2
CARBURETOR ASSY, RH
€ 0.00
3
1326122D00
ref: 3
CAP, TOP
€ 0.00
4
1325126C00
ref: 4
O RING,TOP CAP
1325126C00
€ 9.50
5
1360205A40
ref: 5
SCREW
1360205A40
€ 1.50
6
1357741612
ref: 6
ADJUSTER,CABLE
1357741612
€ 8.00
7
1366116600
ref: 7
NUT
1366116600
€ 5.00
8
1368141510
ref: 8
CAP,CABLE ADJUSTER
1368141510
€ 11.00
9
1357322D10
ref: 9
SPRING
€ 0.00
10
1338719D00
ref: 10
RING
€ 0.00
11
1339431210
ref: 11
CLIP,NEEDLE
1339431210
€ 3.50
12
1338322D70
ref: 12
NEEDLE, JET LH (6FL89-55-3)
€ 11.50
13
1355122D00
ref: 13
VALVE, PISTON (CA:1.5)
€ 0.00
14
0949222006
ref: 14
JET,PILOT(22.5)
0949222006
€ 7.50
15
0949400771
ref: 15
JET,NEEDLE
0949400771
€ 29.50
16
0949154002
ref: 16
JET,MAIN(270)
0949154002
€ 11.50
16
0949156003
ref: 16
JET,MAIN(280)
0949156003
€ 14.50
17
1337012C10
ref: 17
VALVE ASSY,NEE
€ 68.50
18
1337444080
ref: 18
O-RING,NEEDLE VALVE
1337444080
€ 6.00
19
1360243410
ref: 19
SCREW
1360243410
€ 2.50
20
1325012C00
ref: 20
FLOAT
1325012C00
€ 41.50
21
1325492311
ref: 21
PIN,FLOAT
1325492311
€ 2.00
22
0949145002
ref: 22
JET(45)
0949145002
€ 9.50
22
0949135012
ref: 22
JET,POWER(35)
0949135012
€ 11.50
23
1367212C00
ref: 23
GASKET,FLOAT CAHMBER (NAS)
1367212C00
€ 13.00
24
1326822D00
ref: 24
SPRING
€ 0.00
25
1338744030
ref: 25
RING
1338744030
€ 5.00
26
1369336500
ref: 26
PLATE,CARBURETOR
1369336500
€ 3.50
27
1338519D00
ref: 27
HOLDER, JET
1338519D00
€ 20.50
28
1324702340
ref: 28
PLUG,DRAIN
1324702340
€ 5.50
28
1324713A00
ref: 28
SCREW,DRAIN
1324713A00
€ 5.50
29
1327802340
ref: 29
O RING
1327802340
€ 1.50
30
1368440A00
ref: 30
L:650->475
HOSE(3X5X650)
1368440A00
€ 7.50
31
1341101010
ref: 31
PLUNGER,STARTER
1341101010
€ 14.00
32
1341737200
ref: 32
SPRING
1341737200
€ 3.00
33
1341843410
ref: 33
HOLDER,GUIDE
1341843410
€ 6.50
34
1368104010
ref: 34
CAP
1368104010
€ 3.00
35
1368822D20
ref: 35
CAP
€ 0.00
36
1326712C10
ref: 36
ADJUSTER,THROTTLE STOP
1326712C10
€ 43.00
37
1326812C00
ref: 37
SPRING
1326812C00
€ 6.00
38
1354712C00
ref: 38
WASHER
1354712C00
€ 7.00
39
1368822D10
ref: 39
CAP
€ 0.00
40
1368322D10
ref: 40
HOSE
€ 3.00
41
1321812C00
ref: 41
HOSE SET
1321812C00
€ 0.00
42
1367112C00
ref: 42
CLIP
€ 2.50
43
1345219D00
ref: 43
RING
€ 9.00
44
1323612C00
ref: 44
FILTER
1323612C00
€ 5.00
45
0949360004
ref: 45
JET,AIR(0.6)
0949360004
€ 11.00
45
0949370009
ref: 45
JET,MAIN AIR(0.7)
0949370009
€ 13.00
46
1368313A00
ref: 46
LH, L:250->125
HOSE
€ 12.50
47
1368313A00
ref: 47
RH, L:250->80
HOSE
€ 12.50
48
1324722D00
ref: 48
SCREW,ADJUSTER
1324722D00
€ 6.00
49
1360747070
ref: 49
NUT
1360747070
€ 4.00
50
1361712C00
ref: 50
E RING
1361712C00
€ 2.50
51
1362112C00
ref: 51
BRACKET,ADJUSTER
1362112C00
€ 19.00
52
0113706167
ref: 52
BOLT
€ 2.50
53
1368516720
ref: 53
3-WAY
€ 3.50
