WIRING HARNESS
RGV250 1994 (R) (E02 E04 E21 E24 E34)

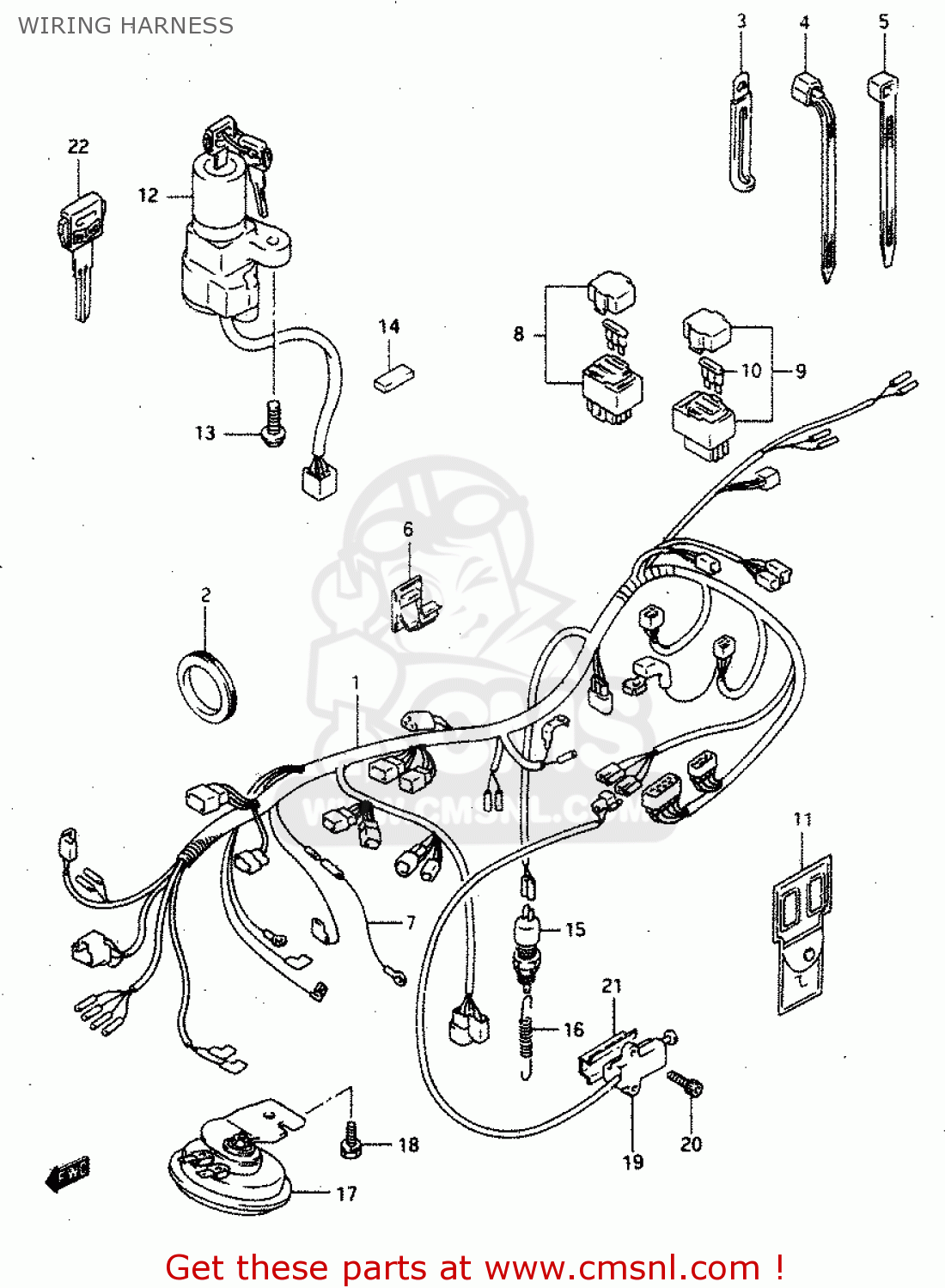

Wiring harness diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
WIRING HARNESS RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3661022D00
ref: 1
MODEL M
HARNESS, WIRING
€ 468.50
1
3661022D20
ref: 1
MODEL M/N, E2, E4, E
HARNESS,WIRING
€ 468.50
1
3661022D30
ref: 1
MODEL M E22
HARNESS,WIRING
€ 468.50
1
3661022D60
ref: 1
MODEL N E22
HARNESS, WIRING
€ 0.00
1
3661023D20
ref: 1
MODEL P
HARNESS,WIRING
€ 443.00
1
3661023D21
ref: 1
MODEL R/T
HARNESS, WIRING
€ 443.00
1
3661023D40
ref: 1
MODEL P E22
HARNESS, WIRING
€ 443.00
2
0932037001
ref: 2
GROMMET
€ 6.50
3
0940406402
ref: 3
CLAMP
€ 2.50
3
0940406429
ref: 3
CLAMP(L:45)
€ 2.50
3
0940406415
ref: 3
CLAMP
€ 3.00
3
0940406433
ref: 3
CLAMP(L:80)
€ 3.00
3
0940406420
ref: 3
CLAMP
€ 2.50
3
0940406435
ref: 3
CLAMP(L:135)
€ 2.50
3
0940408405
ref: 3
CLAMP
€ 3.50
3
0940408418
ref: 3
CLAMP(L:65)
€ 3.50
4
0940714403
ref: 4
CLAMP(L:125)
€ 2.50
4
0940711401
ref: 4
CLAMP(L:95)
€ 2.50
4
0940718403
ref: 4
CLAMP L:165
€ 2.50
5
0940710403
ref: 5
CLAMP(L:95)
€ 2.50
6
0940800098
ref: 6
CLAMP
€ 5.50
7
3685102900
ref: 7
WIRE,LEAD
€ 4.00
8
3674022D00
ref: 8
CASE ASSY, FUSE NO.2
€ 15.00
9
3674012C01
ref: 9
MODEL M/N
BOX ASSY, FUSE
€ 20.00
9
3674023D00
ref: 9
MODEL P/R/T
BOX ASSY, FUSE
€ 20.00
10
0948120101
ref: 10
FUSE(20A)
€ 2.00
10
0948105101
ref: 10
FUSE(5A)
€ 1.50
11
3673822D00
ref: 11
MODEL M/N
FUSE SET,SPARE
€ 16.50
11
3673822D01
ref: 11
MODEL P/R/T
BACK, SPARE FUSE
€ 16.50
12
3710012C03
ref: 12
MODEL L/M
LOCK ASSY, STEERING
€ 133.00
12
3710012C04
ref: 12
MODEL N
LOCK ASSY, STEERING
€ 133.00
12
3710022D00
ref: 12
MODEL P
LOCK ASSY,STEE
€ 127.00
12
3710022D01
ref: 12
MODEL R
LOCK ASSY, STEERING
€ 127.00
12
3710022D11
ref: 12
MODEL T
LOCK ASSY, STEERING
€ 104.00
13
0913906026
ref: 13
SCREW(6X18)
€ 2.50
14
3365137000
ref: 14
<-33652-22D00
PROTECTOR(170X95X3.0)
€ 5.00
15
3774024A00
ref: 15
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306012
ref: 16
SPRING
€ 3.00
17
3850022D00
ref: 17
HORN ASSY
€ 43.00
17
3850022D20
ref: 17
E2, E4, E21, E22, E2
HORN ASSY
€ 54.00
18
0113406125
ref: 18
MODEL M/N/P
BOLT ,6X12
€ 1.50
18
0157006123
ref: 18
MODEL R
BOLT
€ 1.50
19
3784032C01
ref: 19
SWITCH ASSY,SIDE STAND WARNING
€ 67.50
20
0910606055
ref: 20
MODEL M/N/P
BOLT
€ 2.50
20
0713006123
ref: 20
MODEL R/T
BOLT,STRANGER
€ 2.50
21
3784122D00
ref: 21
E22
SHEET,HEAT PROTECTION
€ 0.00
22
3714626D10
ref: 22
OPT, <-37146-03A80
KEY,BLANK
€ 41.50
