Buy Suzuki RGV Parts Online
home
FUEL COCK
RGV250 1994 (R) (E02 E04 E21 E24 E34)

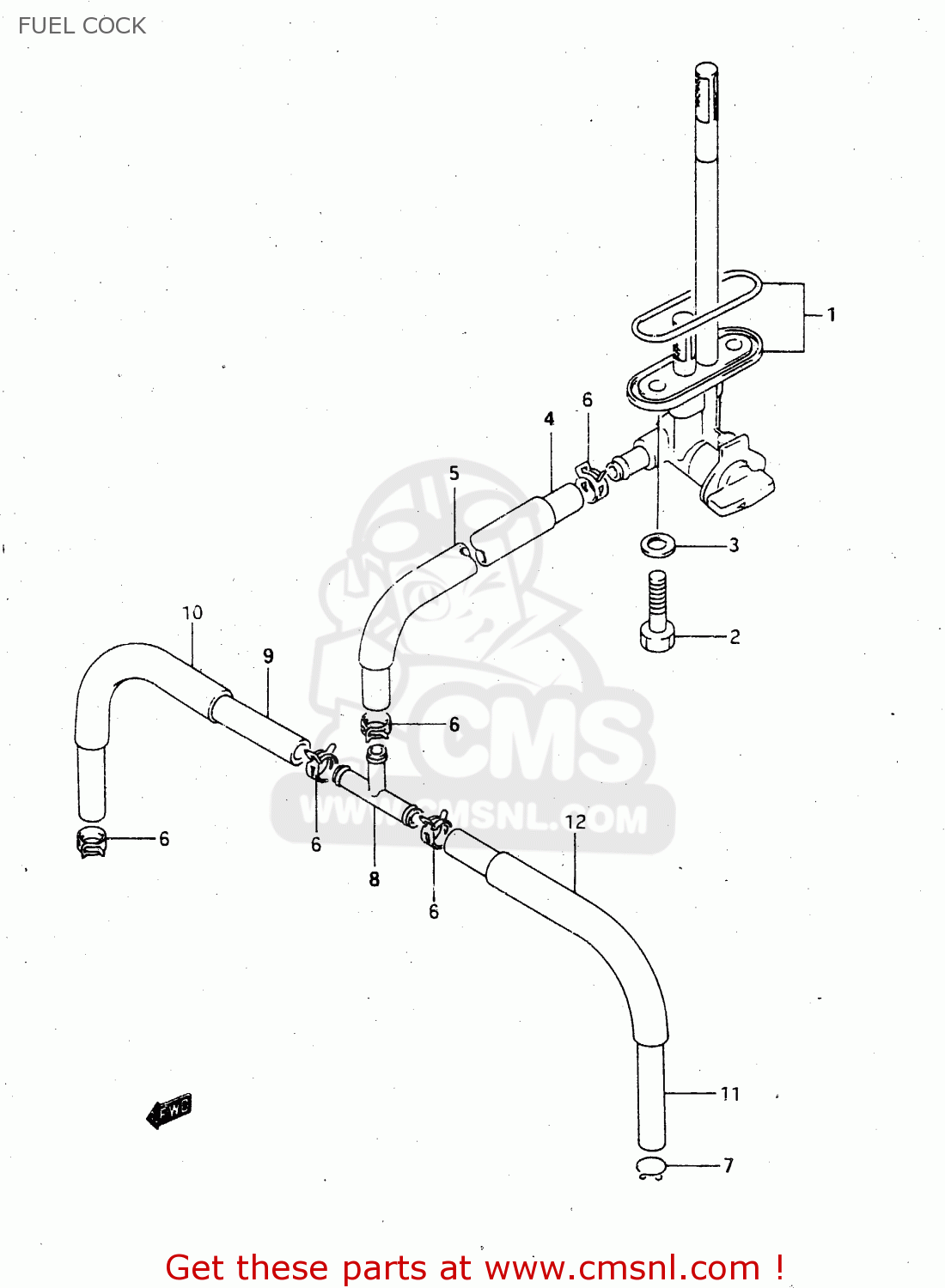

Fuel cock diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
FUEL COCK RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
4430022D00
ref: 1
MODEL M/N/P/R
COCK ASSEMBLY,FUEL
€ 88.50
1
4430022D02
ref: 1
MODEL T
COCK ASSY,FUEL
€ 88.50
2
0912806006
ref: 2
MODEL M/N/P/R
BOLT(6X20)
€ 2.00
2
0912806057
ref: 2
MODEL T
BOLT(6X20)
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0935470113600
ref: 4
L:600->240
HOSE(7X11X600)
€ 17.50
5
0935213162600
ref: 5
L:600->215
HOSE(13.5X16.5X600)
€ 14.50
6
0940110409
ref: 6
CLIP
€ 2.50
7
0940112403
ref: 7
CLIP
€ 2.00
8
0936708004
ref: 8
3-WAY [FILTER TO PUMP)
€ 4.50
9
0935470113600
ref: 9
RH L:600->150
HOSE(7X11X600)
€ 17.50
10
0935213162600
ref: 10
RH L:600->90
HOSE(13.5X16.5X600)
€ 14.50
11
0935470113600
ref: 11
LH L:600->220
HOSE(7X11X600)
€ 17.50
12
0935213162600
ref: 12
LH L:600->160
HOSE(13.5X16.5X600)
€ 14.50
