EXHAUST VALVE
RGV250 1994 (R) (E02 E04 E21 E24 E34)

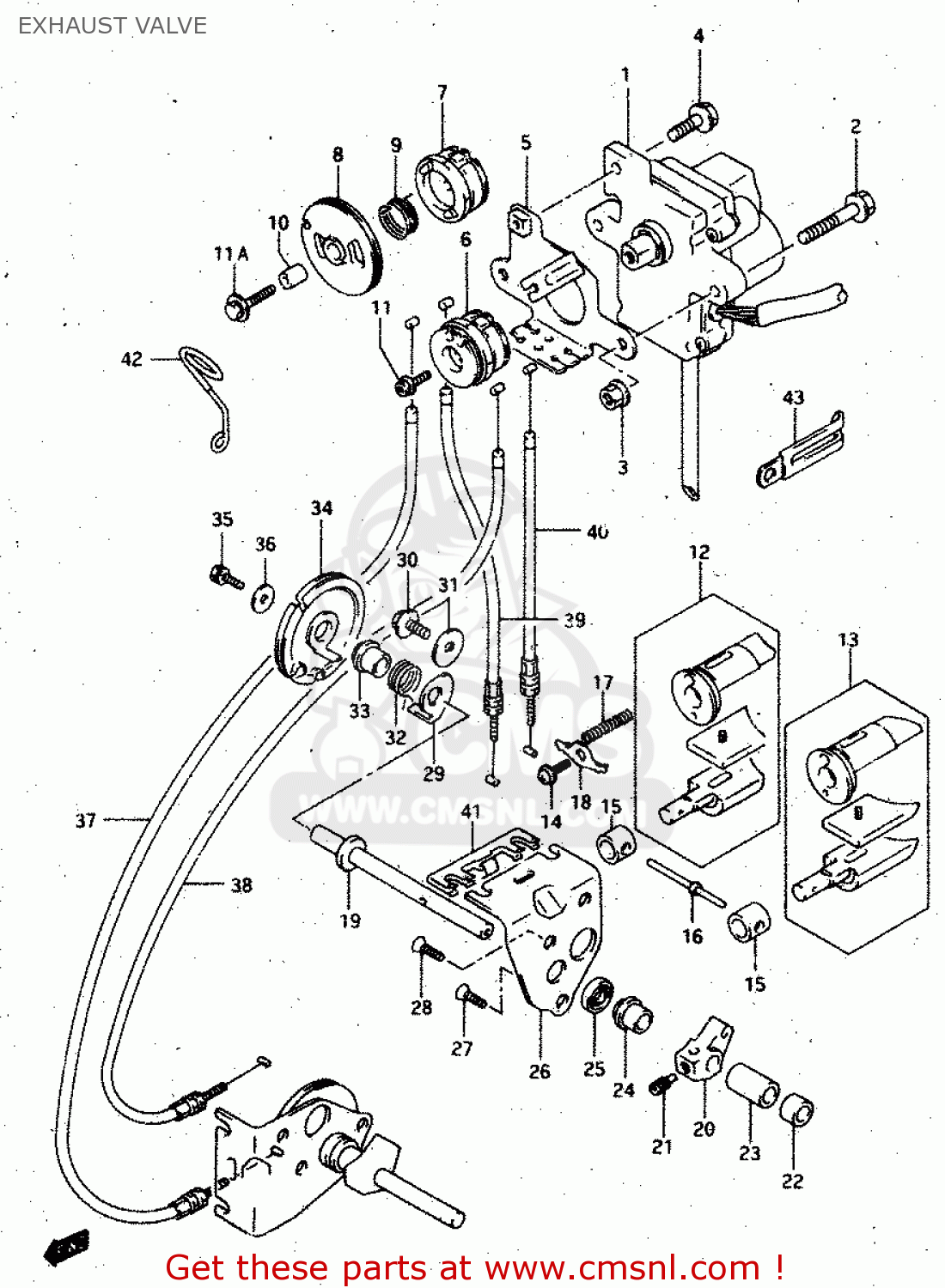

Exhaust valve diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
EXHAUST VALVE RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3397022X50
ref: 1
ACTUATOR ASSY
€ 373.00
2
0155006303
ref: 2
BOLT
€ 2.50
3
0831610063
ref: 3
NUT
€ 2.50
4
0154706163
ref: 4
BOLT
€ 2.50
5
1128612C01
ref: 5
MODEL M
BRACKET, CABLE
€ 19.50
5
1128622D10
ref: 5
MODEL N/P/R/T
BRACKET,CABLE
€ 26.00
6
1126912C02
ref: 6
MODEL M
PULLEY, CONTROLLER
€ 20.00
7
1126922D00
ref: 7
MODEL N/P/R/T
PULLEY,CONTROLLER
€ 34.00
8
1661122D10
ref: 8
MODEL N/P/R/T
PULLEY,CONTROLLER NO.2
€ 48.00
9
1661322D00
ref: 9
MODEL N/P/R/T
SPRING
€ 7.50
10
0918005043
ref: 10
MODEL N/P/R/T
SPACER
€ 7.00
11
0712005168
ref: 11
MODEL M
BOLT
€ 1.50
11A
0911805004
ref: 11A
MODEL N/P/R/T
BOLT(5X30)
€ 3.00
12
1125019810
ref: 12
MODEL M/N/P
VALVE SET,EXHAUST,R
€ 234.50
12
1125019830
ref: 12
MODEL M/N/P E22
VALVE SET,EXHAUST,R
€ 182.50
12
1120619D31
ref: 12
MODEL R/T
VALVE ASSY,EXHAUST,R
€ 228.50
13
1125019820
ref: 13
MODEL M/N/P
VALVE SET,EXHAUST,L
€ 233.50
13
1125019840
ref: 13
MODEL M/N/P E22
VALVE SET,EXHAUST,L
€ 173.50
13
1120719D31
ref: 13
MODEL R/T
VALVE ASSY,EXHAUST,L
€ 182.50
14
0214215127
ref: 14
MODEL M/N/P
SCREW
€ 1.50
14
0214205123
ref: 14
MODEL R/T
SCREW 5X12
€ 1.50
15
1126312C01
ref: 15
MODEL M/N/P
SPACER,EXHAUST VALVE
€ 29.50
15
1126308D11
ref: 15
MODEL R/T
SPACER,EXHAUST VALVE
€ 13.00
16
1125301B31
ref: 16
PIN,EXHAUST VALVE 48.5MM
€ 20.50
17
0944003010
ref: 17
SPRING
€ 4.00
18
1127422D01
ref: 18
RETAINER,EXHAUST VALVE SPRING
€ 8.50
19
1125812C02
ref: 19
SHAFT,EXHAUST VALVE
€ 54.50
20
1126400B23
ref: 20
ARM,EXHAUST VALVE SHAFT
€ 17.00
21
0913406013
ref: 21
SCREW(6X10)
€ 4.50
22
0930008016
ref: 22
INCLUDED CYLINDER
BUSH(8X12X7)
€ 3.50
23
1128312C00
ref: 23
SPACER,EXHAUST VALVE SHAFT
€ 5.50
24
1126512C00
ref: 24
BUSH,EXHAUST VALVE NO.2
€ 8.50
25
0928208001
ref: 25
MODEL M/N/P
SEAL,OIL(8X16X5)
€ 3.00
25
0928208004
ref: 25
MODEL R/T
SEAL,OIL(8X16X5)
€ 7.50
26
1125922D01
ref: 26
RETAINER,OIL SEAL
€ 15.50
27
0212206127
ref: 27
MODEL M/N/P
SCREW
€ 3.00
27
0212206123
ref: 27
MODEL R/T
SCREW
€ 3.00
28
0912606011
ref: 28
SCREW(6X12)
€ 2.00
29
1126712C02
ref: 29
LEVER,EXHAUST VALVE
€ 11.50
30
0912506058
ref: 30
SCREW (6X10)
€ 5.50
31
0821106222
ref: 31
WASHER
€ 2.00
32
1128522D00
ref: 32
SPRING,EXHAUST VALVE LEVER
€ 7.00
33
1126822D03
ref: 33
SPACER,EXHAUST VALVE PULLEY
€ 15.50
34
1126622D01
ref: 34
PULLEY,EXHAUST VALVE
€ 50.50
35
0113705128
ref: 35
MODEL M/N/P
BOLT
€ 2.00
35
0911805005
ref: 35
MODEL R/T
BOLT(5X12)
€ 4.00
36
0916005005
ref: 36
WASHER (5.5X24X1.6)
€ 2.00
37
1127612C02
ref: 37
L:573
CABLE,EXHAUST VALVE FR,R
€ 17.50
38
1127812C00
ref: 38
L:523
CABLE,EXHAUST VALVE FR,L
€ 17.50
39
1127722D01
ref: 39
L:211
CABLE,EXHAUST VALVE RR,R
€ 10.50
40
1127922D01
ref: 40
L:223
CABLE,EXHAUST VALVE RR,L
€ 12.00
41
1128412C00
ref: 41
STOPPER,CABLE
€ 8.50
42
1127522D01
ref: 42
GUIDE,EXHAUST VALVE CABLE
€ 7.50
43
0940406403
ref: 43
MODEL M
CLAMP
€ 2.50
