HANDLE BAR
RGV250 1994 (R) (E02 E04 E21 E24 E34)

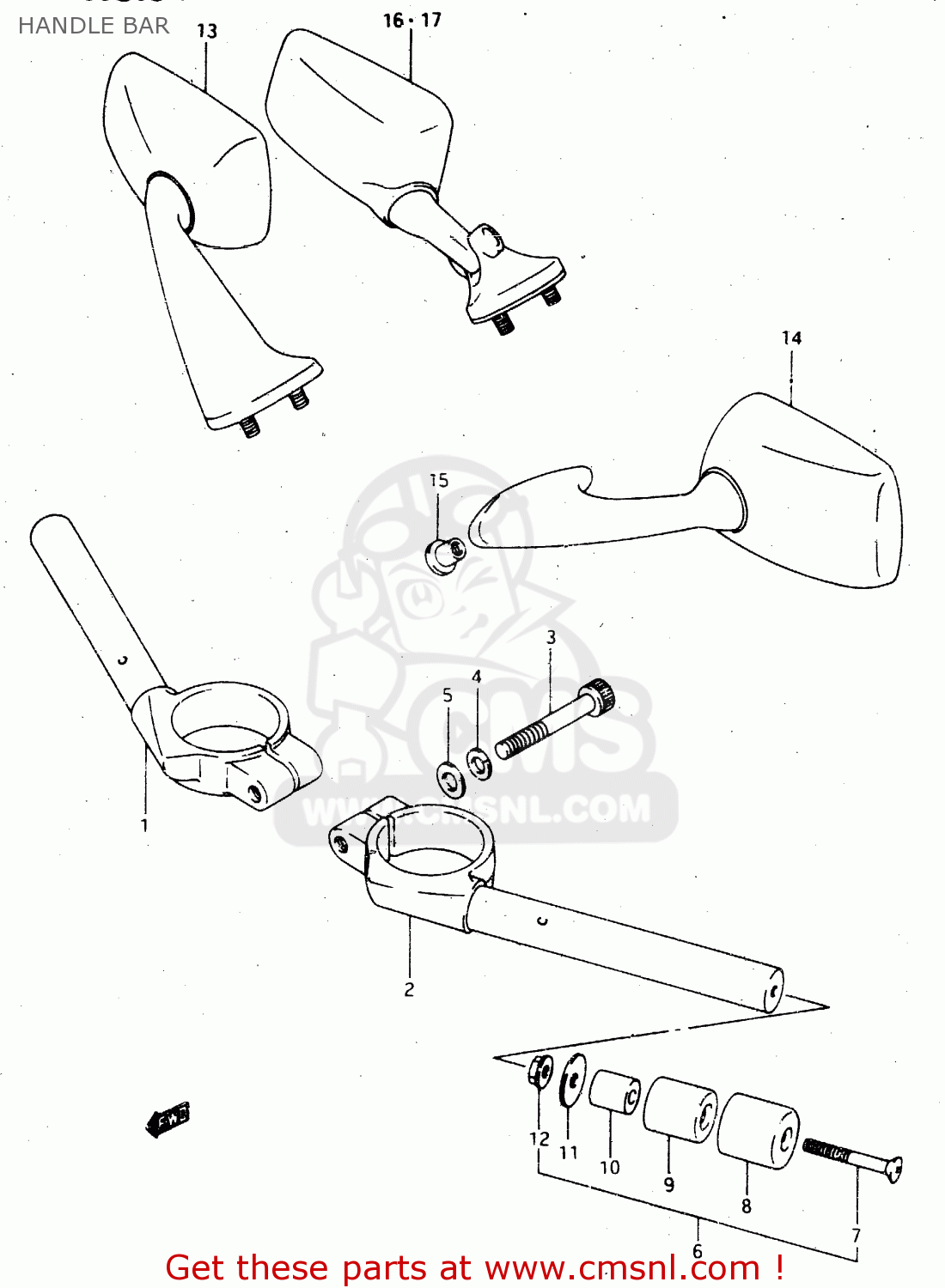

Handle bar diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
HANDLE BAR RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
5611022D01
ref: 1
HANDLEBAR,R
€ 152.00
2
5615022D01
ref: 2
HANDLEBAR,L
€ 139.00
3
0713008457
ref: 3
MODEL M/N/P/R
BOLT
€ 3.00
3
0713008453
ref: 3
MODEL T
BOLT
€ 3.00
4
0832101087
ref: 4
MODEL M/N/P
WASHER,LOCK
€ 2.00
4
0832101083
ref: 4
MODEL R/T
LOCK WASHER
€ 2.50
5
0832201087
ref: 5
MODEL M/N/P
WASHER
€ 2.00
5
0832201083
ref: 5
MODEL R/T
WASHER
€ 1.50
6
5620011810
ref: 6
MODEL M/N
BALANCER SET, HANDLE BAR
€ 98.00
6
5620036810
ref: 6
MODEL N, F.NO.JA22A-
BALANCER SET,HANDLEBAR
€ 88.00
6
5620012810
ref: 6
MODEL P, F.NO.VJ22A-
BALANCER SET,HANDLEBAR
€ 88.00
6
5620012811
ref: 6
MODEL T
BALANCER SET,HANDLEBAR
€ 88.00
7
0212206657
ref: 7
MODEL M/N
SCREW
€ 2.00
7
0213206655
ref: 7
MODEL N, F.NO.JA22A-
SCREW 6X65
€ 2.50
7
0212206653
ref: 7
MODEL P, F.NO.VJ22A-
SCREW
€ 2.50
8
5627412C00
ref: 8
MODEL M/N
CAP,BALANCER
€ 83.00
8
5627405350
ref: 8
MODEL N, F.NO.JA22A-
CAP,BALANCER
€ 223.50
8
5627431300
ref: 8
CAP,BALANCER
€ 223.50
9
5627149420
ref: 9
BALANCER,HANDLE
€ 19.50
10
5627244500
ref: 10
EXPANDER,HANDLE BALANCER
€ 3.00
11
5627534400
ref: 11
MODEL M/N/P/R
SPACER,BALANCER
€ 2.50
11
5627534401
ref: 11
MODEL T
SPACER,BALANCER
€ 2.50
12
0915906024
ref: 12
NUT
€ 2.00
13
5650022D00
ref: 13
E1
MIRROR ASSY R.
€ 105.00
14
5660022D00
ref: 14
E1
MIRROR, L.
€ 81.50
15
5661912C00
ref: 15
NUT,RR VIEW MIRROR
€ 8.00
16
5650022D11
ref: 16
E2, E4, E21, E22, E2
MIRROR ASSY,RR VIEW,R
€ 247.50
17
5660022D11
ref: 17
E2, E4, E21, E22, E2
MIRROR ASSY,RR VIEW,L
€ 218.00
