GEAR SHIFTING
RGV250 1994 (R) (E02 E04 E21 E24 E34)

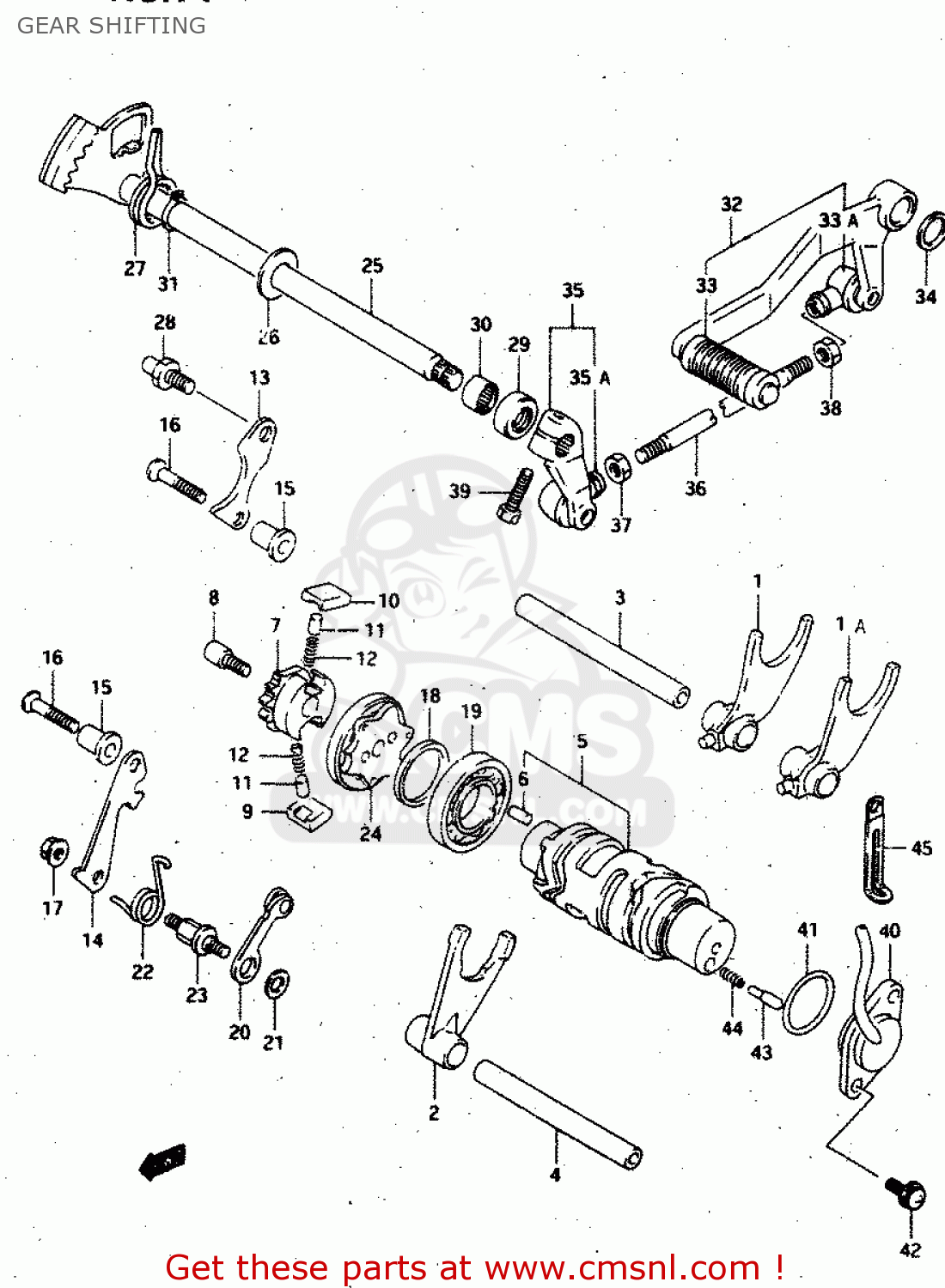

Gear shifting diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
GEAR SHIFTING RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
2521113A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 85.00
1A
2521122D00
ref: 1A
FORK,GEAR SHIFT NO.2
€ 69.50
2
2523122D30
ref: 2
FORK,GEAR SHIFT NO.3
€ 80.50
3
2541116701
ref: 3
MODEL M/N
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
3
2541105200
ref: 3
MODEL P
SHAFT,GEAR SHIFT FORK
€ 11.50
3
2541105201
ref: 3
MODEL R/T
SHAFT,GEAR SHIFT FORK
€ 11.50
4
2541114310
ref: 4
MODEL M/N/P
SHAFT,GEAR SHIFT FORK
€ 14.50
4
2541114311
ref: 4
MODEL R/T
SHAFT,GEAR SHIFT FORK
€ 14.50
5
2531012C00
ref: 5
CAM,GEAR SHIFT
€ 146.50
6
0422104089
ref: 6
PIN
€ 1.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2531212C00
ref: 8
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
€ 6.00
11
0926105003
ref: 11
PIN(5X8)
€ 1.50
12
0944004003
ref: 12
SPRING
€ 1.50
13
2533112C00
ref: 13
LIFTER,GEAR SHIFT POLE
€ 3.50
14
2534112C00
ref: 14
GUIDE,GEAR SHIFT CAM
€ 8.50
15
0918006202
ref: 15
SPACER(6.1X10X16)
€ 4.00
16
0212206308
ref: 16
MODEL M/N/P
SCREW
€ 2.00
16
0212206303
ref: 16
MODEL R/T
SCREW
€ 2.00
17
0915906017
ref: 17
MODEL M/N/P
NUT
€ 2.50
17
0831610063
ref: 17
MODEL R/T
NUT
€ 2.50
18
0916025059
ref: 18
WASHER(25X32X3)
€ 5.00
19
0926225002
ref: 19
MODEL M/N/P
BEARING
€ 24.00
19
0926225006
ref: 19
MODEL R/T
BEARING(25X47X8)
€ 24.00
20
2535012C00
ref: 20
STOPPER,SHIFT CAM
€ 10.00
21
0821106141
ref: 21
WASHER
€ 2.50
22
2535512C00
ref: 22
SPRING, STOPPE
€ 3.50
23
2535612C00
ref: 23
SUPPORT,CAM STOPPER ARM
€ 9.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
€ 15.00
25
2551022D01
ref: 25
SHAFT,GEAR SHIFT
€ 76.00
26
0821114221
ref: 26
WASHER,THRUST
€ 3.50
27
0944420001
ref: 27
SPRING
€ 5.00
28
2567136A00
ref: 28
STOPPER,GEAR SHIFT ARM
€ 3.00
29
0928314006
ref: 29
SEAL,OIL(14X22X6)
€ 6.50
30
0926314027
ref: 30
<-09263-14028
BEARING(14X20X12)
€ 11.00
31
0833131146
ref: 31
CIRCLIP
€ 2.00
32
2560022D00
ref: 32
MODEL M
LEVER ASSY, GEAR SHIFT
€ 131.00
32
2560006C00
ref: 32
MODEL N/P/R/T
LEVER ASSY,GEAR SHIFT
€ 131.00
33
2565220C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33A
2552647000
ref: 33A
COVER,DUST
€ 3.50
34
0916418005
ref: 34
WASHER
€ 3.00
35
2552032C00
ref: 35
ARM,GEAR SHIFT LINK
€ 46.00
35A
2552647000
ref: 35A
COVER,DUST
€ 3.50
36
2552522D01
ref: 36
ROD,GEAR SHIFT LINK
€ 52.50
37
0831011068
ref: 37
MODEL M/N/P
NUT
€ 2.50
37
0831000063
ref: 37
MODEL R/T
NUT 6MM
€ 2.00
38
0914006011
ref: 38
NUT
€ 1.50
39
0110706207
ref: 39
MODEL M/N/P
BOLT
€ 2.00
39
0150006203
ref: 39
MODEL R/T
BOLT
€ 2.00
40
3772012C01
ref: 40
BASE ASSY,NEUTRAL SW
€ 42.00
40
3773022D00
ref: 40
MODEL N/P E22
BASE,SHIFT TER
€ 94.00
41
0928026003
ref: 41
O-RING (D:2.4 ID:26.2)
€ 2.50
42
0211275165
ref: 42
MODEL M/N/P
SCREW
€ 2.50
42
0211275163
ref: 42
MODEL R/T
SCREW
€ 2.50
42
0211205164
ref: 42
MODEL N/P E22
SCREW
€ 2.00
43
0920905011
ref: 43
PIN(5X15.5)
€ 2.00
44
0944004010
ref: 44
SPRING
€ 1.50
45
0940406402
ref: 45
CLAMP
€ 2.50
45
0940406429
ref: 45
CLAMP(L:45)
€ 2.50
