RADIATOR

RGV250 1994 (R) (E02 E04 E21 E24 E34)

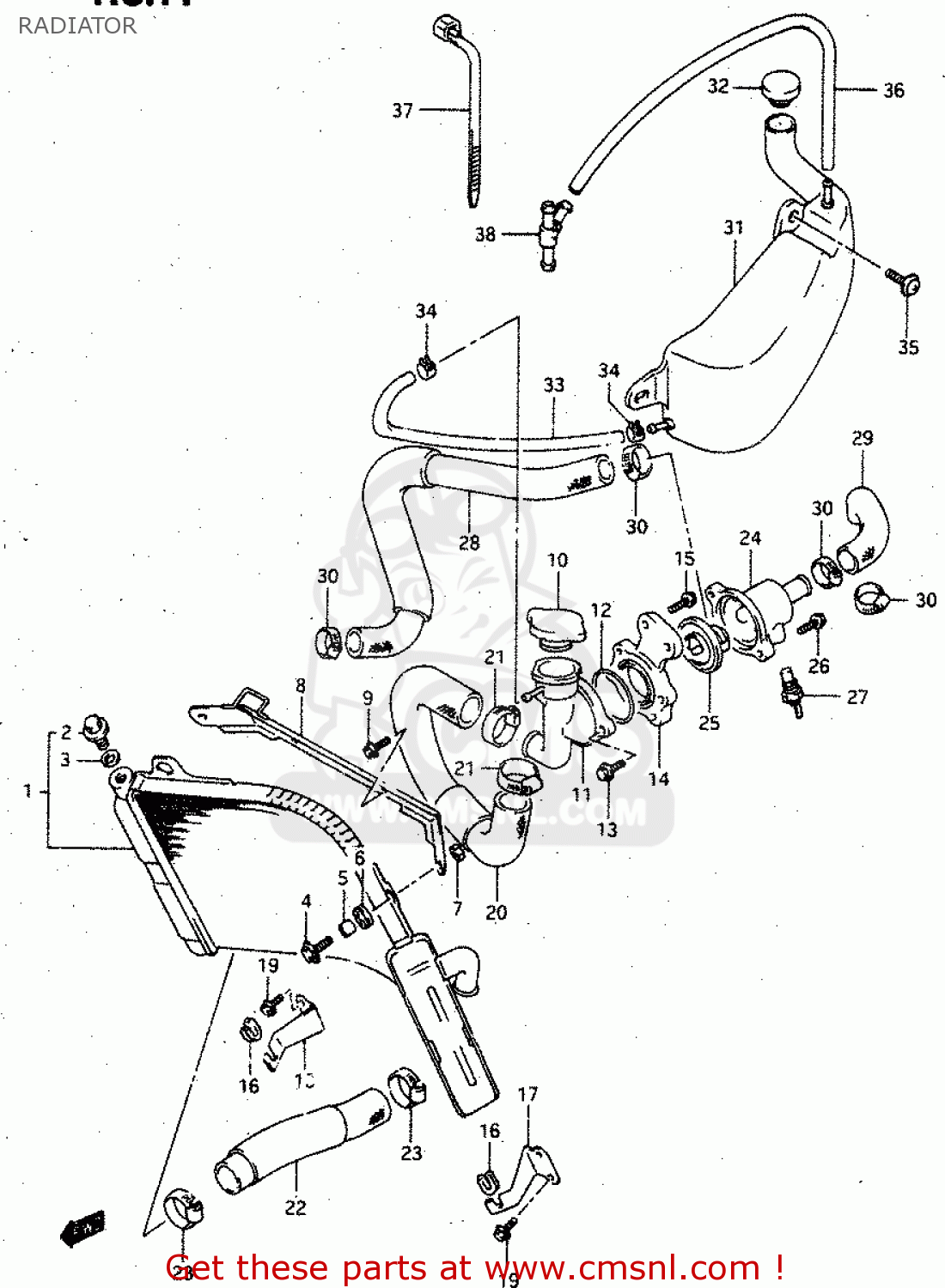

Radiator diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)

RADIATOR RGV250 1994 (R) (E02 E04 E21 E24 E34)
RADIATOR RGV250 1994 (R) (E02 E04 E21 E24 E34)
RADIATOR RGV250 1994 (R) (E02 E04 E21 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1771022D00
ref: 1
RADIATOR ASSY,WATER
1771022D00
€ 843.50
2
1771838405
ref: 2
PLUG
1771838405
€ 9.00
3
1775963210
ref: 3
GASKET
1775963210
€ 1.50
4
0911606143
ref: 4
BOLT 6X20
0911606143
€ 2.00
5
0918006030
ref: 5
SPACER (6.8X10X10)
0918006030
€ 2.00
6
0932010015
ref: 6
CUSHION
0932010015
€ 2.50
7
0831616064
ref: 7
MODEL M/N/P
NUT 6MM
0831616064
€ 2.50
7
0831610063
ref: 7
MODEL R/T
NUT
0831610063
€ 2.50
8
1774022D01
ref: 8
BRACKET,RADIATOR UPR
€ 25.00
9
0117406165
ref: 9
MODEL M/N/P
BOLT
€ 2.50
9
0158006123
ref: 9
MODEL R/T
BOLT
€ 2.00
10
1773020930
ref: 10
MODEL M/N/P
CAP,RADIATOR 1.1
1773020930
€ 40.00
10
1773012C01
ref: 10
MODEL R/T
CAP,RADIATOR
1773012C01
€ 40.00
11
1779132C00
ref: 11
CONDUCTION,RADIATOR
1779132C00
€ 133.50
12
0928044005
ref: 12
O RING(D:2.4,ID:43.2)
0928044005
€ 4.00
13
0151706167
ref: 13
MODEL M/N/P
BOLT 6X16
0151706167
€ 1.50
13
0155006163
ref: 13
MODEL R/T
BOLT
0155006163
€ 2.50
14
1779212C00
ref: 14
BRACKET,CONDUCTION
1779212C00
€ 59.50
15
0151706307
ref: 15
MODEL M/N/P
BOLT
0151706307
€ 2.00
15
0155006303
ref: 15
MODEL R/T
BOLT
0155006303
€ 2.50
16
1662827A00
ref: 16
CUSHION,OIL COOLER NO.2
1662827A00
€ 3.00
17
1774222D00
ref: 17
BRACKET,RADIATOR UPR,L
1774222D00
€ 10.00
18
1774122D00
ref: 18
BRACKET,RADIATOR LWR,R
1774122D00
€ 10.50
19
0151706164
ref: 19
MODEL M/N/P
BOLT
€ 2.50
19
0155006163
ref: 19
MODEL R/T
BOLT
0155006163
€ 2.50
20
1785122D00
ref: 20
HOSE,RADIATOR INLET
1785122D00
€ 24.00
21
0940230502
ref: 21
MODEL M/N/P
CLAMP
€ 11.50
21
0940238511
ref: 21
MODEL R/T
CLAMP
0940238511
€ 10.50
22
1785222D00
ref: 22
HOSE,RADIATOR OUTLET
1785222D00
€ 18.50
23
0940232502
ref: 23
MODEL M/N/P
CLAMP
0940232502
€ 11.50
23
0940238511
ref: 23
MODEL R/T
CLAMP
0940238511
€ 10.50
24
1766212C01
ref: 24
CONNECTOR,THERMOSTAT INLET
1766212C01
€ 40.00
25
1767012C00
ref: 25
THERMOSTAT,WATER
1767012C00
€ 37.50
26
0151706207
ref: 26
MODEL M/N/P
BOLT 6X20
€ 2.50
26
0155006203
ref: 26
MODEL R/T
BOLT
0155006203
€ 2.50
27
3485082012
ref: 27
GAUGE,WATER,TM
€ 82.50
28
1785312C02
ref: 28
MODEL M
HOSE, RADIATOR JOINT NO.1
€ 30.00
28
1785312C03
ref: 28
MODEL N/P/R
HOSE,RADIATOR JOINT NO.1
1785312C03
€ 30.00
29
1785412C00
ref: 29
HOSE,RADIATOR JOINT NO.2
1785412C00
€ 11.50
30
0940228511
ref: 30
CLAMP
0940228511
€ 8.50
31
1791022D00
ref: 31
MODEL M
TANK ASSY, RESERVOIR
€ 39.00
31
1791022D10
ref: 31
MODEL N/P/R/T
TANK ASSY, RESERVOIR
€ 38.00
32
1793212C00
ref: 32
CAP,RESERVOIR TANK
1793212C00
€ 3.50
33
1798112C00
ref: 33
MODEL M
HOSE,RESERVOIR TANK INLET
€ 27.00
33
1798133C00
ref: 33
MODEL N/P
HOSE,RESERVOIR TANK INLET
€ 19.50
33
1798217E00
ref: 33
MODEL R
HOSE,RESERVOIR TANK OVERFLOW
€ 19.50
33
1798121E00
ref: 33
MODEL T
HOSE,RESERVOIR TANK INLET
€ 19.50
34
0940108407
ref: 34
MODEL M/N/P
CLIP
€ 3.00
34
0940108411
ref: 34
MODEL R/T
CLIP
0940108411
€ 3.00
35
0913606009
ref: 35
SCREW(6X20)
0913606009
€ 2.50
36
0935250901600
ref: 36
L:600->370
HOSE(5X9X600)
0935250901600
€ 6.50
37
0940722404
ref: 37
CLAMP
0940722404
€ 2.50
38
0936706005
ref: 38
3 WAY
0936706005
€ 6.00
