RGV250 1994 (R) (E02 E04 E21 E24 E34)

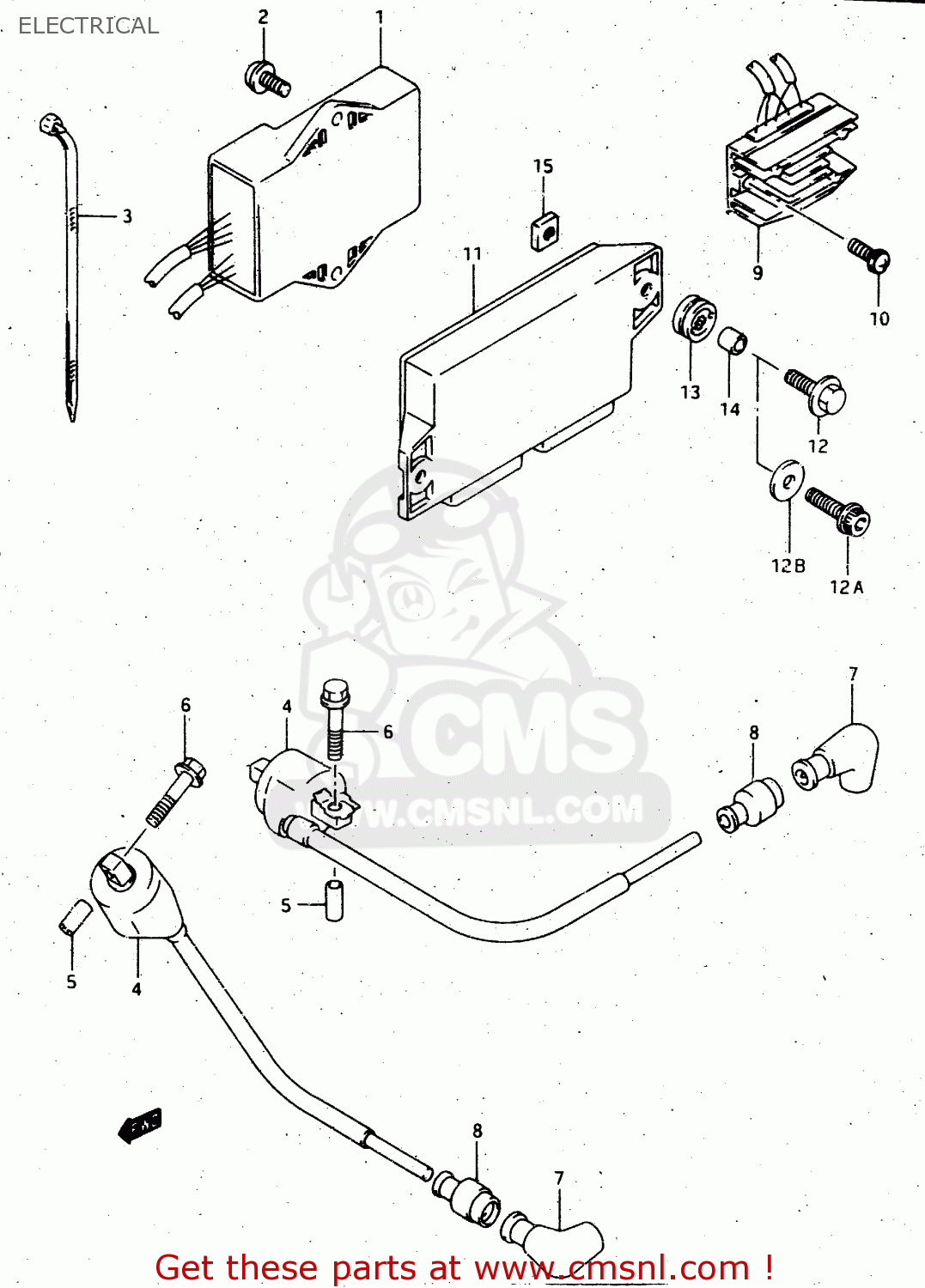

Electrical diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
ELECTRICAL RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3290022D01
ref: 1
<-32900-12C10
CDI UNIT
€ 504.00
2
0211216166
ref: 2
MODEL M/N/P
SCREW
€ 2.50
2
0214206163
ref: 2
MODEL R/T
SCREW
€ 2.50
3
0940718402
ref: 3
CLAMP(L:165)
€ 2.50
4
3341012C00
ref: 4
COIL ASSY,IGNITION NO.1
€ 123.00
5
0918006190
ref: 5
SPACER
€ 4.50
6
0151706458
ref: 6
MODEL M/N/P
BOLT,UNDER
€ 2.50
6
0155006457
ref: 6
MODEL R/T
BOLT
€ 2.50
7
3351020A00
ref: 7
CAP,SPARK PLUG
€ 23.00
8
3354238B00
ref: 8
SEAL,HIGH TENSION CORD
€ 4.50
9
3280022D00
ref: 9
RECTIFIER ASSY
€ 368.00
10
0211236256
ref: 10
MODEL M/N/P
SCREW
€ 2.50
10
0214206253
ref: 10
MODEL R/T
SCREW
€ 1.50
11
3291022D10
ref: 11
CONTROL UNIT
€ 498.00
11
3291022D30
ref: 11
E2, E4, E21, E24, E3
CONTROL UNIT
€ 674.50
11
3291023D00
ref: 11
MODEL M E22
CONTROL UNIT
€ 989.00
11
3291022D90
ref: 11
MODEL N/P E22
CONTROL UNIT
€ 809.50
12
0911606087
ref: 12
BOLT 6X25
€ 2.00
12A
0712006257
ref: 12A
MODEL N E22, MODEL P
BOLT
€ 3.00
12B
0916006027
ref: 12B
MODEL N E22, MODEL P
WASHER (6.5X20X1.2)
€ 2.00
13
0932009009
ref: 13
CUSHION
€ 5.00
14
0918006152
ref: 14
SPACER
€ 3.00
15
0915206023
ref: 15
NUT
€ 2.50
