FRONT CALIPER
RGV250 1994 (R) (E02 E04 E21 E24 E34)

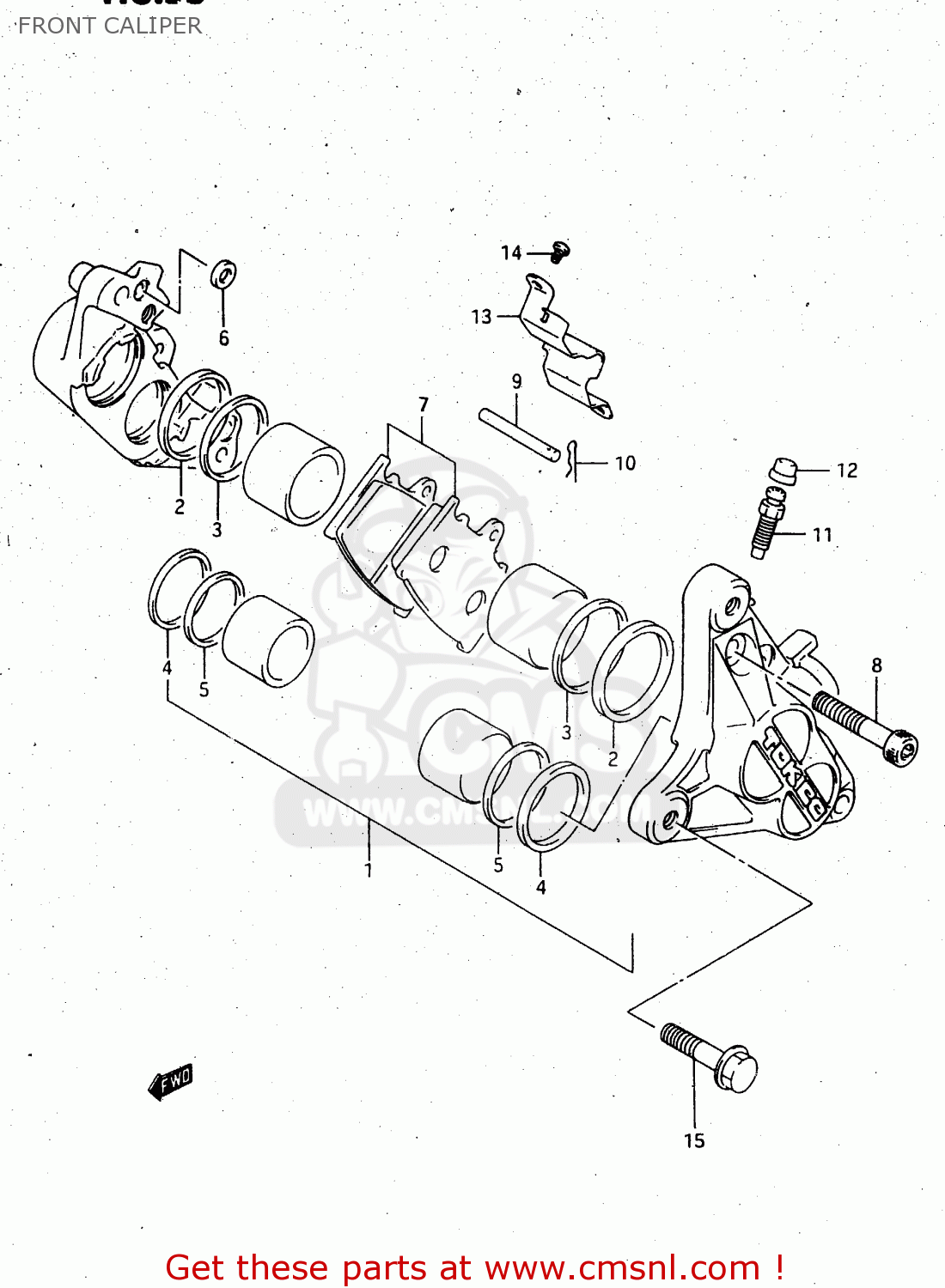

Front caliper diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
FRONT CALIPER RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
0
5910006C70
ref: 0
MODEL M/N
CALIPER ASSY,R
€ 447.50
0
5930006C70
ref: 0
MODEL M/N
CALIPER ASSY,L
€ 574.50
0
5910006C71
ref: 0
MODEL P/R/T
CALIPER ASSY, RH
€ 447.50
0
5930006C71
ref: 0
MODEL P/R/T
CALIPER ASSY,FR,L
€ 574.50
1
5910032811
ref: 1
PISTON SET,BRK
€ 293.00
2
5910739100
ref: 2
SEAL,PISTON
€ 18.00
3
5910836A00
ref: 3
SEAL,WIPER
€ 14.50
4
5910703A00
ref: 4
SEAL
€ 9.00
5
5910832C00
ref: 5
SEAL,WIPER
€ 16.00
6
6910734200
ref: 6
SEAL,JOINT
€ 12.00
7
5910022810
ref: 7
<-59130-22D00
PAD SET
€ 47.00
8
5914500A00
ref: 8
BOLT,CALIPER
€ 18.00
9
6914145000
ref: 9
PIN,PAD
€ 6.50
10
6914245000
ref: 10
CLIP,PAD PIN
€ 4.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
€ 6.00
13
5915222D00
ref: 13
COVER,DUST,R.
€ 15.00
13
5915122D01
ref: 13
COVER,CALIPER DUST,L
€ 15.00
14
5915322D00
ref: 14
SCREW
€ 4.50
15
0151710308
ref: 15
MODEL M/N/P
BOLT
€ 3.50
15
0155010307
ref: 15
MODEL R/T
BOLT
€ 3.50
