Buy Suzuki RGV Parts Online


TURN SIGNAL LAMP (E2, E4, E21, E22, E24, E34)

RGV250 1994 (R) (E02 E04 E21 E24 E34)

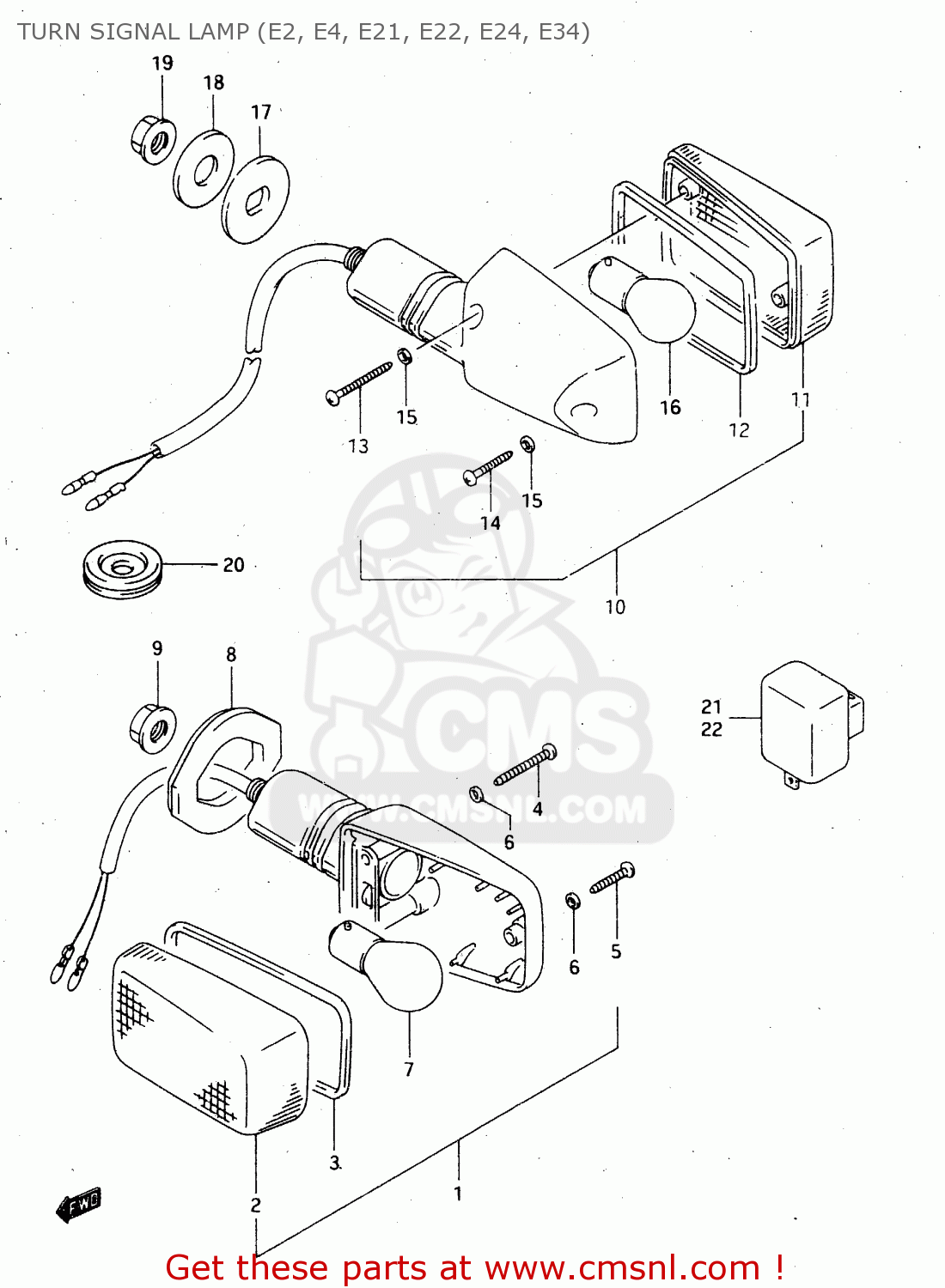

Turn signal lamp (e2, e4, e21, e22, e24, e34) diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)

TURN SIGNAL LAMP (E2, E4, E21, E22, E24, E34) RGV250 1994 (R) (E02 E04 E21 E24 E34)
TURN SIGNAL LAMP (E2, E4, E21, E22, E24, E34) RGV250 1994 (R) (E02 E04 E21 E24 E34)
TURN SIGNAL LAMP (E2, E4, E21, E22, E24, E34) RGV250 1994 (R) (E02 E04 E21 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
3560112C11
ref: 1
MODEL M
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 81.00
1
3560101D00
ref: 1
MODEL N/P/R/T
LAMP ASSY,FR TURN SIGNAL
3560101D00
€ 81.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
3567427A01
ref: 8
GROMMET
3567427A01
€ 13.50
9
0831620103
ref: 9
MODEL M/N/P
NUT
0831620103
€ 3.50
9
0831610103
ref: 9
MODEL R/T
NUT
0831610103
€ 2.00
10
3560317C41999
ref: 10
E2, E4, E21, E24, E3
LAMP ASSY,RR TURNSIGNAL
3560317C41999
€ 76.00
10
3560317C51999
ref: 10
E22
LAMP ASSY,RR TURNSIGNAL
3560317C51999
€ 68.00
11
3565217C20
ref: 11
LENS
3565217C20
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
3561327A00
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
3562327A00
€ 1.50
14
3572540511
ref: 14
SCREW
3572540511
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
3562727A02
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17
3569517C00
ref: 17
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
18
0916010094
ref: 18
MODEL M/N/P
WASHER(10.5X30X3.2)
0916010094
€ 3.50
18
0916010501
ref: 18
MODEL R/T
WASHER(10.5X30X2.3)
0916010501
€ 2.50
19
0831626105
ref: 19
MODEL M/N
NUT
0831626105
€ 3.50
19
0831012108
ref: 19
MODEL P
NUT
0831012108
€ 2.50
19
0831000103
ref: 19
MODEL R/T
NUT
0831000103
€ 2.00
20
0930807013
ref: 20
GROMMET
0930807013
€ 3.50
21
3861031X50
ref: 21
MODEL M/N E2, E4, E2
RELAY ASSY,TURNSIGNAL
3861031X50
€ 54.50
22
3861045091
ref: 22
E22
RELAY ASSY,TUR
€ 67.50
22
3861045D01
ref: 22
MODEL P/R/T
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
