CRANKSHAFT
RGV250 1994 (R) (E02 E04 E21 E24 E34)

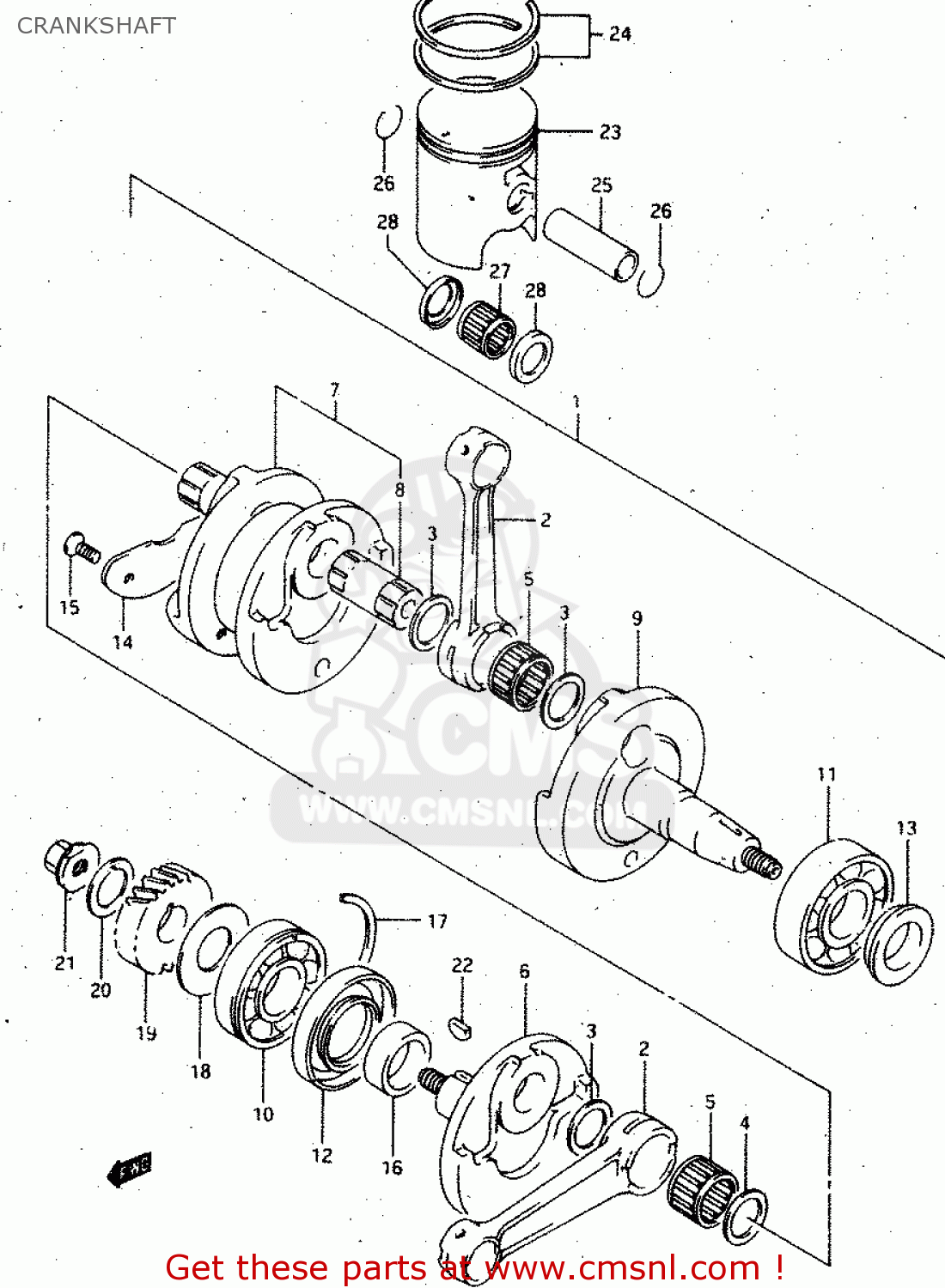

Crankshaft diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
CRANKSHAFT RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1220022D11
ref: 1
<-12200-22D00
CRANKSHAFT ASSY
€ 1,249.50
2
1216112C060D0
ref: 2
ROD,CONNECTING
€ 100.00
3
0916022070
ref: 3
WASHER(22X27.5X1.5)
€ 9.50
4
0916022071
ref: 4
WASHER(22X27.5X2)
€ 9.50
5
09263220470C0
ref: 5
ROLLER BEARING (22X28X1
€ 64.00
6
1222122D01
ref: 6
CRANKSHAFT,R
€ 162.50
7
1224022D01
ref: 7
CRANKSHAFT,MIDDLE
€ 372.00
8
1221112C020A0
ref: 8
PIN,CRANK
€ 36.00
9
1226122D10
ref: 9
<-12261-22D01
CRANKSHAFT,L
€ 171.00
10
0926225097
ref: 10
BEARING(25X62X17)
€ 41.50
11
0926225098
ref: 11
BEARING(25X62X17)
€ 55.00
12
0928932005
ref: 12
SEAL,OIL(32X62X6X7.5)
€ 23.50
13
0928325091
ref: 13
SEAL,OIL(25X36X6)
€ 32.50
14
1227112C04
ref: 14
BALANCER,CRANKSHAFT
€ 11.00
15
0212206167
ref: 15
MODEL M/N/P
SCREW
€ 2.00
15
0212206163
ref: 15
MODEL R/T
SCREW ,6X16
€ 2.00
16
0918025089
ref: 16
SPACER(25.2X32X9)
€ 12.00
17
0939062009
ref: 17
C RING
€ 5.00
18
0918120059
ref: 18
SHIM(20X48X0.5)
€ 3.00
19
2111112C02
ref: 19
GEAR,PRIMARY DRIVE
€ 52.50
20
0916612002
ref: 20
WASHER
€ 2.00
21
0915912103
ref: 21
NUT
€ 9.00
22
0942005008
ref: 22
KEY
€ 69.00
23
1211022D010F0
ref: 23
PISTON
€ 74.00
24
1214022D30
ref: 24
RING SET,PISTON
€ 46.50
25
1215122D00
ref: 25
PIN,PISTON
€ 12.00
26
0938116001
ref: 26
RING,SNAP 16MM
€ 1.50
27
0926316028
ref: 27
BEARING(16X20X17.8)
€ 13.00
28
0916916007
ref: 28
WASHER
€ 6.50
