HANDLE LEVER
RGV250 1994 (R) (E02 E04 E21 E24 E34)

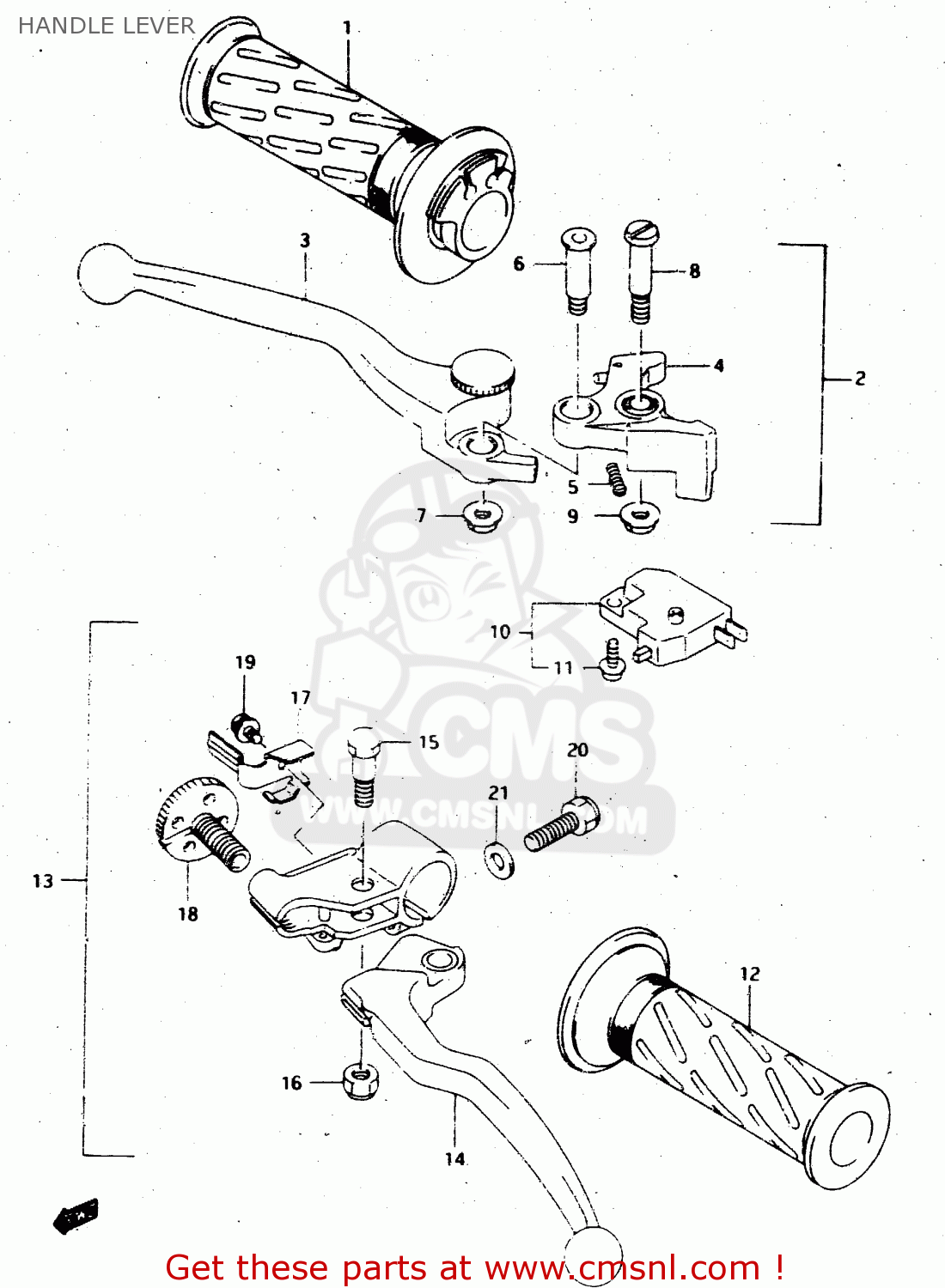

Handle lever diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
HANDLE LEVER RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
5711022D01
ref: 1
GRIP,THROTTLE
€ 22.50
2
5730032C01
ref: 2
LEVER ASSEMBLY,BRAKE
€ 88.00
3
5742032C00
ref: 3
LEVER,ADJUST
€ 39.50
4
5743032C00
ref: 4
KNOCKER
€ 45.50
5
5743832C00
ref: 5
SPRING
€ 4.00
6
5743732C00
ref: 6
MODEL M/N/P/R
BOLT,LEVER
€ 6.50
6
5743732C01
ref: 6
MODEL T
BOLT,LEVER
€ 6.50
7
0831931065
ref: 7
NUT
€ 2.50
8
5743117C00
ref: 8
BOLT,LEVER PIVOT
€ 8.00
9
0831616064
ref: 9
NUT 6MM
€ 2.50
10
5746017C00
ref: 10
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12
5721122D00
ref: 12
GRIP,LEFT
€ 11.50
13
5750032C01
ref: 13
LEVER ASSY,CLUTCH
€ 53.00
14
5762027A31
ref: 14
LEVER,CLUTCH
€ 34.00
15
5743149110
ref: 15
BOLT,LEVER PIVOT
€ 5.00
16
0831921065
ref: 16
NUT
€ 2.50
17
5764420A02
ref: 17
ADJUST,SPRING
€ 5.00
18
5764120A03
ref: 18
ADJUSTER,LOCK
€ 24.00
19
0211274085
ref: 19
SCREW
€ 3.50
20
0120406204
ref: 20
BOLT
€ 2.00
21
0832221064
ref: 21
WASHER
€ 2.00
