REAR CALIPER

RGV250 1994 (R) (E02 E04 E21 E24 E34)

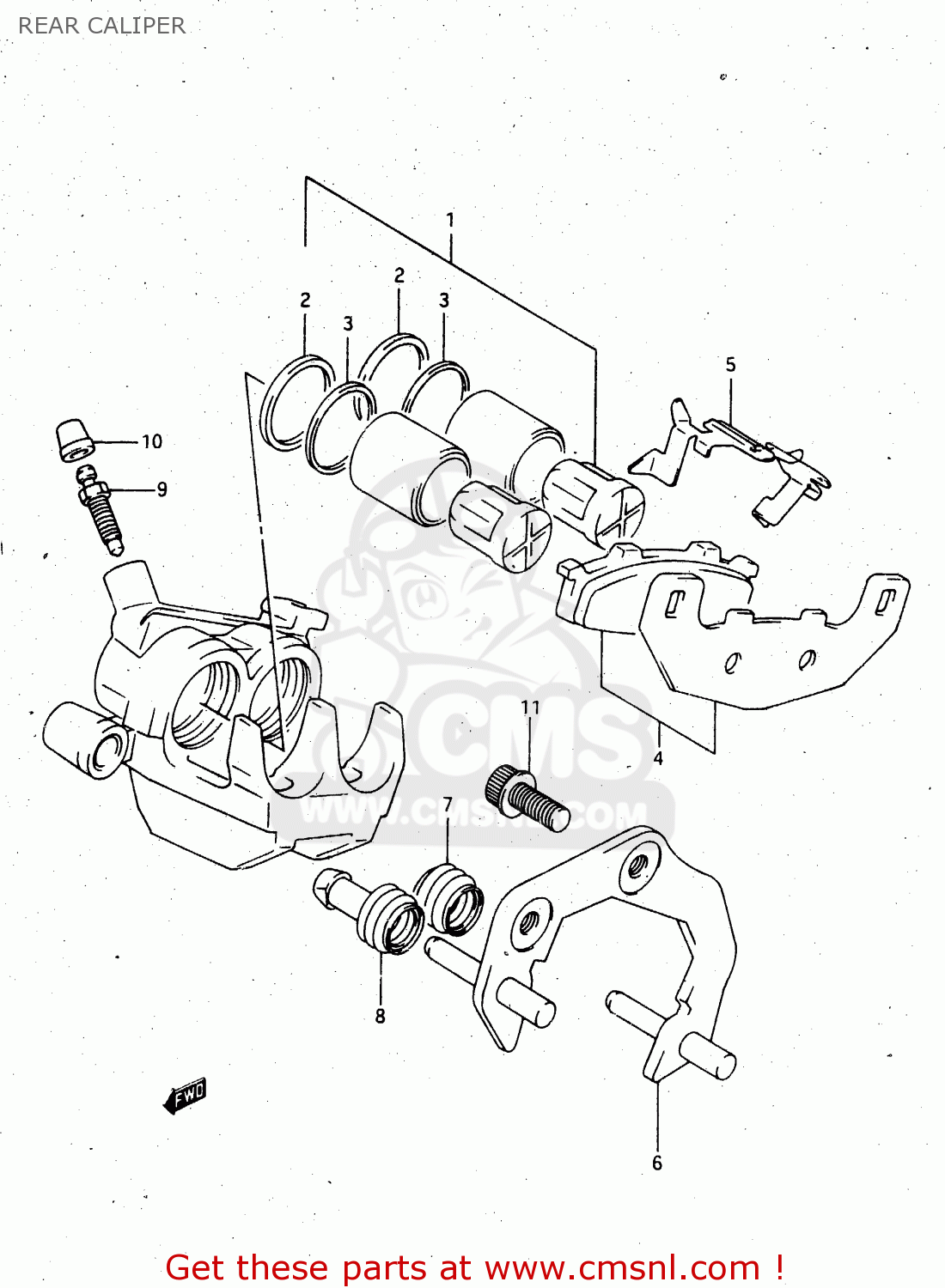

Rear caliper diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)

REAR CALIPER RGV250 1994 (R) (E02 E04 E21 E24 E34)
REAR CALIPER RGV250 1994 (R) (E02 E04 E21 E24 E34)
REAR CALIPER RGV250 1994 (R) (E02 E04 E21 E24 E34)
prices are in EUR
ref
part #
description
quantity
0
6910022D00
ref: 0
MODEL M/N, ->69100-2
CALIPER ASSY,R
€ 563.00
0
6910022D01
ref: 0
MODEL M/N
CALIPER ASSY, REAR
€ 563.00
0
6910022D11
ref: 0
MODEL P/R/T
CALIPER ASSY,R
€ 563.00
1
6910022810
ref: 1
PISTON SET
6910022810
€ 79.50
2
6910722D00
ref: 2
SEAL,PISTON
6910722D00
€ 24.00
3
6910822D00
ref: 3
SEAL,WIPER
6910822D00
€ 17.00
4
6910022820
ref: 4
MODEL M/N
PAD SET,BRAKE (MCA)
6910022820
€ 47.00
4
6910022830
ref: 4
MODEL P/R/T
PAD SET (NAS)
6910022830
€ 47.00
5
6911522D00
ref: 5
SPRING, PAD
€ 10.50
6
6915022D00
ref: 6
CARRIER,CALIPER
6915022D00
€ 59.50
7
5931236500
ref: 7
BOOT,AXLE
5931236500
€ 4.00
8
5931336500
ref: 8
INSULATOR,AXLE
5931336500
€ 5.50
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
5515666310
€ 6.00
11
0712008208
ref: 11
MODEL M/N/P
BOLT
€ 3.00
11
0910608107
ref: 11
MODEL R/T
BOLT(8X20)
0910608107
€ 2.00
