Buy Suzuki RGV Parts Online


TURN SIGNAL LAMP (E1)

RGV250 1994 (R) (E02 E04 E21 E24 E34)

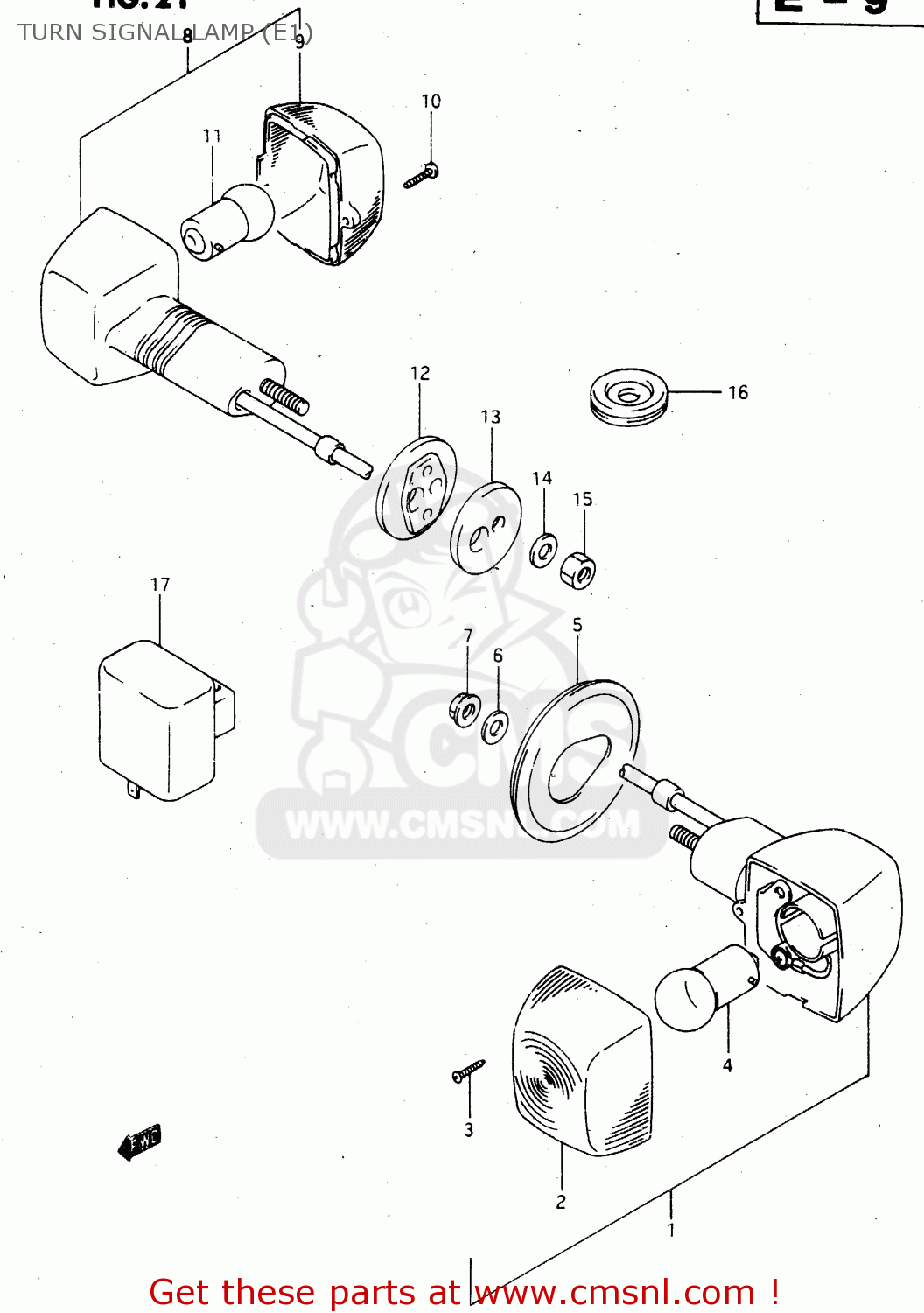

Turn signal lamp (e1) diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)

TURN SIGNAL LAMP (E1) RGV250 1994 (R) (E02 E04 E21 E24 E34)
TURN SIGNAL LAMP (E1) RGV250 1994 (R) (E02 E04 E21 E24 E34)
TURN SIGNAL LAMP (E1) RGV250 1994 (R) (E02 E04 E21 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
3560122D00
ref: 1
LAMP ASSY, FRONT TURN RH
€ 51.50
1
3560222D00
ref: 1
LAMP ASSY, FRONT TURN LH
€ 73.50
2
3565206C00
ref: 2
LENS
3565206C00
€ 7.00
3
3562501A00
ref: 3
SCREW
3562501A00
€ 1.50
4
0947112162
ref: 4
BULB(12V15W)
0947112162
€ 13.00
5
3567407D00
ref: 5
GROMMET,TURNSIGNAL LAMP
3567407D00
€ 24.00
6
0916006093
ref: 6
WASHER (6.2X14X2)
0916006093
€ 2.00
7
0831620063
ref: 7
NUT
0831620063
€ 2.00
8
3560307D00
ref: 8
LAMP ASSY,RR TURNSIGNAL,R
3560307D00
€ 56.50
8
3560407D00
ref: 8
LAMP ASSY,RR TURNSIGNAL,L
3560407D00
€ 64.50
9
3565206C00
ref: 9
LENS
3565206C00
€ 7.00
10
3562501A00
ref: 10
SCREW
3562501A00
€ 1.50
11
0947112162
ref: 11
BULB(12V15W)
0947112162
€ 13.00
12
3569507D00
ref: 12
SPACER,RR TURN
3569507D00
€ 5.00
13
3569507D10
ref: 13
SPACER,RR TURNSIGNAL
3569507D10
€ 5.00
14
0832201063
ref: 14
WASHER
0832201063
€ 2.00
15
0831000063
ref: 15
NUT 6MM
0831000063
€ 2.00
16
0930807013
ref: 16
GROMMET
0930807013
€ 3.50
17
3861010D00
ref: 17
RELAY ASSY,TURNSIGNAL
3861010D00
€ 51.00
