HEADLAMP (MODEL T)

RGV250 1994 (R) (E02 E04 E21 E24 E34)

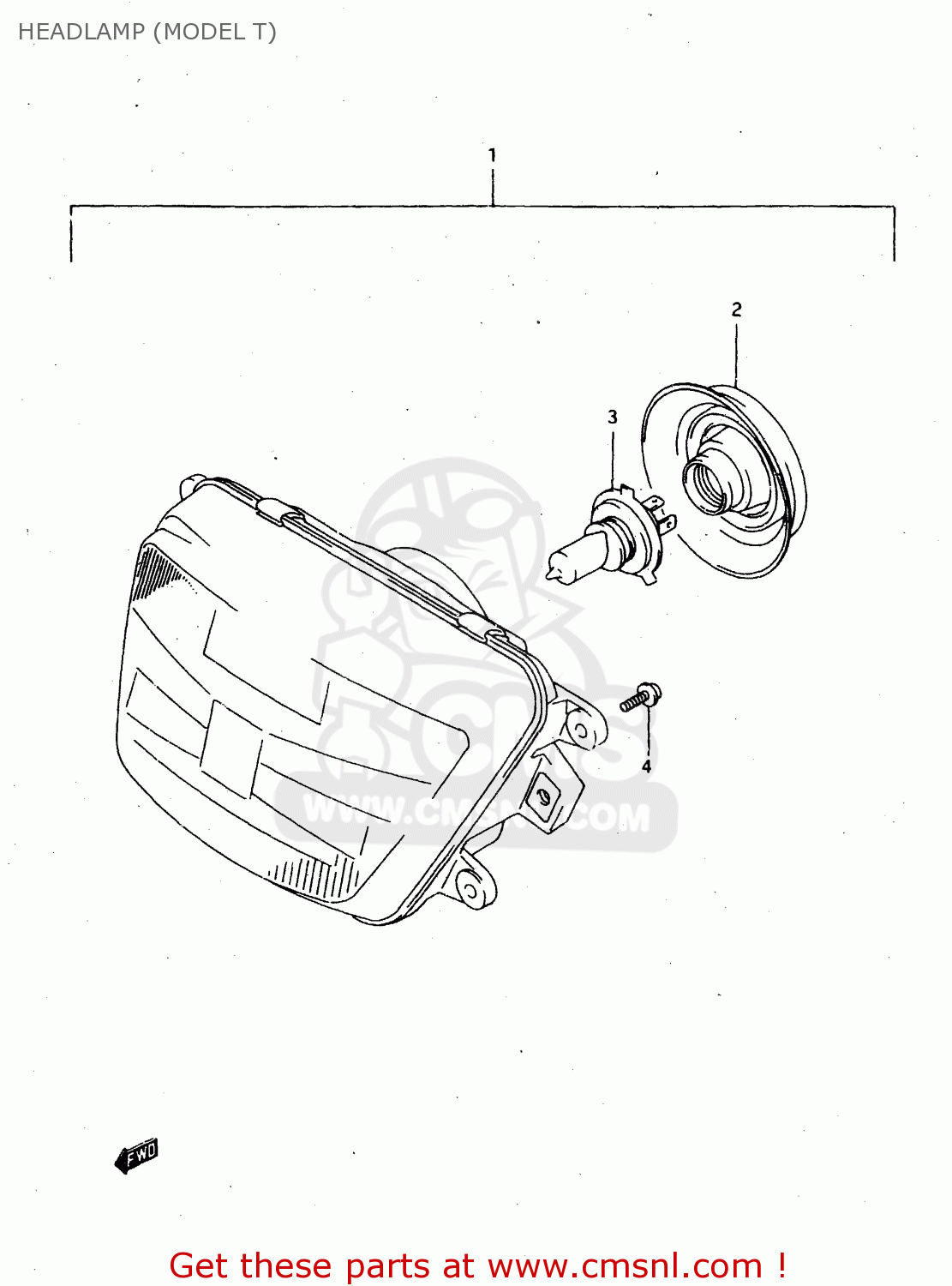

Headlamp (model t) diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)

HEADLAMP (MODEL T) RGV250 1994 (R) (E02 E04 E21 E24 E34)

HEADLAMP (MODEL T) RGV250 1994 (R) (E02 E04 E21 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3510019D10
ref: 1

HEADLAMP ASSEMBLY

€ 318.50

2

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0214205163
ref: 4

SCREW

€ 2.50
