REAR SWINGING ARM (MODEL M)

RGV250 1994 (R) (E02 E04 E21 E24 E34)

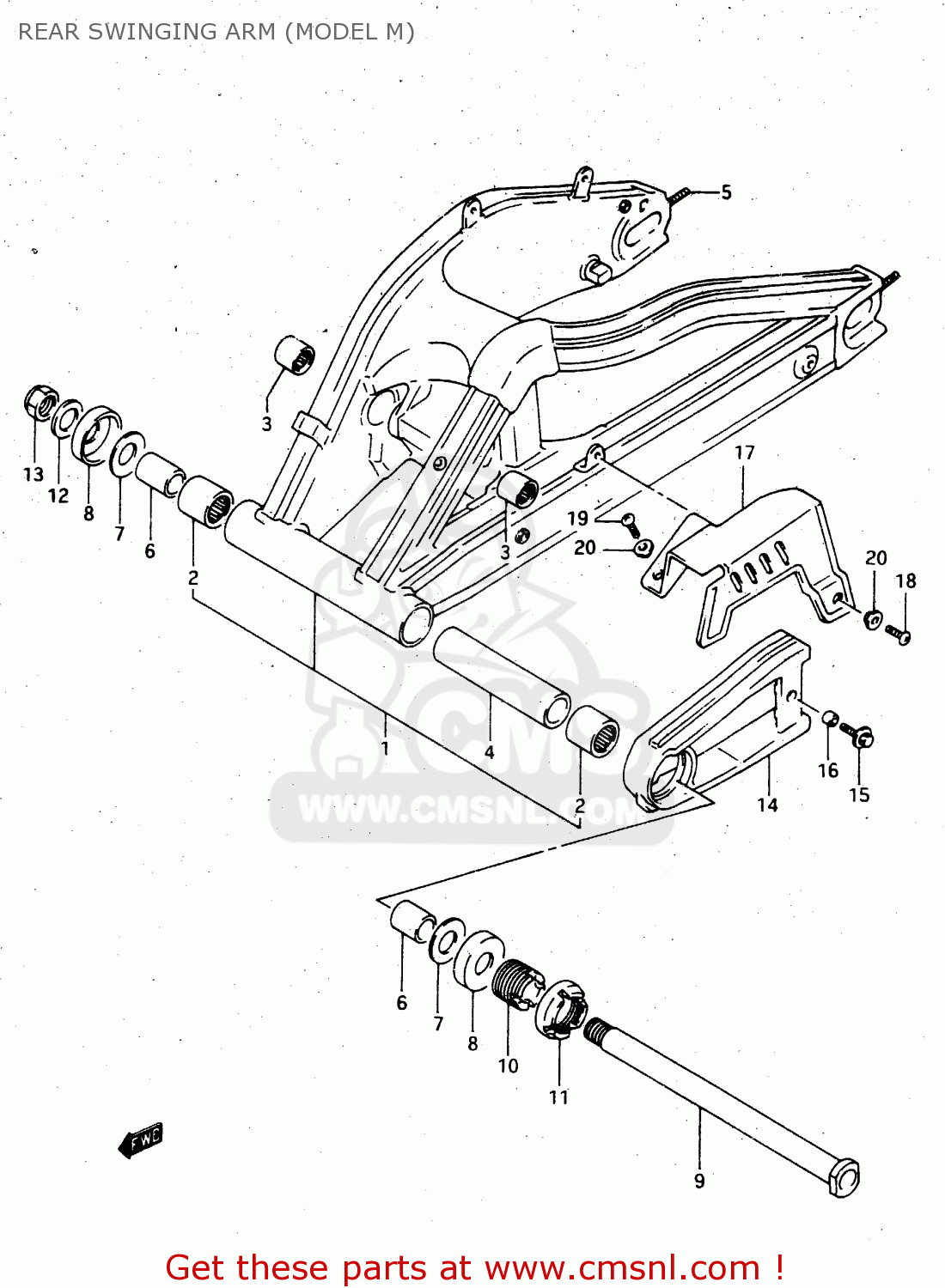

Rear swinging arm (model m) diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)

REAR SWINGING ARM (MODEL M) RGV250 1994 (R) (E02 E04 E21 E24 E34)

REAR SWINGING ARM (MODEL M) RGV250 1994 (R) (E02 E04 E21 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

6100022D00
ref: 1

SWINGING ARM ASSY, REAR

€ 1,523.50

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

6128212C00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 12.50

5

6143140C00
ref: 5

STUD,CHAIN ADJUSTER BOLT

€ 7.50

6

6125117C00
ref: 6

SPACER,RR SWGARM PIVOT BERRING

€ 36.00

7

0821120381
ref: 7

WASHER

€ 3.00

8

6126217C00
ref: 8

DUST SEAL,RR SWGARM PIVOT

€ 8.00

9

6121122D00
ref: 9

SHAFT,RR SWINGINGARM PIVOT

€ 67.00

10

6121322D00
ref: 10

BOLT,RR SWGARM PIVOT

€ 36.50

11

6121440C30
ref: 11

NUT,REAR SWING ARM PIVOT

€ 16.50

12

0832211188
ref: 12

WASHER

€ 2.50

13

0915918007
ref: 13

NUT

€ 14.00

14

6127322D00
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 27.00

15

0911606111
ref: 15

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

16

0918006142
ref: 16

SPACER

€ 1.50

17

6131122D00
ref: 17

CASE,CHAIN

€ 30.50

18

0214206104
ref: 18

SCREW

€ 2.00

19

0214206205
ref: 19

SCREW, CENTER

€ 2.00

20

0916906037
ref: 20

WASHER

€ 6.50
