TRANSMISSION
RGV250 1994 (R) (E02 E04 E21 E24 E34)

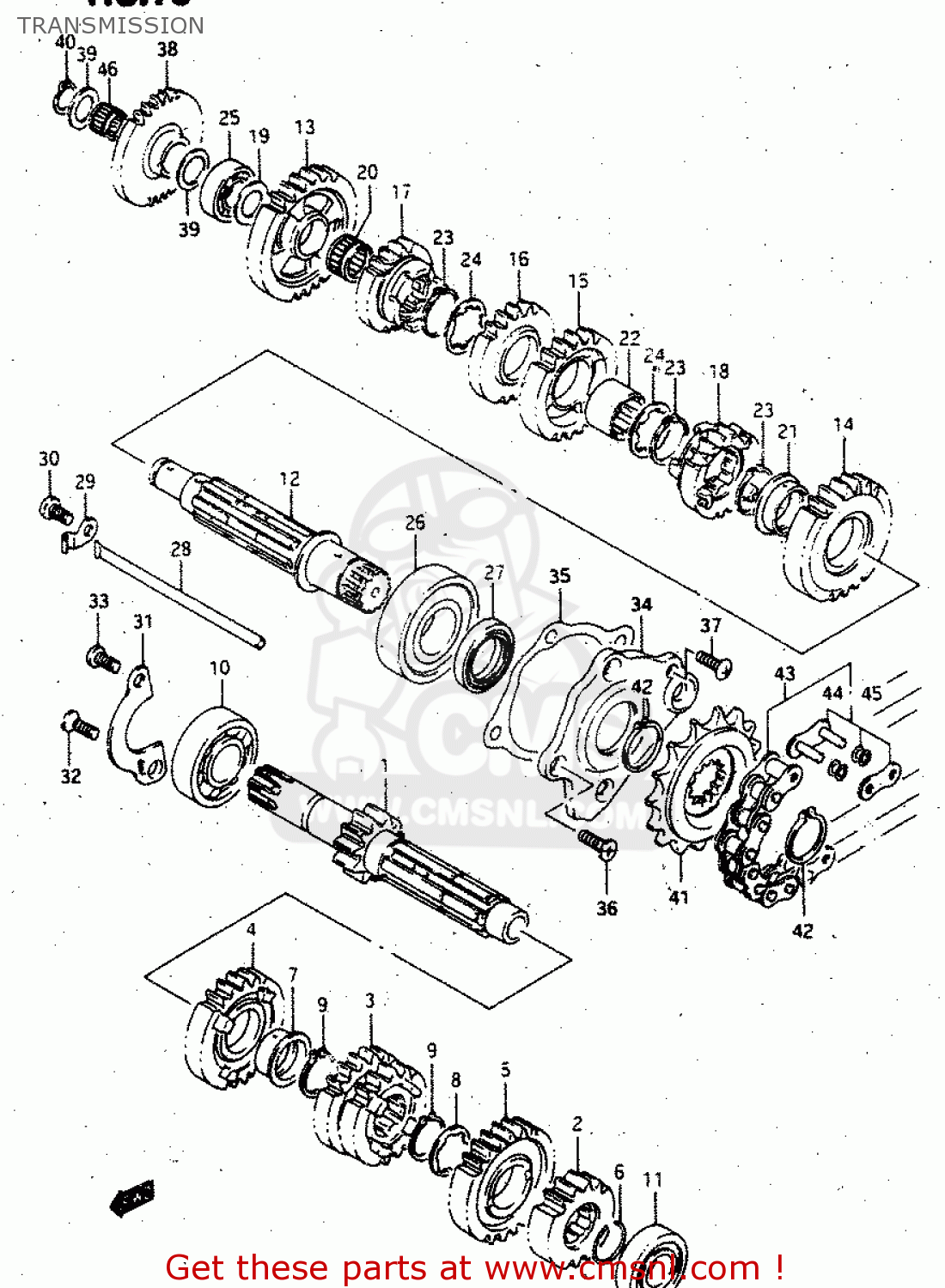

Transmission diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
TRANSMISSION RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
2412122D01
ref: 1
SHAFT,COUNTER(NT:11)
€ 168.00
2
2422112C00
ref: 2
GEAR,2ND DRIVE(NT:16)
€ 74.50
3
2423112C01
ref: 3
GEAR,3RD & 4TH DRIVE(NT:17/22)
€ 110.50
4
2425112C02
ref: 4
GEAR,5TH DRIVE(NT:24)
€ 87.50
5
2426112C01
ref: 5
GEAR,6TH DRIVE(NT:25)
€ 83.00
6
0938022009
ref: 6
CIRCLIP
€ 2.50
7
0930122003
ref: 7
BUSH
€ 17.50
8
0916722011
ref: 8
WASHER,LOCK
€ 3.00
9
0833131226
ref: 9
CIRCLIP
€ 2.00
10
0926220065
ref: 10
MODEL M/N/P
BEARING
€ 24.00
10
0926220116
ref: 10
MODEL R/T
BEARING 20X52X15
€ 24.00
11
0926217027
ref: 11
MODEL M/N/P, <-09262
BEARING(17X40X12)
€ 25.00
11
0926217018
ref: 11
MODEL R/T
BEARING
€ 25.00
12
2413022D00
ref: 12
SHAFT,DRIVE
€ 142.00
13
2431112C02
ref: 13
GEAR,1ST DRIVEN(NT:27)
€ 86.00
14
2432116701
ref: 14
GEAR,2ND DRIVE
€ 108.00
15
2433112C01
ref: 15
GEAR,3RD DRIVEN(NT:21)
€ 81.50
16
2434112C02
ref: 16
GEAR,4TH DRIVEN(NT:23)
€ 87.50
17
2435112C02
ref: 17
GEAR,5TH DRIVEN(NT:22)
€ 87.50
18
2436112C10
ref: 18
~F.NO.100177
GEAR,6TH DRIVEN(NT:21)
€ 87.50
18
2436112C11
ref: 18
F.NO.100178~
GEAR,6TH DRIVEN
€ 96.00
19
0821115263
ref: 19
WASHER
€ 3.50
20
0926318029
ref: 20
BEARING(18X22X12.8)
€ 15.50
21
0930125002
ref: 21
BUSH
€ 10.50
22
2433212C00
ref: 22
BUSH,3RD & 4TH DRIVEN GEAR
€ 32.50
23
0938025003
ref: 23
RING,SNAP
€ 3.00
24
0916725023
ref: 24
WASHER,LOCK
€ 5.00
25
0811062020
ref: 25
MODEL M/N/P/R
BALL BEARING
€ 14.50
25
0811362020
ref: 25
MODEL T
BEARING, RH
€ 14.50
26
0926225083
ref: 26
MODEL M
BALL BEARING 25X62X17
€ 49.00
26
0926225107
ref: 26
MODEL N/P/R
BEARING
€ 49.00
26
0926225083
ref: 26
MODEL T
BALL BEARING 25X62X17
€ 49.00
27
0928325086
ref: 27
SEAL,OIL(25X38X6)
€ 33.00
28
2488112C02
ref: 28
GUIDE,TRANSMISSION OIL
€ 6.50
29
2488512C00
ref: 29
RTNR,OIL GUIDE
€ 2.50
30
0211206103
ref: 30
SCREW
€ 1.50
31
2474122D00
ref: 31
RETAINER
€ 6.00
32
0211206163
ref: 32
SCREW 6X16
€ 2.00
33
0212206163
ref: 33
SCREW ,6X16
€ 2.00
34
2475112C03
ref: 34
RETAINER,DRIVE SHAFT BEARING
€ 24.50
35
2475222D00
ref: 35
GASKET,BRG RTNR (NAS)
€ 17.00
36
0212206163
ref: 36
<-09120-06002
SCREW ,6X16
€ 2.00
37
0912506083
ref: 37
SCREW(6X16)
€ 3.00
38
2626112C04
ref: 38
GEAR,KICK IDLE
€ 56.50
39
0821115241
ref: 39
WASHER,THRUST
€ 4.00
40
0833131156
ref: 40
CIRCLIP
€ 2.00
41
2751038C00
ref: 41
SPROCKET,ENGINE(NT:14)
€ 48.50
42
0833131246
ref: 42
CIRCLIP
€ 2.50
43
2760006C20114
ref: 43
<-27600-22D10-114
CHAIN,DRIVE
€ 125.00
44
2762006C20
ref: 44
JOINT,CHAIN
€ 14.00
45
2762022D10
ref: 45
JOINT (DID)
€ 15.00
46
0926315028
ref: 46
BEARING(15X19X13)
€ 13.00
