CONTROL CABLE
RGV250 1994 (R) (E02 E04 E21 E24 E34)

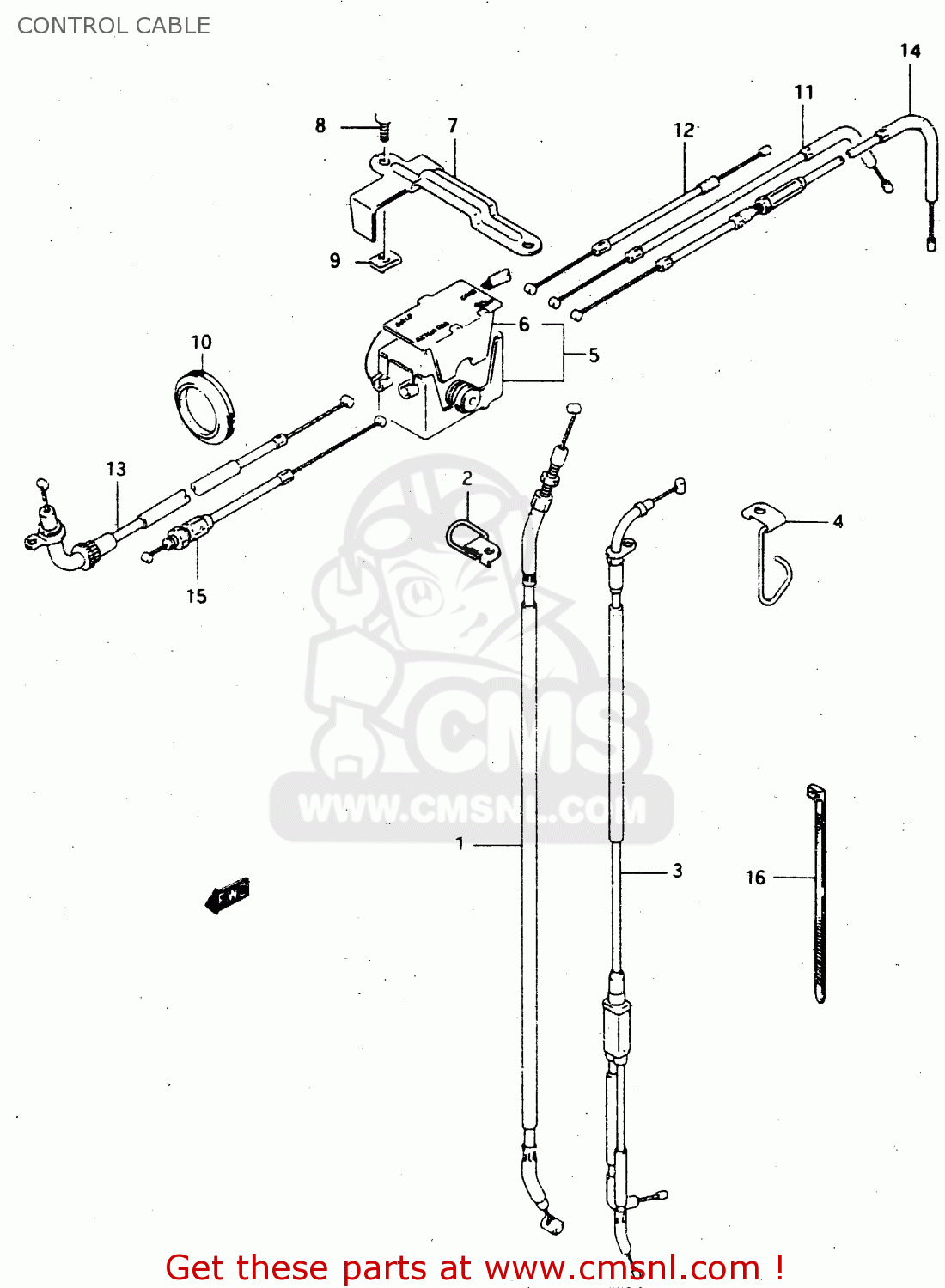

Control cable diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
CONTROL CABLE RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
5820022D11
ref: 1
CABLE ASSY,CLUTCH
€ 49.50
2
5829022D01
ref: 2
GUIDE, CLUTCH CABLE
€ 8.00
3
5841022D01
ref: 3
CABLE,STARTER
€ 44.50
4
5847012C00
ref: 4
GUIDE,STARTER CABLE
€ 7.50
5
3390012852
ref: 5
SENSOR SET, THROTTLE
€ 236.50
6
5837312C01
ref: 6
COVER,THROTTLE CABLE CONN
€ 8.00
7
5837412C11
ref: 7
MODEL M/N/P, MODEL M
PLATE, CONNECTO BOX
€ 13.50
7
5837022D00
ref: 7
MODEL N/P E22
PLATE,THROTTLE CABLE CONN BOX
€ 13.50
7
5837022D00
ref: 7
MODEL R/T
PLATE,THROTTLE CABLE CONN BOX
€ 13.50
8
0324205129
ref: 8
MODEL M/N/P
SCREW
€ 1.50
8
0324105123
ref: 8
MODEL R/T
SCREW L:12
€ 1.50
9
0914805017
ref: 9
NUT
€ 2.50
10
0932037001
ref: 10
GROMMET
€ 6.50
11
5831012C02
ref: 11
CABLE,THROTTLE NO.1
€ 13.00
12
5835012C03
ref: 12
CABLE,THROTTLE NO.2
€ 14.50
13
5836022D00
ref: 13
CABLE,THROTTLE NO.3
€ 29.50
14
5838022D00
ref: 14
CABLE,THROTTLE NO.4
€ 29.50
15
5839012C01
ref: 15
CABLE,THROTTLE NO.5
€ 28.00
16
0940720405
ref: 16
MODEL R/T
CLAMP
€ 4.50
