WATER PUMP
RGV250 1994 (R) (E02 E04 E21 E24 E34)

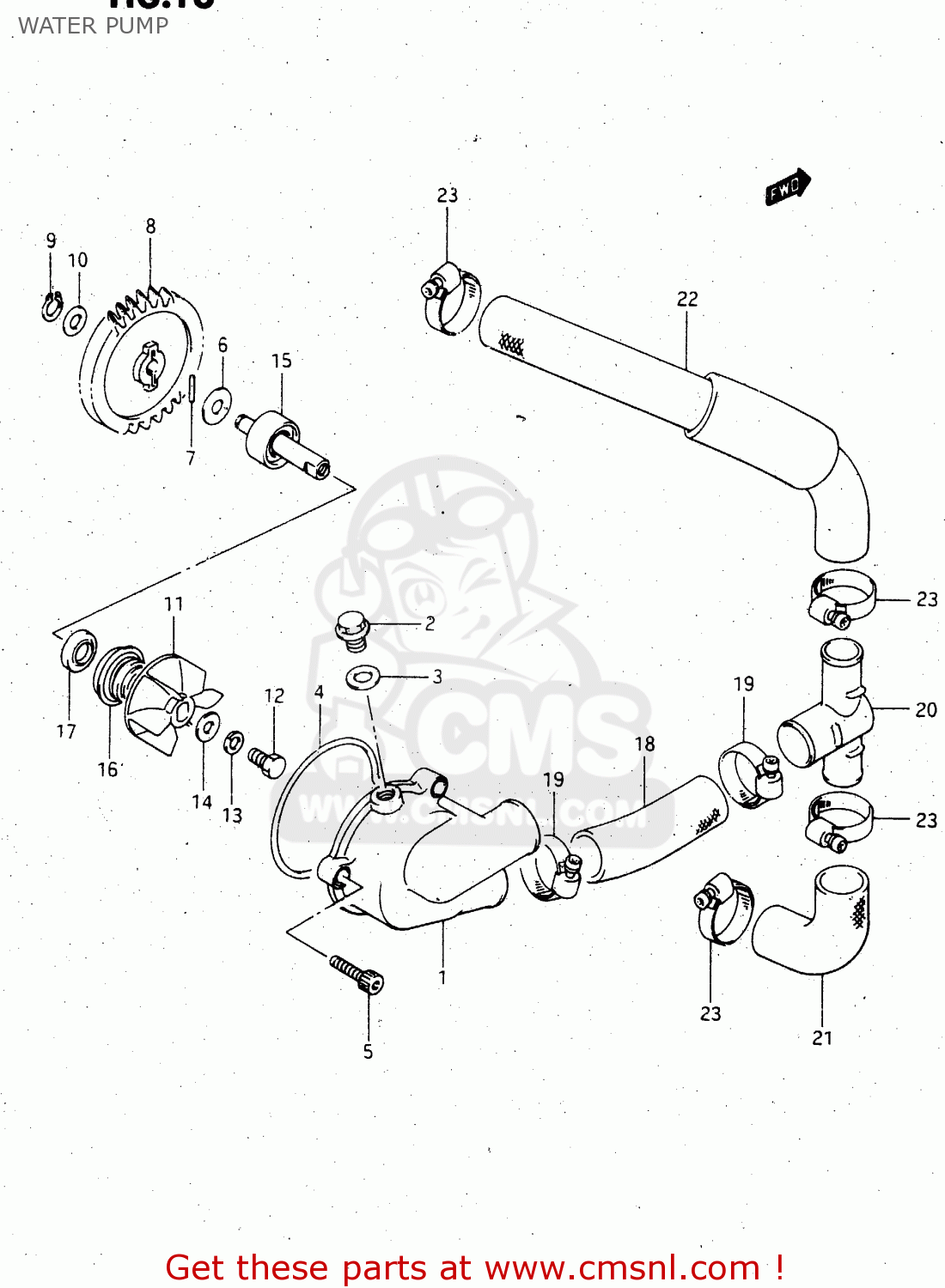

Water pump diagram RGV250 1994 (R) (E02 E04 E21 E24 E34)
WATER PUMP RGV250 1994 (R) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1741012C02
ref: 1
CASE,WATER PUMP
€ 73.50
2
1741520920
ref: 2
BOLT,DRAIN
€ 5.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
€ 1.00
4
1743512C00
ref: 4
O RING,WATER PUMP CASE
€ 6.00
5
0711006208
ref: 5
MODEL M/N/P
BOLT ,6X20
€ 3.50
5
0713006203
ref: 5
MODEL R/T
BOLT,CRKCASE,R
€ 3.00
6
0821108201
ref: 6
WASHER
€ 2.00
7
0926102001
ref: 7
PIN(2.5X19.8)
€ 1.50
8
1746112C00
ref: 8
GEAR,WATER PUMP DRIVE(NT:31)
€ 31.00
9
0833131086
ref: 9
CIRCLIP
€ 2.00
10
0916408018
ref: 10
WASHER
€ 3.50
11
1749112C00
ref: 11
IMPELLER,WATER PUMP
€ 11.50
12
0910006099
ref: 12
BOLT(6X13)
€ 2.00
13
0916406006
ref: 13
WASHER
€ 2.50
14
0916806025
ref: 14
GASKET(6X15X2.2) (NAS)
€ 3.00
15
1751022D00
ref: 15
SHAFT,WATER PUMP
€ 122.00
16
1747046A00
ref: 16
SEAL,MECHANICAL
€ 21.50
17
0928310005
ref: 17
SEAL,OIL(10X20X5)
€ 4.50
18
1785712C00
ref: 18
HOSE,WTR PUMP OUTLET
€ 12.50
19
0940230502
ref: 19
MODEL M/N/P
CLAMP
€ 11.50
19
0940232511
ref: 19
MODEL R/T
CLAMP
€ 11.50
20
1789112C00
ref: 20
UNION,WTR HOSE THREE WAY
€ 10.50
21
1785812C00
ref: 21
HOSE,CYLINDER INLET NO.1
€ 12.50
22
1785912C01
ref: 22
HOSE,CYLINDER INLET NO.2
€ 23.50
23
0940228511
ref: 23
CLAMP
€ 8.50
