AIR CLEANER

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

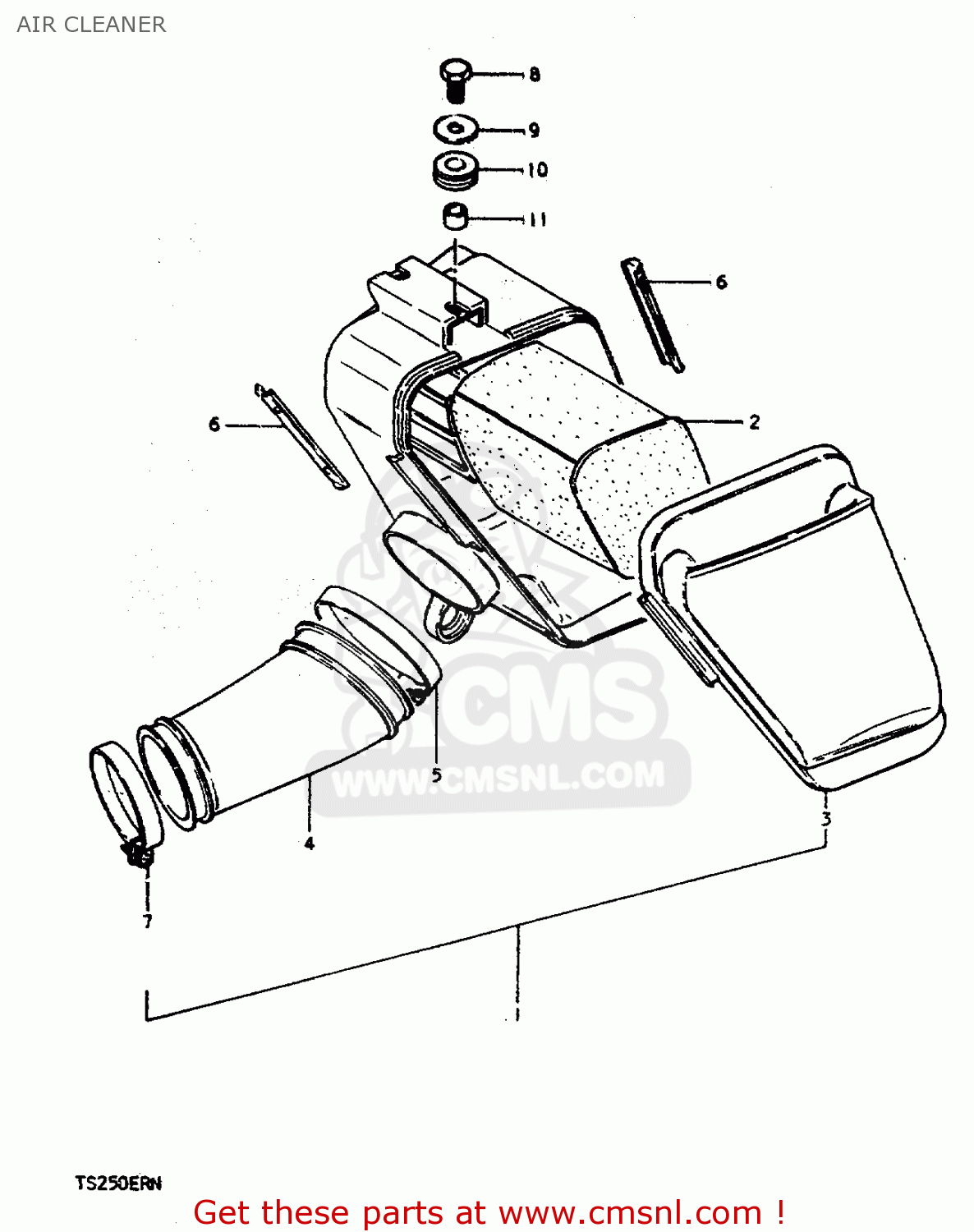

Air cleaner diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

AIR CLEANER TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

AIR CLEANER TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

1370030900
ref: 1

CLEANER ASSEMBLY,AIR

€ 76.50

2

1378130900
ref: 2

FILTER

€ 22.00

3

1374030900
ref: 3

CAP,AIR CLEANER

€ 23.50

4

1388230900
ref: 4

OUTLET

€ 18.00

5

0940270202
ref: 5

CLAMP

€ 5.00

6

1382100010
ref: 6

SLIDER

€ 3.50

7

0940254202
ref: 7

CLAMP

€ 5.00

8

0110706168
ref: 8

BOLT, UPPER

€ 3.00

9

0916006027
ref: 9

WASHER (6.5X20X1.2)

€ 2.00

10

0932008007
ref: 10

CUSHION

€ 4.00

11

0918007005
ref: 11

SPACER (7X9X7)

€ 2.50
