REAR COMBINATION LAMP (E22)

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

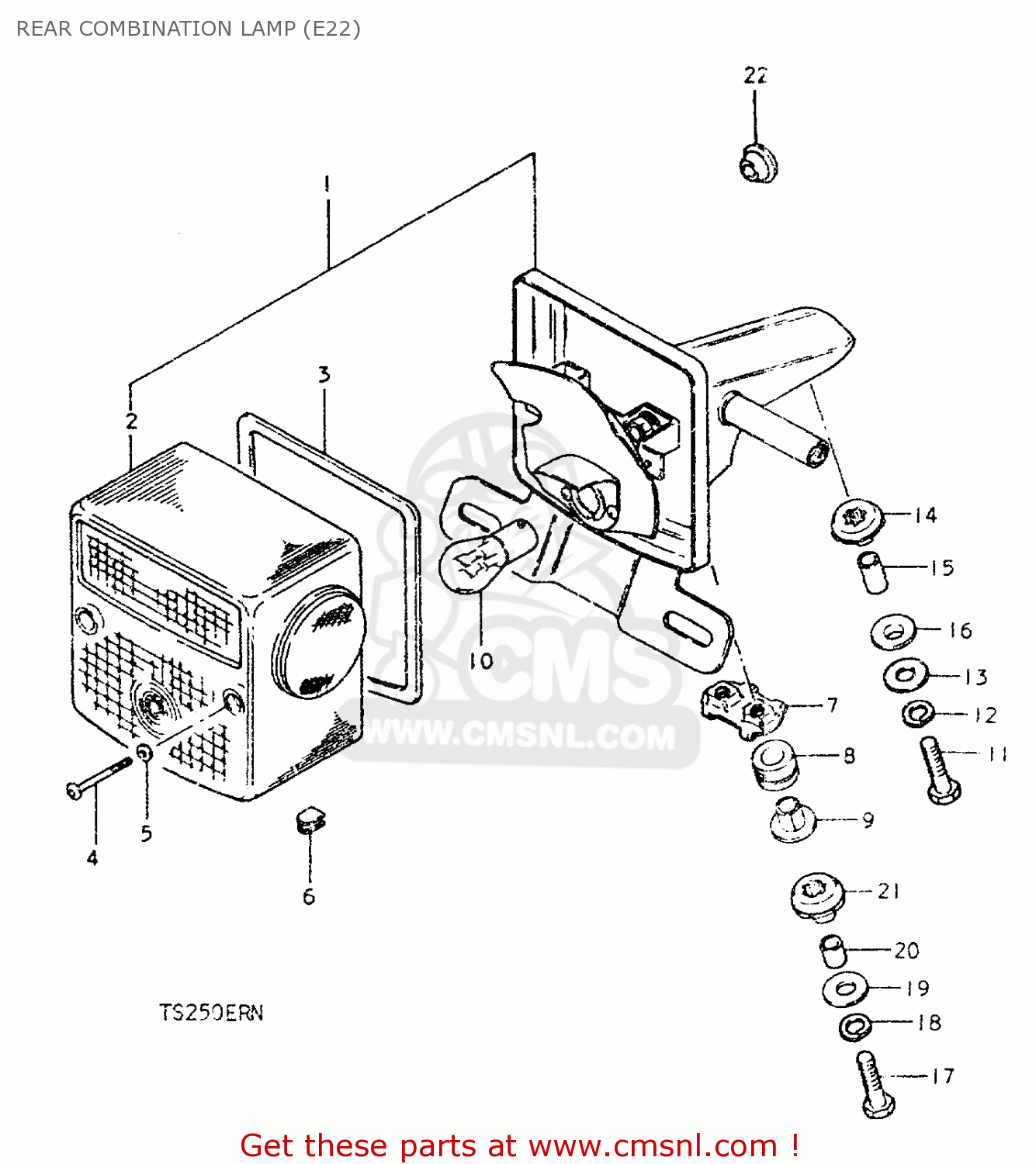

Rear combination lamp (e22) diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3571030950999
ref: 1

LAMP ASSY, REAR COMBINATION

€ 0.00

3571230641
ref: 2

LENS

€ 47.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0912504002
ref: 4

SCREW (4X55)

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

3572830640
ref: 6

GROMMET,REAR COMBINATION LAMP

€ 3.00

3571630950
ref: 7

PLATE

€ 10.50

3576530950
ref: 8

CUSHION

€ 18.00

3576630950
ref: 9

SPACER

€ 2.00

0947106034
ref: 10

BULB (6V,21/5W)

€ 0.00

0110706308
ref: 11

BOLT

€ 2.50

0832121068
ref: 12

LOCK WASHER

€ 2.50

0916006027
ref: 13

WASHER (6.5X20X1.2)

€ 2.00

0932009010
ref: 14

CUSHION

€ 2.50

0918006072
ref: 15

SPACER

€ 2.00

0932009003
ref: 16

CUSHION

€ 2.00

0110706458
ref: 17

BOLT

€ 2.00

0832121068
ref: 18

LOCK WASHER

€ 2.50

0916006027
ref: 19

WASHER (6.5X20X1.2)

€ 2.00

0918006061
ref: 20

SPACER

€ 2.50

0932009011
ref: 21

CUSHION

€ 2.50

0930807004
ref: 22

GROMMET

€ 2.50

REAR COMBINATION LAMP (E22)

all assemblies
