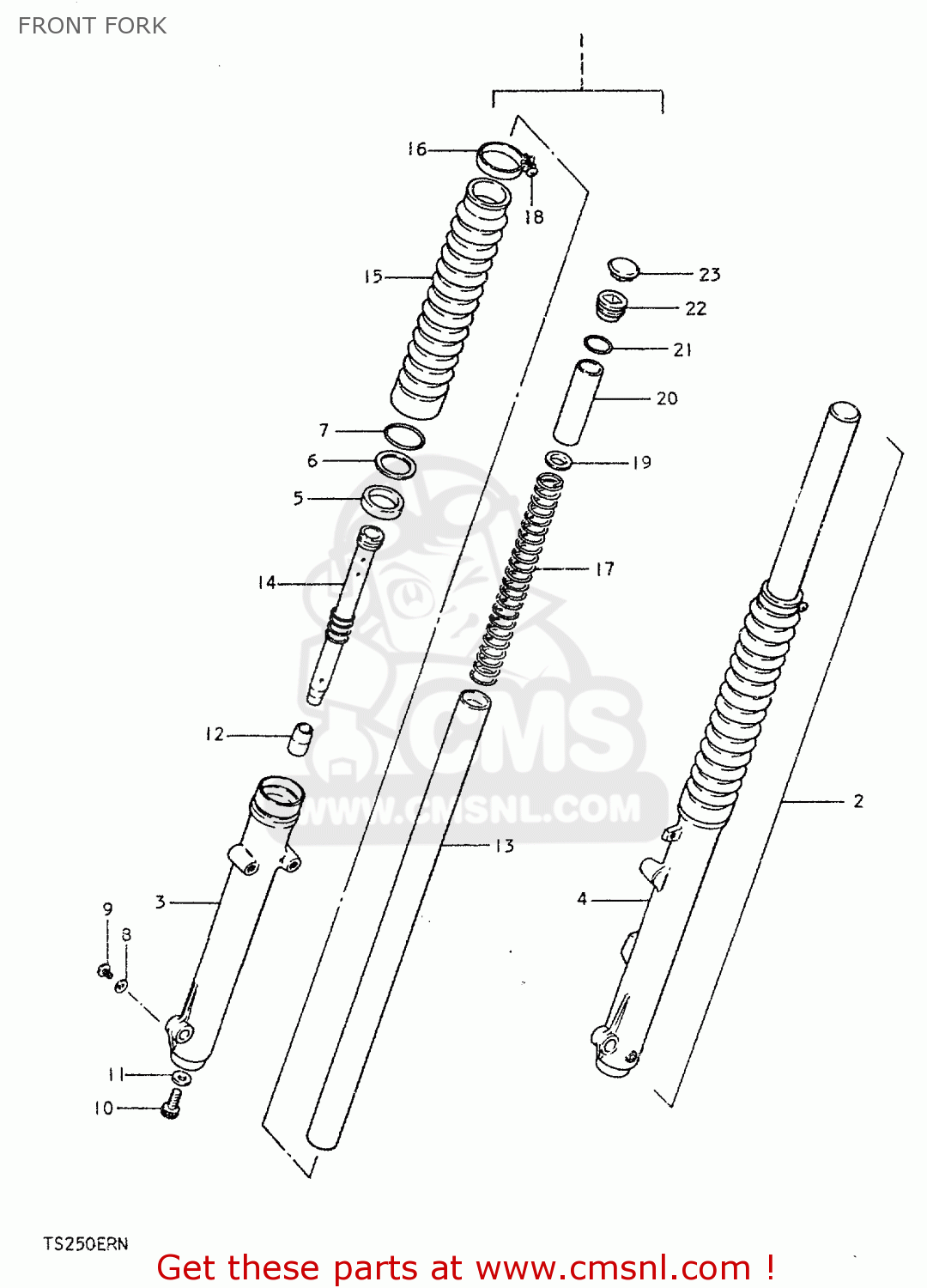

FRONT FORK

ref

part #

description

quantity

1

5110330900
ref: 1

DAMPER ASSEMBLY,FRONT FORK,RIGHT

€ 363.00

2

5110430900
ref: 2

DAMPER ASSEMBLY,LEFT

€ 342.00

3

5113032401
ref: 3

TUBE,OUTER,RIGHT

€ 143.00

4

5114032401
ref: 4

TUBE,FORK,LEFT,OUTER

€ 173.50

5

5115341211
ref: 5

OIL SEAL,FRONT FORK

€ 28.50

6

5115832110
ref: 6

RING,FORK BACK UP

€ 3.00

7

5115632110
ref: 7

CIRCLIP,FORK OIL SEAL

€ 6.00

8

5118303010
ref: 8

GASKET,DRAIN,PLUG (NAS)

€ 3.00

9

0211104087
ref: 9

SCREW

€ 1.50

10

5114716510
ref: 10

BOLT,FORK CYLINDER(10X25)

€ 3.50

11

5114841310
ref: 11

GASKET (NAS)

€ 2.50

12

5119541210
ref: 12

PIECE,OIL LOCK

€ 12.00

13

5111030900
ref: 13

TUBE,FORK,INNER

€ 124.00

14

5114630900
ref: 14

CYLINDER,FRONT FORK

€ 0.00

15

5157130900
ref: 15

BOOT,FRONT FORK COVER

€ 33.50

16

5157541410
ref: 16

BAND,BOOT

€ 8.00

17

5117130900
ref: 17

SPRING,FRONT FORK

€ 0.00

18

0211204168
ref: 18

SCREW

€ 1.00

19

5117238010
ref: 19

GUIDE,FRONT FORK SPRING C

€ 9.50

20

5117649000
ref: 20

SPACER,FRONT FORK SPRING

€ 3.50

21

5111716310
ref: 21

O RING

€ 4.50

22

5135130520
ref: 22

CAP,FORK INNER TUBE

€ 9.00

23

5118932400
ref: 23

CAP,FRONT FORK

€ 11.50
