HEADLAMP HOUSING

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

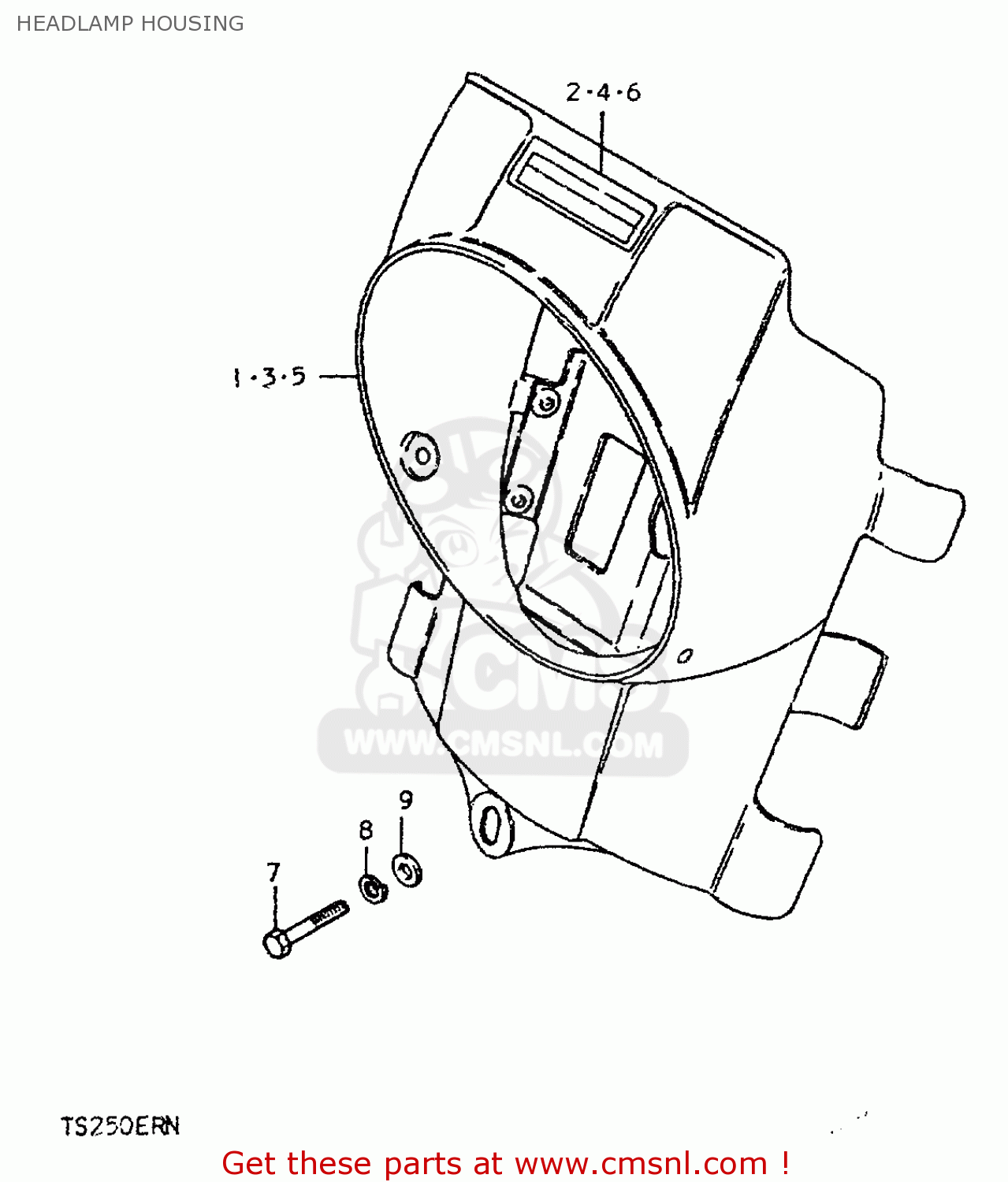

Headlamp housing diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

HEADLAMP HOUSING TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

HEADLAMP HOUSING TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

518104850007P
ref: 1

HOUSING, HEADLAMP

€ 62.00

2

682754850069F
ref: 2

TAPE, HOUSING

€ 5.00

3

5181048500163
ref: 3

HOUSING, HEADLAMP

€ 71.50

4

682754850067H
ref: 4

TAPE, HOUSING

€ 4.50

5

5181048500189
ref: 5

HOUSING, HEAD LAMP

€ 71.50

6

682754850067H
ref: 6

TAPE, HOUSING

€ 4.50

7

0110706128
ref: 7

BOLT

€ 2.00

8

0832121068
ref: 8

LOCK WASHER

€ 2.50

9

0916006020
ref: 9

WASHER

€ 2.00
