FRAME

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

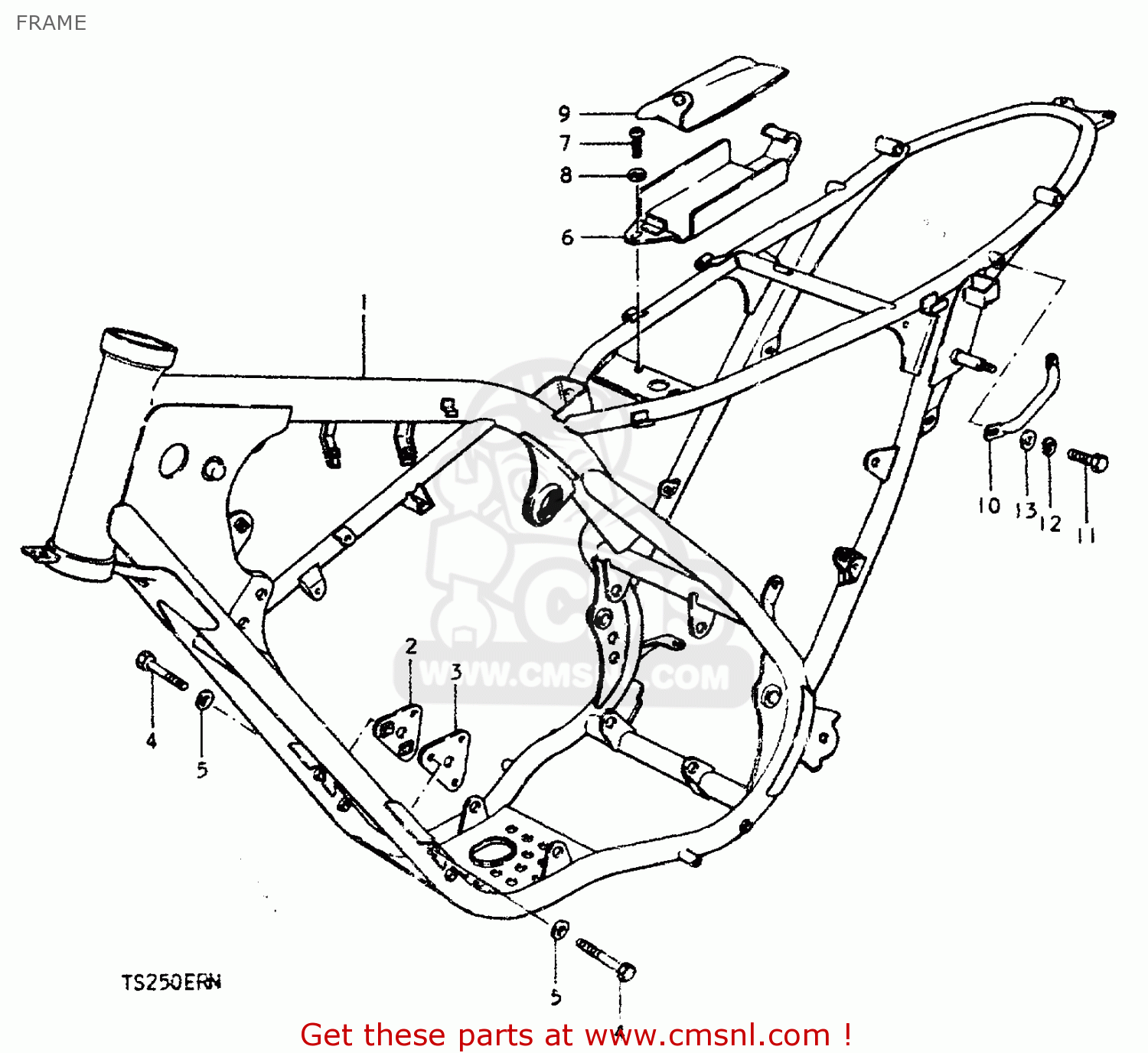

Frame diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1-1

4110030900019
ref: 1-1

FRAME

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4198030500
ref: 2

PLATE,ENGINE MOUNTING

€ 6.50

4199030500
ref: 3

PLATE,ENG MTG,L

€ 5.50

0110708558
ref: 4

BOLT 8X55

€ 3.00

0832211088
ref: 5

WASHER

€ 2.00

4155030500
ref: 6

HOLDER,TOOL

€ 0.00

0211206108
ref: 7

SCREW

€ 1.50

0832221068
ref: 8

WASHER

€ 2.00

0980000207
ref: 9

TOOL SET

€ 43.50

4161148500
ref: 10

GRIP,FRAME HANDLE

€ 35.50

0110708168
ref: 11

BOLT

€ 2.00

0832121088
ref: 12

LOCK WASHER

€ 2.00

0832211088
ref: 13

WASHER

€ 2.00

FRAME

all assemblies
