REAR SWINGING ARM

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

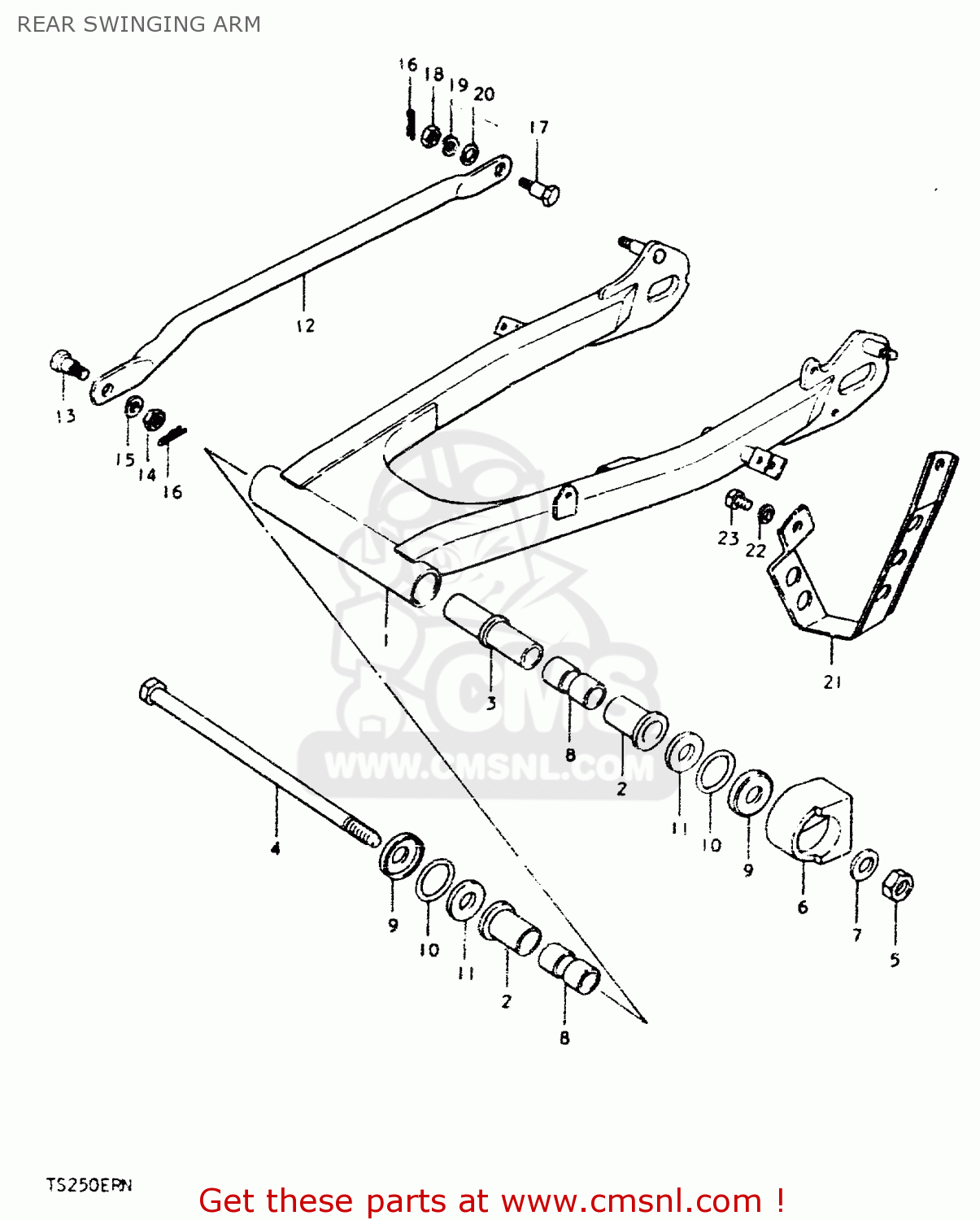

Rear swinging arm diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

REAR SWINGING ARM TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
REAR SWINGING ARM TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
REAR SWINGING ARM TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
611003088008C
ref: 1
SWING ARM ASSEMBLY,REAR
€ 0.00
2
0930722003
ref: 2
BUSH
0930722003
€ 18.00
3
6128032000
ref: 3
SPACER,SWING ARM,CENTER
6128032000
€ 12.50
4
6121115006
ref: 4
SHAFT,REAR SWING ARM
€ 34.50
5
0831921148
ref: 5
NUT 14MM
0831921148
€ 3.00
6
6127330900
ref: 6
BUFFER,CHAIN TOUCH DEFLECTOR
€ 9.00
7
0832211148
ref: 7
WASHER
0832211148
€ 2.00
8
6125115001
ref: 8
SPACER
6125115001
€ 21.00
9
6126215000
ref: 9
COVER
6126215000
€ 84.00
10
0928030001
ref: 10
O RING(D:3,ID:29.5)
0928030001
€ 2.00
11
0916014009
ref: 11
WASHER(14.5X29X2.3)
0916014009
€ 3.50
12
643113211008C
ref: 12
TORQUE LINK, REAR
€ 0.00
13
0911108012
ref: 13
BOLT(8X22.5)
0911108012
€ 3.00
14
0914008008
ref: 14
NUT
0914008008
€ 1.50
15
0832121088
ref: 15
LOCK WASHER
0832121088
€ 2.00
16
0938510001
ref: 16
CLIP
0938510001
€ 1.50
17
0911110009
ref: 17
BOLT(10X32.5)
0911110009
€ 5.00
18
0831022108
ref: 18
NUT
0831022108
€ 2.50
19
0832121108
ref: 19
LOCK WASHER
0832121108
€ 2.00
20
0832211128
ref: 20
WASHER
0832211128
€ 2.00
21
6134130500
ref: 21
GUIDE,CHAIN
6134130500
€ 13.00
22
0832121088
ref: 22
LOCK WASHER
0832121088
€ 2.00
23
0110708128
ref: 23
BOLT 8X12
0110708128
€ 2.50
