CRANKCASE

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

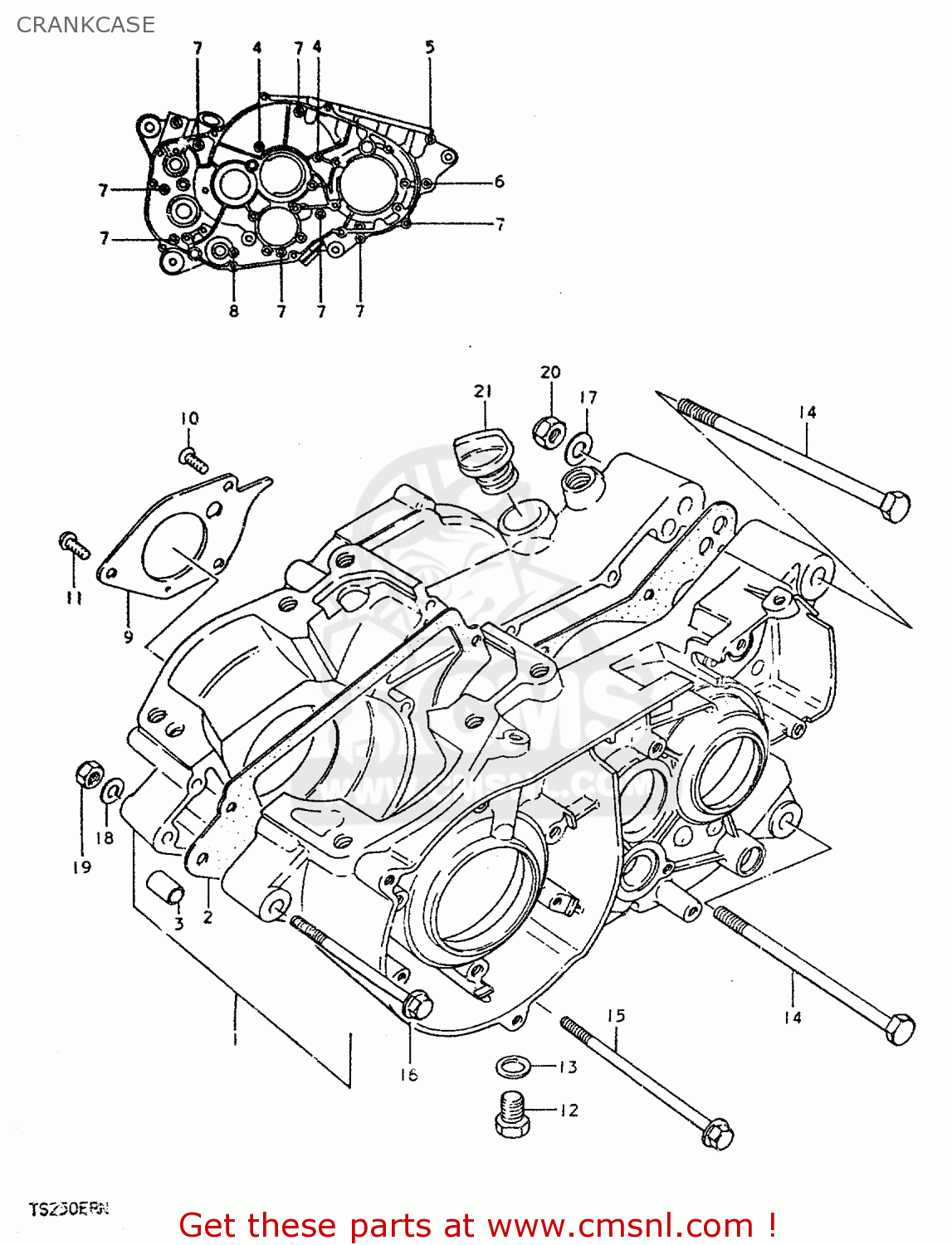

Crankcase diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1130030871
ref: 1

CRANKCASE SET

€ 110.00

1148130500
ref: 2

GASKET,CRANKCASE (MCA)

€ 16.00

0920613001
ref: 3

PIN

€ 2.50

0212206758
ref: 4

SCREW

€ 2.50

0211206658
ref: 5

SCREW 6X65

€ 2.00

0211206508
ref: 6

SCREW

€ 2.50

0211206458
ref: 7

SCREW (6X45)

€ 2.00

0211206358
ref: 8

SCREW (6X35)

€ 2.50

1252130001
ref: 9

PLATE,OIL RESERVOIR

€ 4.50

0212206168
ref: 10

SCREW

€ 2.00

0211206168
ref: 11

SCREW

€ 2.50

0924714007
ref: 12

PLUG

€ 3.50

0916814004
ref: 13

GASKET(14X19.2X2) (NAS)

€ 2.50

0910010051
ref: 14

BOLT

€ 6.50

0910308026
ref: 15

BOLT

€ 3.50

0151708808
ref: 16

BOLT

€ 4.00

0832211108
ref: 17

WASHER

€ 2.50

0832211088
ref: 18

WASHER

€ 2.00

0831931088
ref: 19

NUT

€ 2.50

0831931108
ref: 20

NUT

€ 3.00

0925919001
ref: 21

PLUG

€ 6.00
