REAR FENDER

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

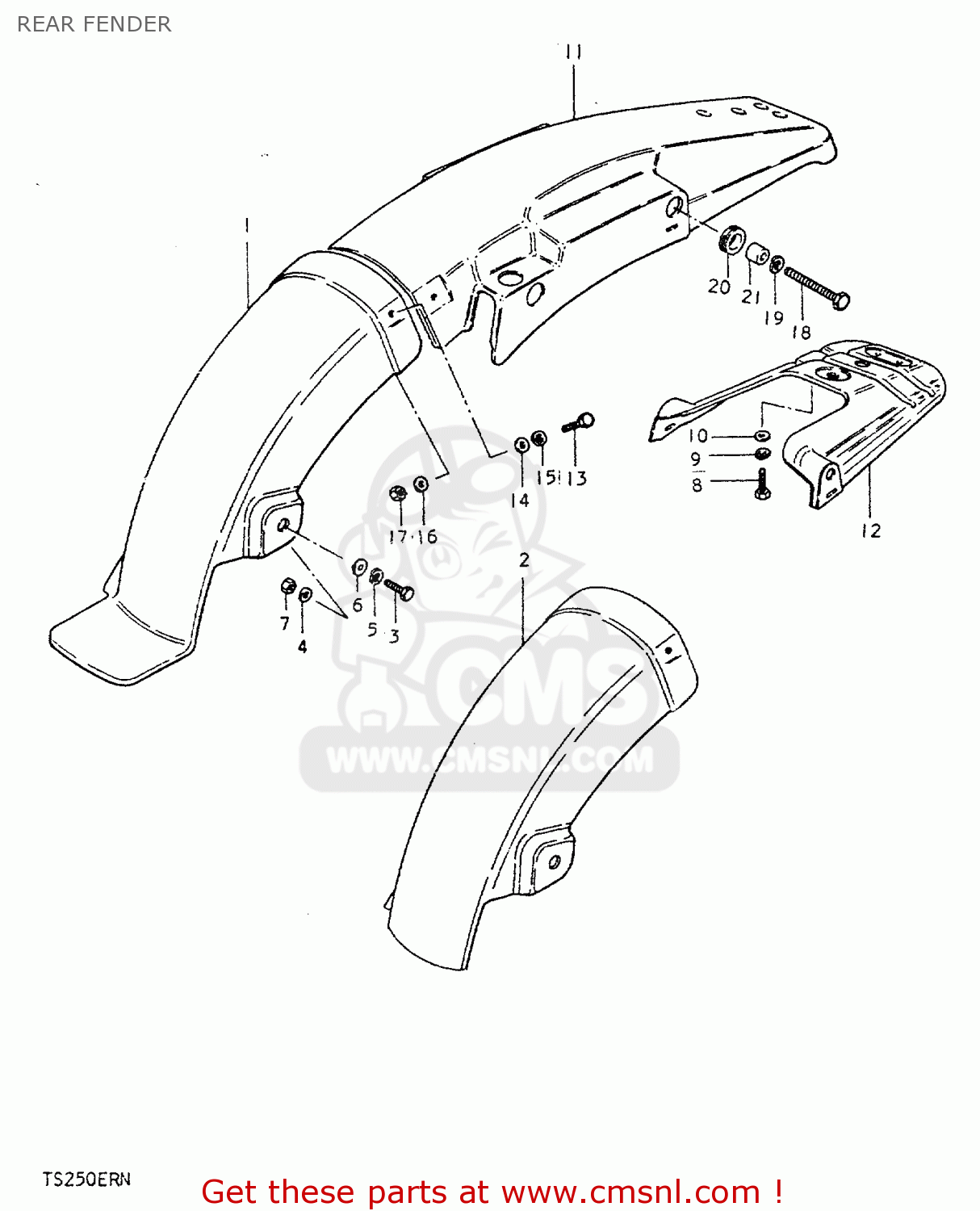

Rear fender diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

REAR FENDER TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
REAR FENDER TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
REAR FENDER TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
6311230900
ref: 1
FENDER,REAR
€ 0.00
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0110706168
ref: 3
BOLT, UPPER
€ 3.00
4
0832221068
ref: 4
WASHER
0832221068
€ 2.00
5
0832121068
ref: 5
LOCK WASHER
0832121068
€ 2.50
6
0916906010
ref: 6
WASHER
0916906010
€ 3.00
7
0831011068
ref: 7
NUT
0831011068
€ 2.50
8
0110706128
ref: 8
BOLT
0110706128
€ 2.00
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
0832221068
ref: 10
WASHER
0832221068
€ 2.00
11-1
631133090007P
ref: 11-1
FENDER, REAR
€ 112.50
11-2
6311330900189
ref: 11-2
FENDER, REAR
€ 112.50
11-3
6311330900163
ref: 11-3
FENDER, REAR
6311330900163
€ 112.50
12
6312030900
ref: 12
REINFORCEMENT,REAR FENDER
€ 0.00
13
0110705168
ref: 13
BOLT
€ 1.50
14
0916005017
ref: 14
WASHER (5.5X16X1.2)
0916005017
€ 2.50
15
0832121058
ref: 15
LOCK WASHER
0832121058
€ 2.00
16
0916005013
ref: 16
WASHER(5.2X16X1)
0916005013
€ 1.50
17
0831011058
ref: 17
NUT
0831011058
€ 2.50
18
0110708308
ref: 18
BOLT (8X30)
0110708308
€ 2.50
19
0832121088
ref: 19
LOCK WASHER
0832121088
€ 2.00
20
0932012011
ref: 20
CUSHION
0932012011
€ 3.00
21
0918008021
ref: 21
SPACER (8.2X12X7.5)
0918008021
€ 3.00
