HEADLAMP

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

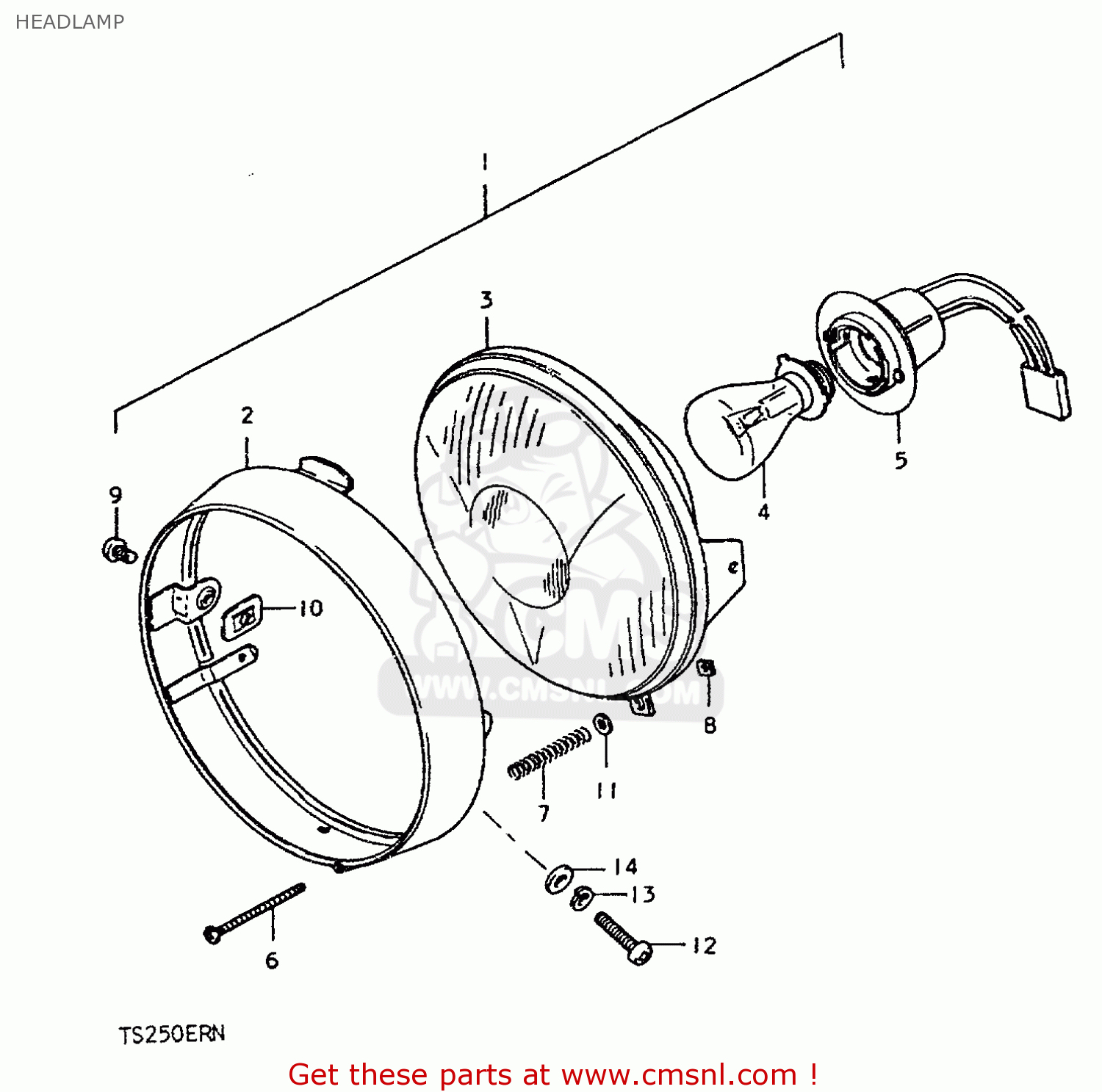

Headlamp diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3510048510
ref: 1

HEADLAMP ASSY

€ 136.50

3511148510
ref: 2

RIM

€ 34.00

3512148510
ref: 3

LAMP UNIT

€ 51.00

0947106029
ref: 4

BULB(6V25/25W,STANLEY,A7007)

€ 9.00

3517125320
ref: 5

SOCKET,HEADLAMP

€ 15.50

3515148510
ref: 6

SCREW,HEADLAMP ADJUST

€ 3.50

3515448510
ref: 7

SPRING

€ 2.50

3515248510
ref: 8

NUT,HEADLAMP ADJUSTER

€ 3.00

0211205088
ref: 9

SCREW

€ 2.00

3515548510
ref: 10

NUT

€ 2.00

3515748510
ref: 11

WASHER

€ 2.50

0211205128
ref: 12

SCREW

€ 2.50

0832121058
ref: 13

LOCK WASHER

€ 2.00

0832221058
ref: 14

WASHER

€ 2.50
