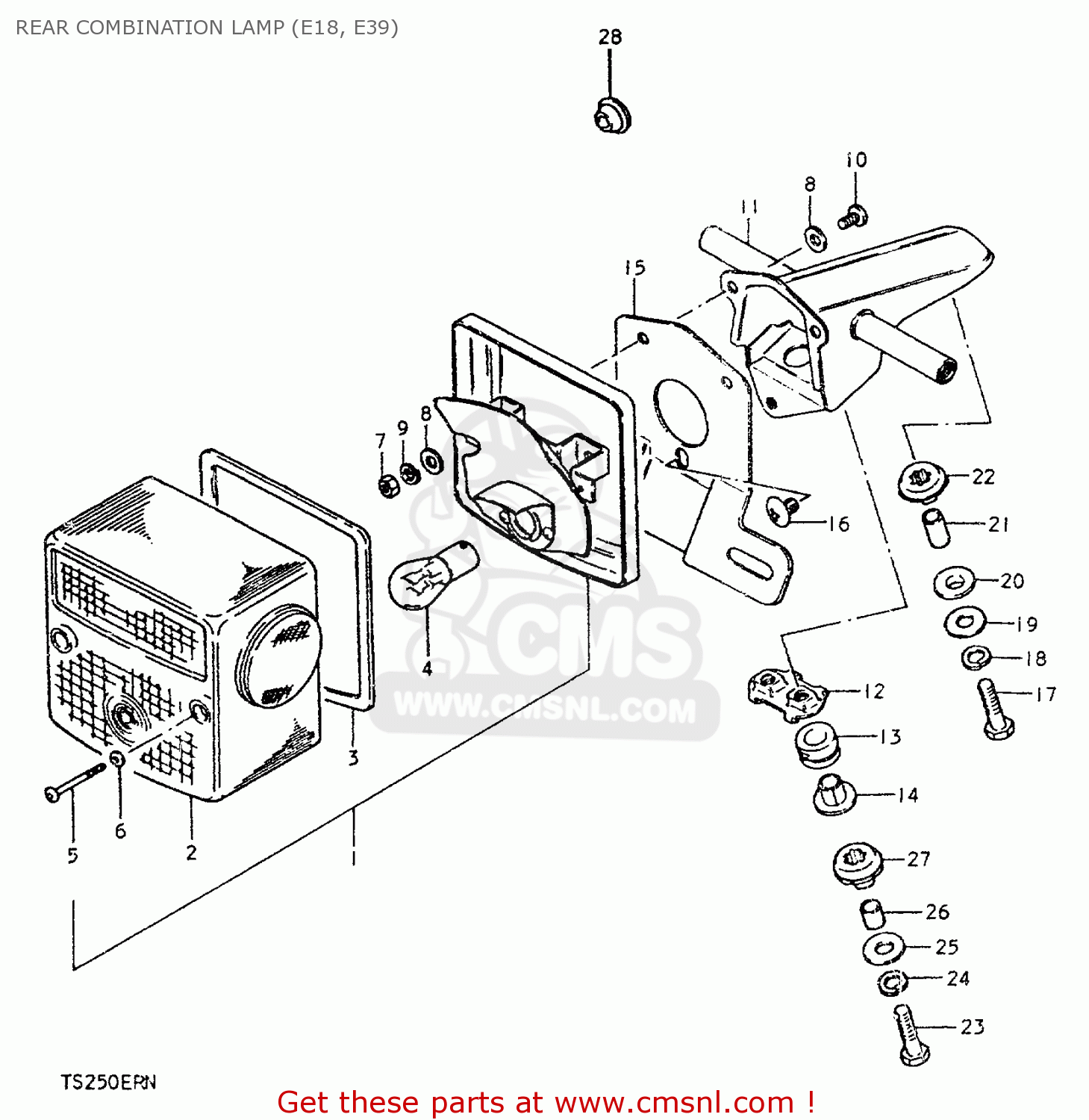

REAR COMBINATION LAMP (E18, E39)

ref

part #

description

quantity

1

3572030980
ref: 1

LAMP UNIT, REAR COMBINATION

€ 0.00

2

3571230622
ref: 2

LENS

€ 45.00

3

3571348510
ref: 3

GASKET (NAS)

€ 8.50

4

0947106042
ref: 4

BULB (6V,21/5W)

€ 12.50

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0831011058
ref: 7

NUT

€ 2.50

8

0832221088
ref: 8

WASHER

€ 2.00

9

0832121055
ref: 9

WASHER,LOCK

€ 3.00

10

0211205165
ref: 10

SCREW

€ 2.00

11

3573030950
ref: 11

BRACKET ASSY

€ 0.00

12

3571630950
ref: 12

PLATE

€ 10.50

13

3576530950
ref: 13

CUSHION

€ 18.00

14

3576630950
ref: 14

SPACER

€ 2.00

15

3592730950
ref: 15

PLATE, LICENSE

€ 0.00

16

0214206088
ref: 16

SCREW, PLATE

€ 1.00

17

0110706308
ref: 17

BOLT

€ 2.50

18

0832121068
ref: 18

LOCK WASHER

€ 2.50

19

0916006027
ref: 19

WASHER (6.5X20X1.2)

€ 2.00

20

0932009010
ref: 20

CUSHION

€ 2.50

21

0918006072
ref: 21

SPACER

€ 2.00

22

0932009003
ref: 22

CUSHION

€ 2.00

23

0110706458
ref: 23

BOLT

€ 2.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

0916006027
ref: 25

WASHER (6.5X20X1.2)

€ 2.00

26

0918006061
ref: 26

SPACER

€ 2.50

27

0932009011
ref: 27

CUSHION

€ 2.50

28

0930807004
ref: 28

GROMMET

€ 2.50
