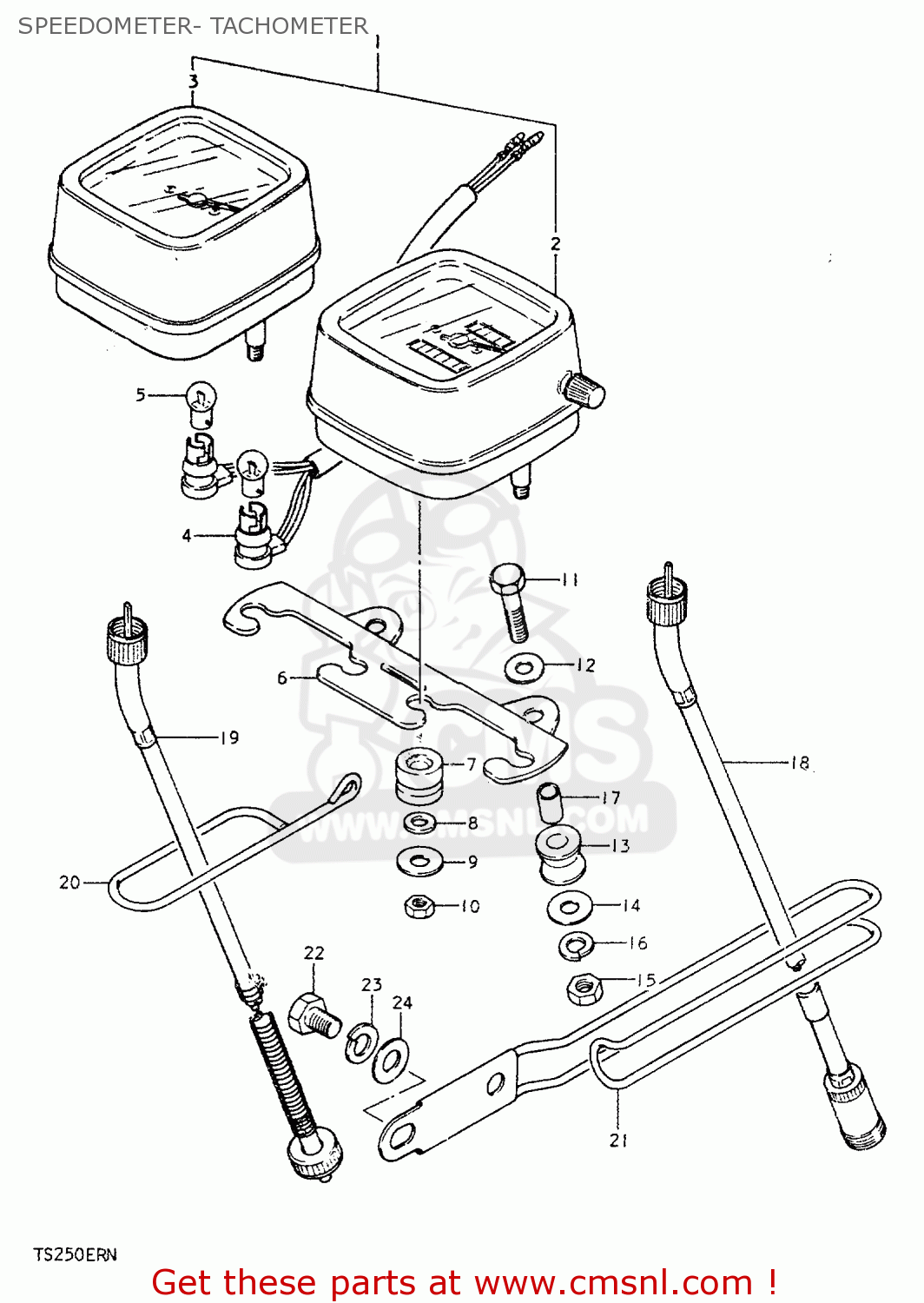

SPEEDOMETER- TACHOMETER

ref

part #

description

quantity

1-1

3410030900
ref: 1-1

SPEEDOMETER & TACHOMETER (KILO SCALE)

€ 0.00

1-2

3410030930
ref: 1-2

SPEEDOMETER & TACHOMETER (KILO & MILE SC

€ 0.00

2-1

3411048540
ref: 2-1

SPEEDOMETER (KILO SCALE)

€ 191.50

2-2

3411030930
ref: 2-2

SPEEDOMETER (KILO & MILE SCALE)

€ 216.00

3

3421030900
ref: 3

TACHOMETER

€ 109.00

4

3417346770
ref: 4

SOCKET,METER

€ 15.50

5

0947106002
ref: 5

BULB(6V/3W)

€ 2.50

6

3495030900
ref: 6

BRACKET,METER

€ 37.50

7

3418946760
ref: 7

CUSHION,METER

€ 0.00

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

3418130520
ref: 9

WASHER,METER

€ 1.50

10

3418548540
ref: 10

NUT

€ 2.50

11

0110706308
ref: 11

BOLT

€ 2.50

12

0832221068
ref: 12

WASHER

€ 2.00

13

3495615100
ref: 13

CUSHION

€ 4.00

14

0916006007
ref: 14

WASHER

€ 2.00

15

0831011068
ref: 15

NUT

€ 2.50

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0918006040
ref: 17

SPACER (6.1X8X15.5)

€ 2.00

18

3491030910
ref: 18

CABLE ASSEMBLY,SPEEDOMETER

€ 31.50

19

3494030900
ref: 19

CABLE ASSEMBLY,TACHOMETER

€ 23.50

20

3494830900
ref: 20

GUIDE,TACHOMETER CABLE

€ 0.00

21

5862030501
ref: 21

GUIDE,CABLE

€ 16.00

22

0110708128
ref: 22

BOLT 8X12

€ 2.50

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

0832211088
ref: 24

WASHER

€ 2.00

all assemblies
