MAGNETO (E16)

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

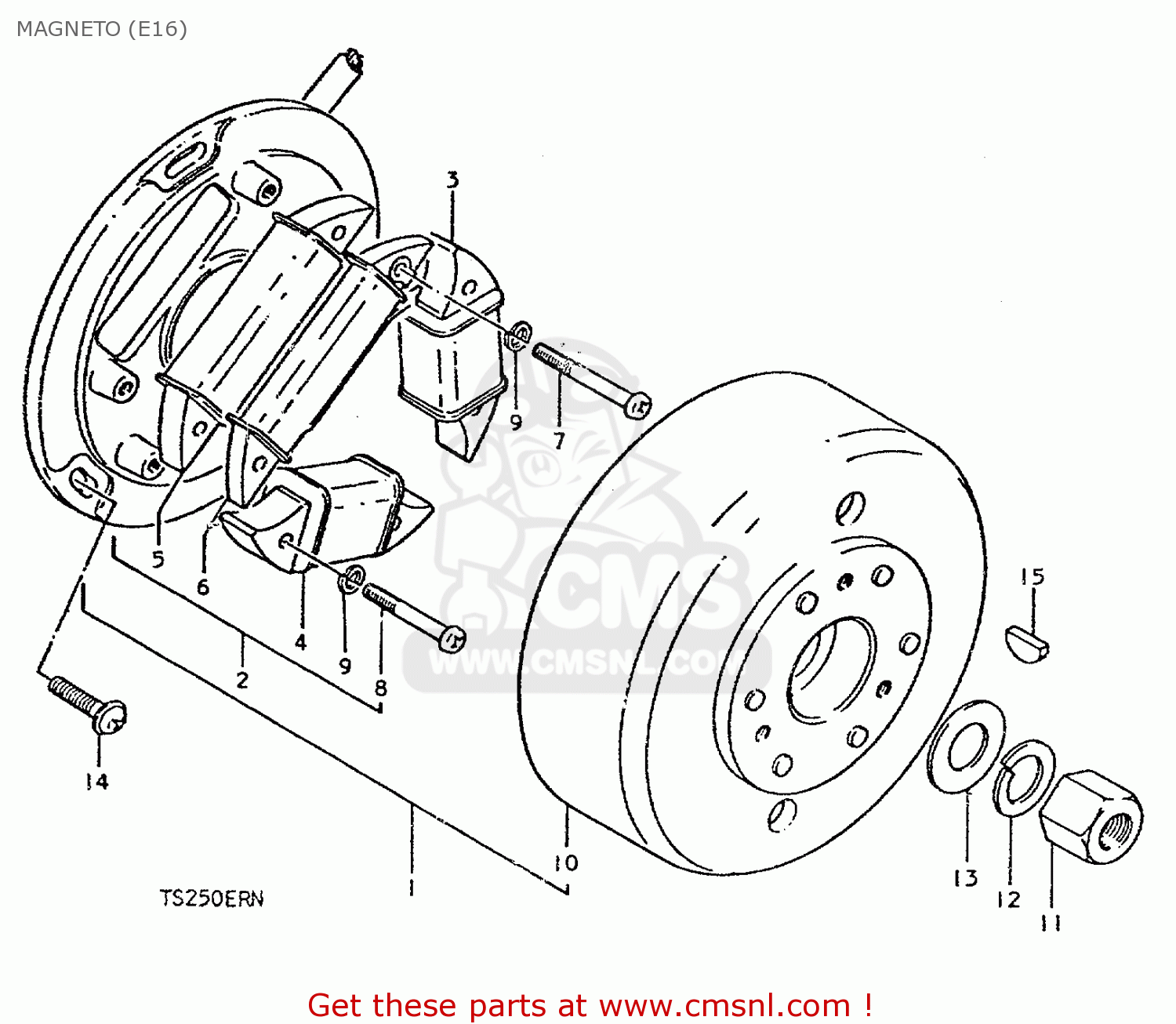

Magneto (e16) diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3210030520
ref: 1

MAGNETO ASSY

€ 0.00

3210130520
ref: 2

STATOR ASSY

€ 0.00

3212030520
ref: 3

COIL, LIGHTING

€ 0.00

3213030620
ref: 4

COIL,LIGHTING

€ 72.50

3214032020
ref: 5

COIL

€ 224.50

3215032020
ref: 6

COIL,PULSER

€ 210.50

0211105357
ref: 7

SCREW 5X35

€ 1.50

0211205208
ref: 8

SCREW 5X20

€ 3.00

0832121058
ref: 9

LOCK WASHER

€ 2.00

3210230626
ref: 10

ROTOR,FLYWHEEL

€ 339.50

0914014011
ref: 11

NUT

€ 3.50

0832121148
ref: 12

LOCK WASHER

€ 2.00

0916014015
ref: 13

WASHER(14X27X3)

€ 4.00

0913905011
ref: 14

SCREW(5X14)

€ 3.00

0834131049
ref: 15

KEY 4MM

€ 3.50
