RIGHT HANDLE SWITCH

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

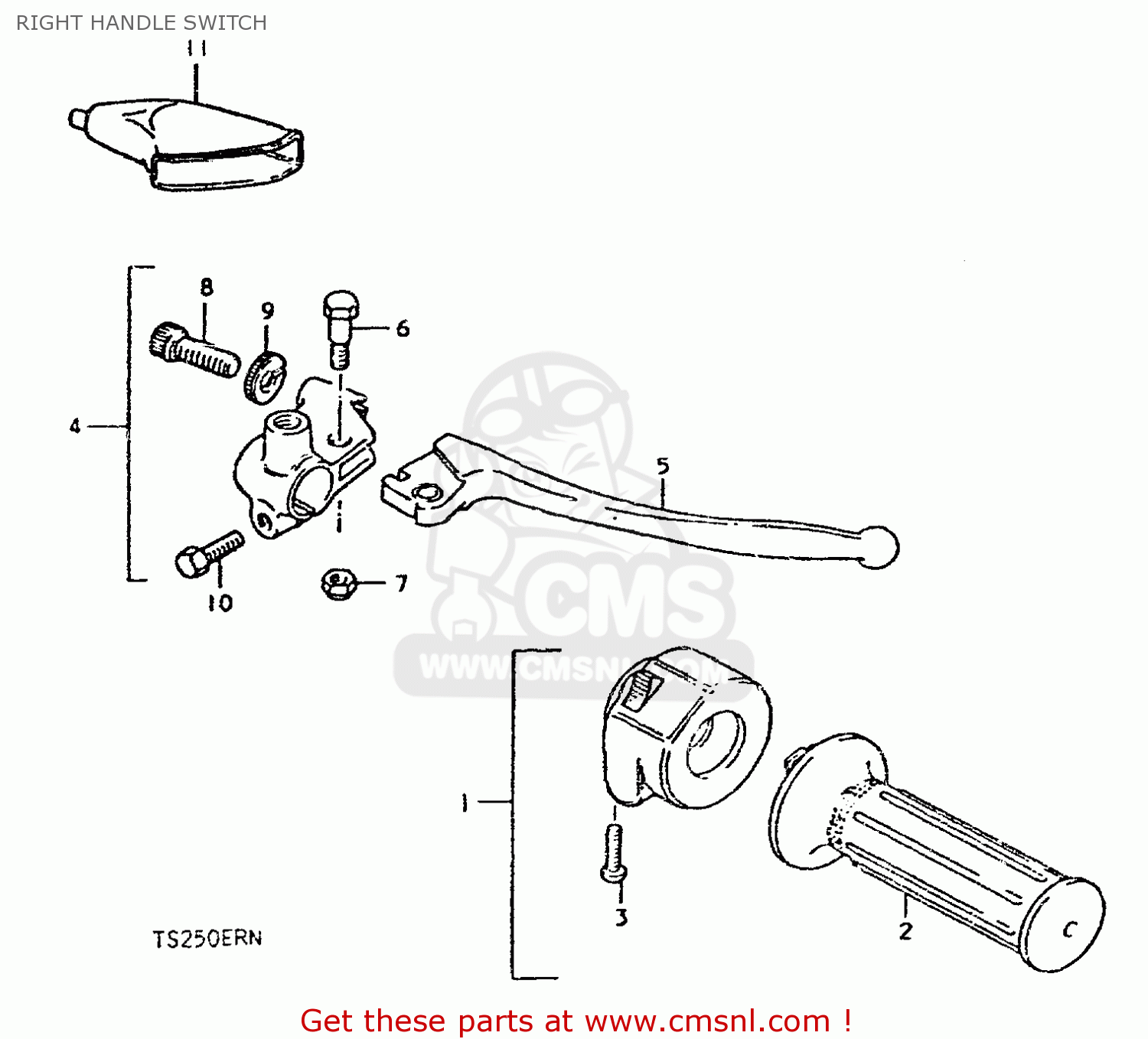

Right handle switch diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

5710030510
ref: 1

CASE ASSEMBLY,THROTTLE

€ 59.00

5711030501
ref: 2

GRIP,THROTTLE

€ 22.50

0211205258
ref: 3

SCREW

€ 2.00

5730030511
ref: 4

LEVER ASSY, BRAKE

€ 59.00

5742018602
ref: 5

LEVER,BRAKE

€ 37.00

5743111010
ref: 6

BOLT,LEVER

€ 6.00

0831921068
ref: 7

NUT 6MM

€ 2.00

5744111010
ref: 8

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 9

NUT,CABLE ADJUSTER

€ 4.00

0110706208
ref: 10

BOLT

€ 2.00

5734140001
ref: 11

COVER,CLUTCH LEVER

€ 7.50
