OIL TANK

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

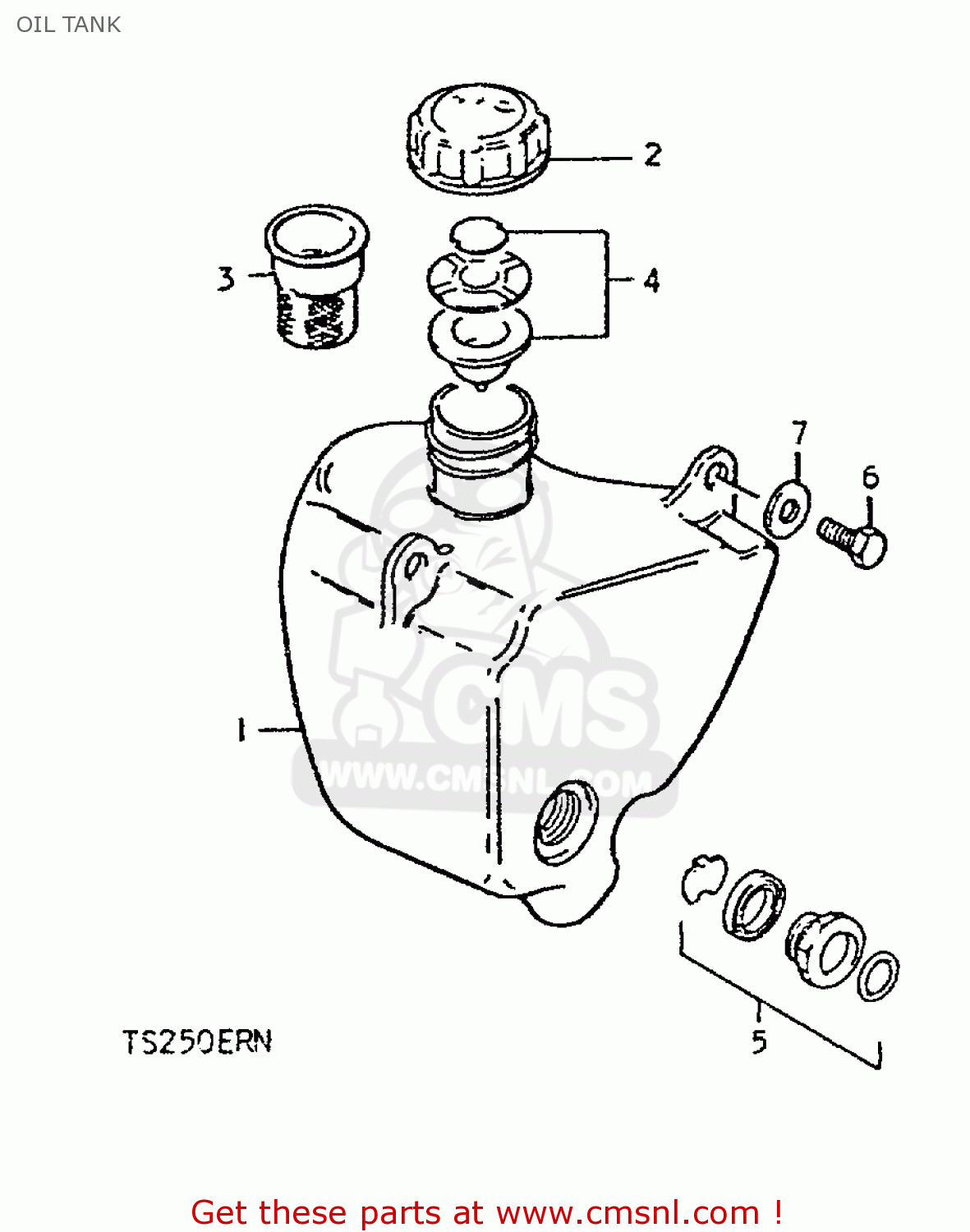

Oil tank diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

OIL TANK TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

OIL TANK TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

4461130501
ref: 1

TANK,OIL

€ 38.50

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4466535000
ref: 3

FILTER,OIL TANK INLET

€ 7.00

4

4460030832
ref: 4

GASKET SET (NAS)

€ 6.00

5

4460046810
ref: 5

LENS SET,OIL LEVEL

€ 6.50

6

0110706168
ref: 6

BOLT, UPPER

€ 3.00

7

0916006007
ref: 7

WASHER

€ 2.00
