TURN SIGNAL LAMP

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

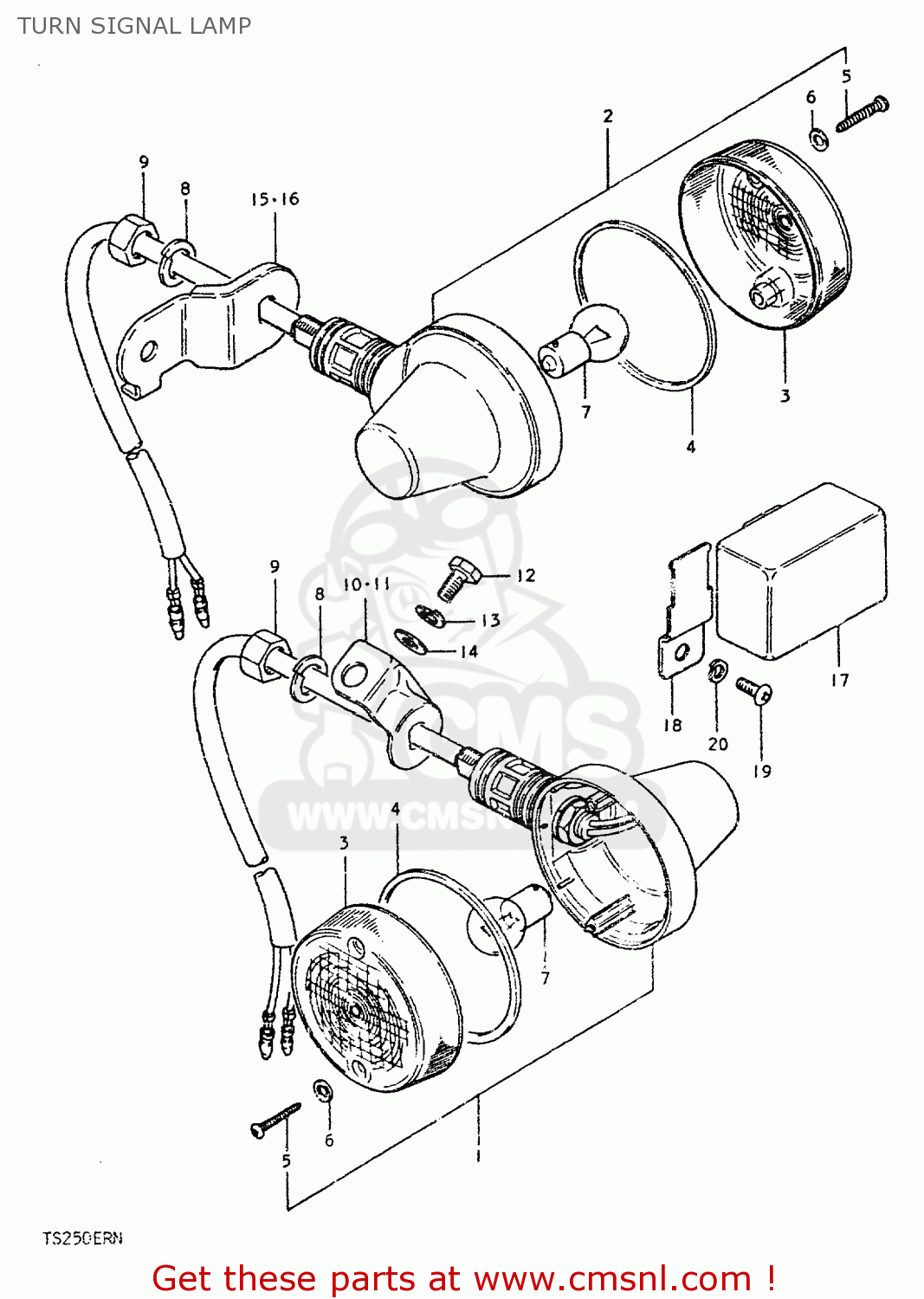

Turn signal lamp diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

TURN SIGNAL LAMP TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
TURN SIGNAL LAMP TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
TURN SIGNAL LAMP TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
3560348521999
ref: 1
LAMP ASSY,RR TURNSIGNAL
3560348521999
€ 72.50
2
3560348521999
ref: 2
LAMP ASSY,RR TURNSIGNAL
3560348521999
€ 72.50
3
3561248510
ref: 3
LENS
3561248510
€ 10.50
4
3561328620
ref: 4
GASKET (NAS)
3561328620
€ 7.00
5
0321104258
ref: 5
SCREW TAPP.
0321104258
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947106011
ref: 7
BULB(6V17W,STANLEY,A4513A)
0947106011
€ 9.50
8
0832121128
ref: 8
WASHER,LOCK 12
0832121128
€ 2.50
9
0831012128
ref: 9
NUT
0831012128
€ 3.00
10
512512990008C
ref: 10
BRACKET,TURN SIGNAL LAMP
€ 7.50
11
512522990008C
ref: 11
BRACKET,TURN SIGNAL LAMP
€ 7.50
12
0110706128
ref: 12
BOLT
0110706128
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0832221068
ref: 14
WASHER
0832221068
€ 2.00
15
4158048500
ref: 15
BRACKET,REAR TURN SIGNAL
4158048500
€ 14.00
16
4159048500
ref: 16
BRACKET,REAR TURN SIGNAL
4159048500
€ 14.50
17
3861048600
ref: 17
RELAY,TURN SIGNAL
€ 46.50
18
3862122200
ref: 18
BRACKET,TURN SIGNAL RELAY
€ 6.00
19
0211206128
ref: 19
SCREW 6X12
0211206128
€ 2.00
20
0832121068
ref: 20
LOCK WASHER
0832121068
€ 2.50
