FRONT FENDER

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

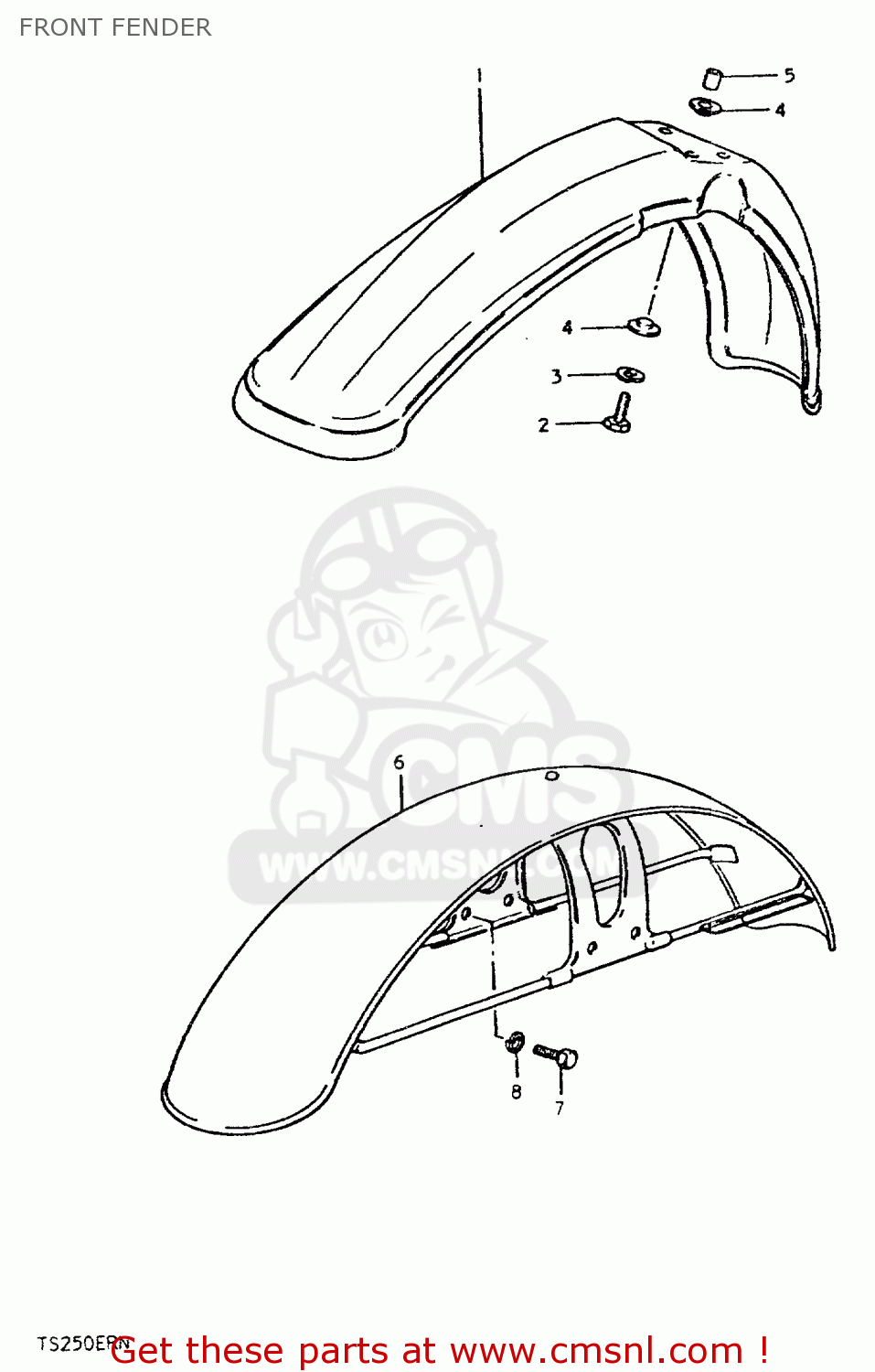

Front fender diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

FRONT FENDER TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

FRONT FENDER TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1-1

5311148500163
ref: 1-1

FENDER,FR

€ 74.50

1-2

5311148500189
ref: 1-2

FENDER, FRONT (WHITE)

€ 157.00

1-3

531114850007P
ref: 1-3

FENDER, FRONT (RED)

€ 81.50

2

0110706358
ref: 2

BOLT

€ 2.50

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

0918006048
ref: 4

SPACER

€ 2.00

5

0918006026
ref: 5

SPACER

€ 3.50

6

5311032400
ref: 6

FENDER, FRONT

€ 190.00

7

0110708168
ref: 7

BOLT

€ 2.00

8

0832121088
ref: 8

LOCK WASHER

€ 2.00
