HEADLAMP (E18, E21, E22, E39)

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

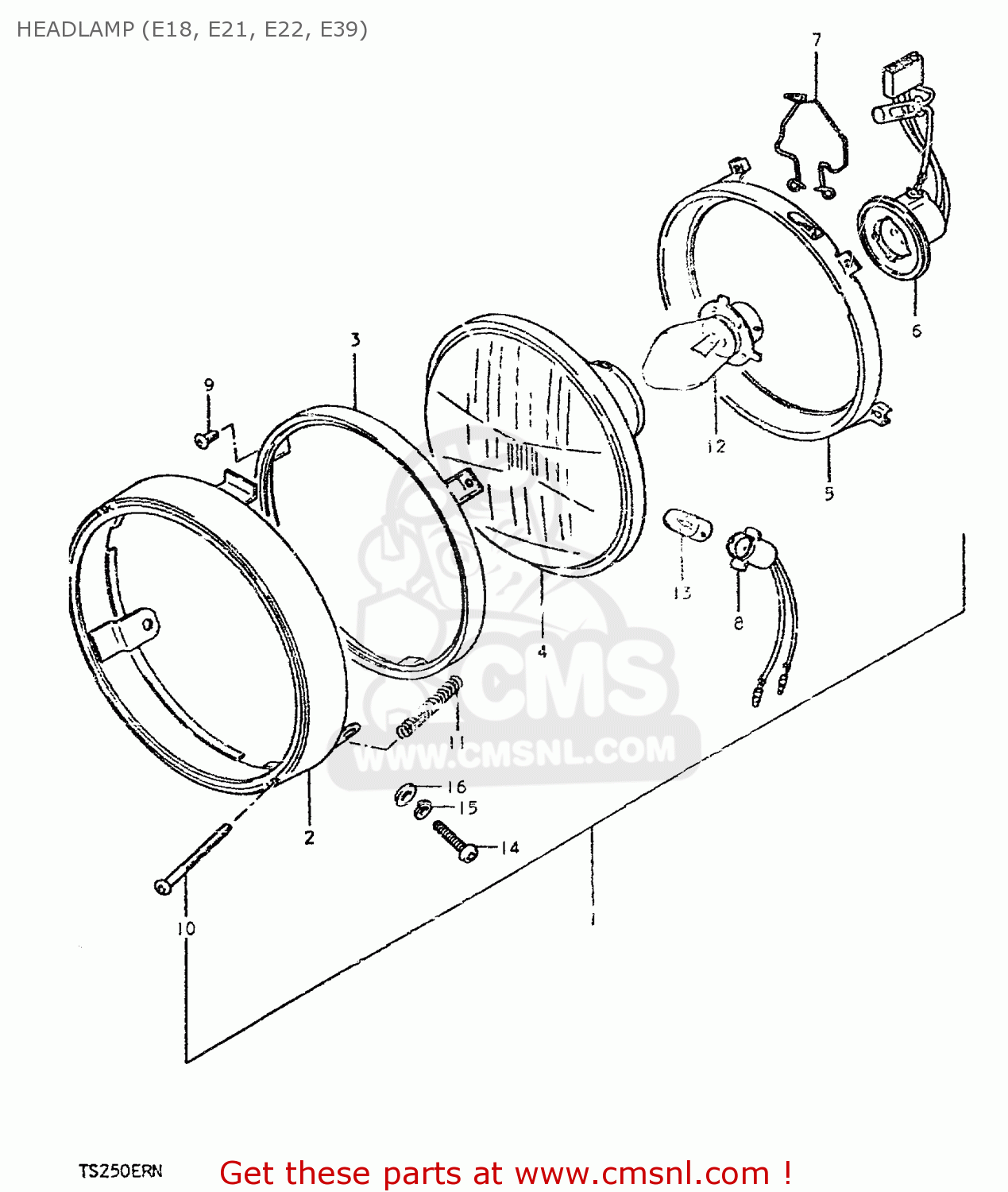

Headlamp (e18, e21, e22, e39) diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3510048550999
ref: 1

HEADLAMP ASSY

€ 141.50

3511148530
ref: 2

RIM

€ 34.00

3512748530
ref: 3

RETAINER,HEADLAMP

€ 13.00

3512128671
ref: 4

UNIT

€ 59.50

3513048540
ref: 5

RING, MOUNTING

€ 18.00

3517136650
ref: 6

SOCKET

€ 27.00

3517228660
ref: 7

CLAMP,HEADLAMP

€ 7.00

3611828660
ref: 8

SOCKET

€ 11.50

0211104087
ref: 9

SCREW

€ 1.50

3515133611
ref: 10

SCREW,HEADLAMP ADJUST

€ 4.00

3515431900
ref: 11

SPRING,ADJUSTING

€ 3.50

0947106018
ref: 12

BULB (6V,25/25W)

€ 0.00

0947106047
ref: 13

BULB (6V,4W)

€ 0.00

0211205168
ref: 14

SCREW

€ 2.50

0832121058
ref: 15

LOCK WASHER

€ 2.00

0832221058
ref: 16

WASHER

€ 2.50
