PILOT BOX

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

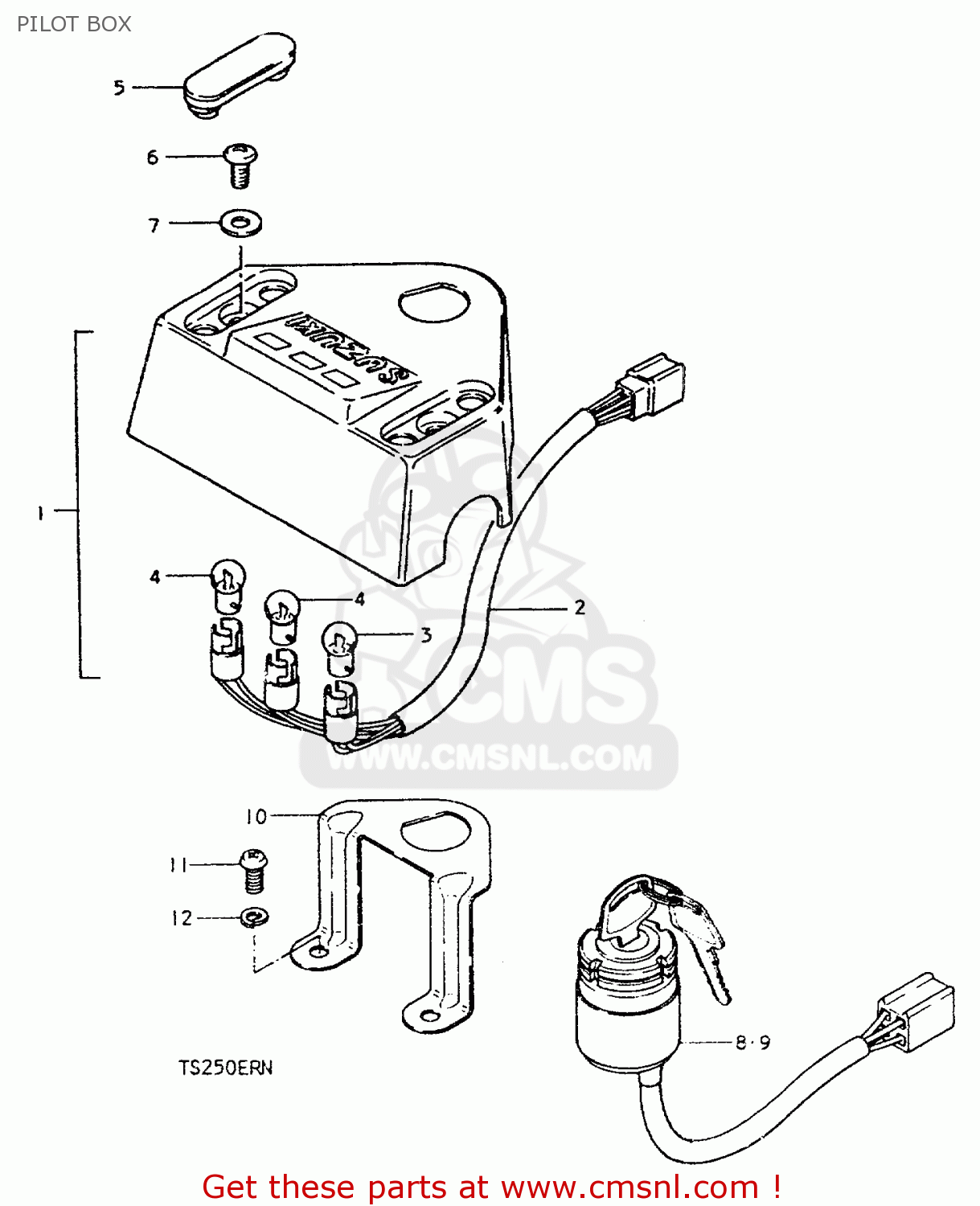

Pilot box diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

PILOT BOX TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

PILOT BOX TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

3638048500
ref: 1

CASE,PILOT BULB

€ 85.50

2

3632548500
ref: 2

SOCKET

€ 22.00

3

0947106001
ref: 3

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

4

0947106002
ref: 4

BULB(6V/3W)

€ 2.50

5

3638848500
ref: 5

CAP,PILOT BOX BOLT

€ 4.50

6

0211206128
ref: 6

SCREW 6X12

€ 2.00

7

0832221068
ref: 7

WASHER

€ 2.00

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

3711048510
ref: 9
E2,E4,E16,E21

SWITCH ASSY, IGNITION

€ 70.00

10

3711548501
ref: 10

BRACKET,IGNITION SWITCH

€ 7.50

11

0211206108
ref: 11

SCREW

€ 1.50

12

0832121068
ref: 12

LOCK WASHER

€ 2.50
