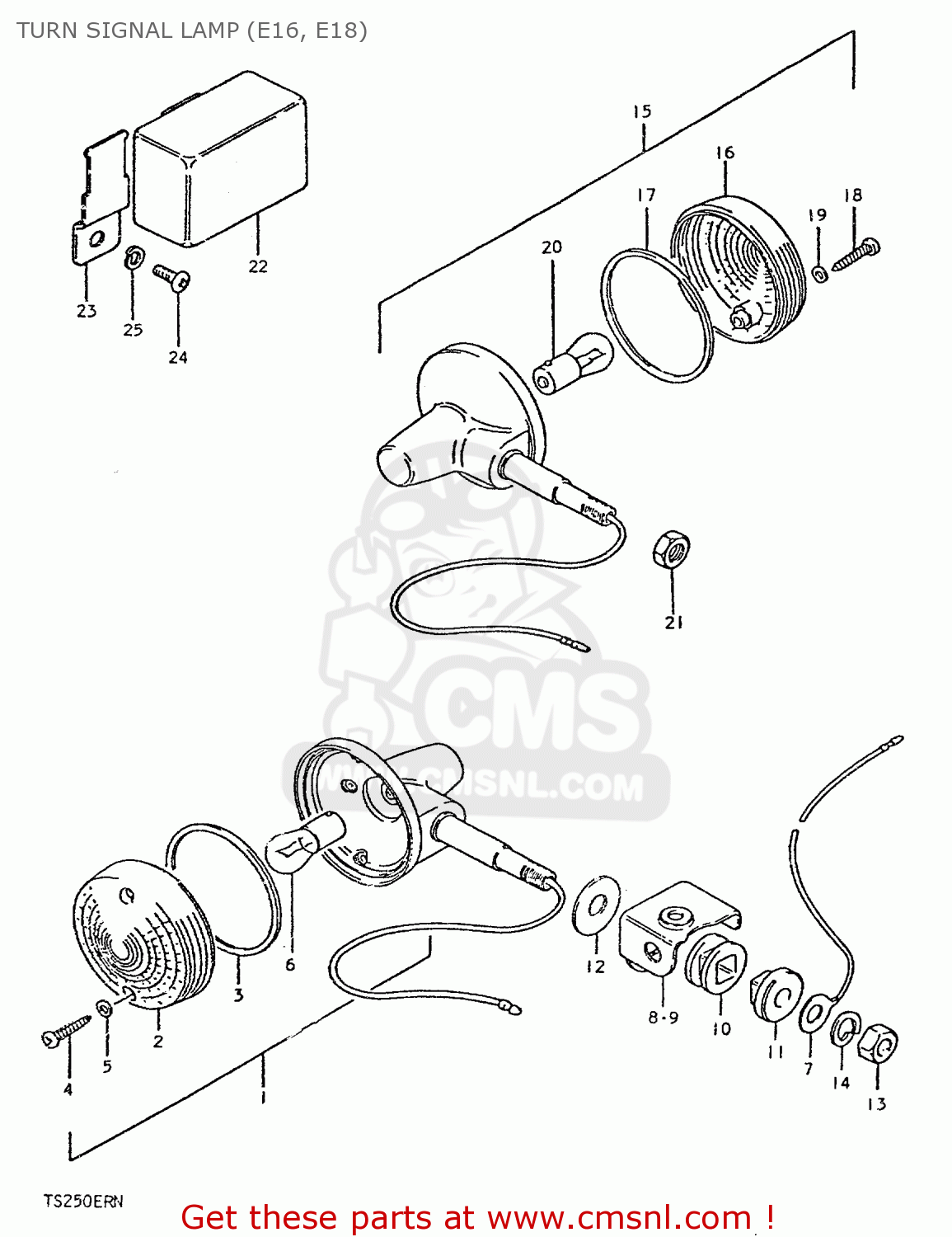

TURN SIGNAL LAMP (E16, E18)

ref

part #

description

quantity

1

3560148580999
ref: 1

LAMP, FRONT TURN SIGANL

€ 69.00

2

3561228620
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

3562347610
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947106033
ref: 6

BULB (6V,21W)

€ 0.00

7

3666033000
ref: 7

LEAD WIRE,EARTH

€ 5.00

8

512513090108C
ref: 8

BRACKET, FRONT TURN SIGNAL LAMP RH

€ 4.00

9

512523090108C
ref: 9

BRACKET, FRONT TURN SIGNAL LAMP LH

€ 11.00

10

3569032200
ref: 10

CUSHION

€ 38.50

11

3569532200
ref: 11

SPACER,RR TURNSIGNAL LAMP

€ 42.00

12

0916010006
ref: 12

WASHER (10.5X30X2.3)

€ 2.50

13

0831012108
ref: 13

NUT

€ 2.50

14

0832121108
ref: 14

LOCK WASHER

€ 2.00

15

3560348580999
ref: 15

LAMP, REAR TURN SIGNAL

€ 27.00

16

3565239181
ref: 16

LENS

€ 0.00

17

3561328620
ref: 17

GASKET (NAS)

€ 7.00

18

3562347610
ref: 18

SCREW

€ 1.50

19

3562743010
ref: 19

GASKET (NAS)

€ 2.00

20

0947106033
ref: 20

BULB (6V,21W)

€ 0.00

21

0831022108
ref: 21

NUT

€ 2.50

22

3861048611
ref: 22

RELAY, TURN SIGNAL

€ 51.50

23

3862122200
ref: 23

BRACKET,TURN SIGNAL RELAY

€ 6.00

24

0211206128
ref: 24

SCREW 6X12

€ 2.00

25

0832121068
ref: 25

LOCK WASHER

€ 2.50
