REAR BRAKE

TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

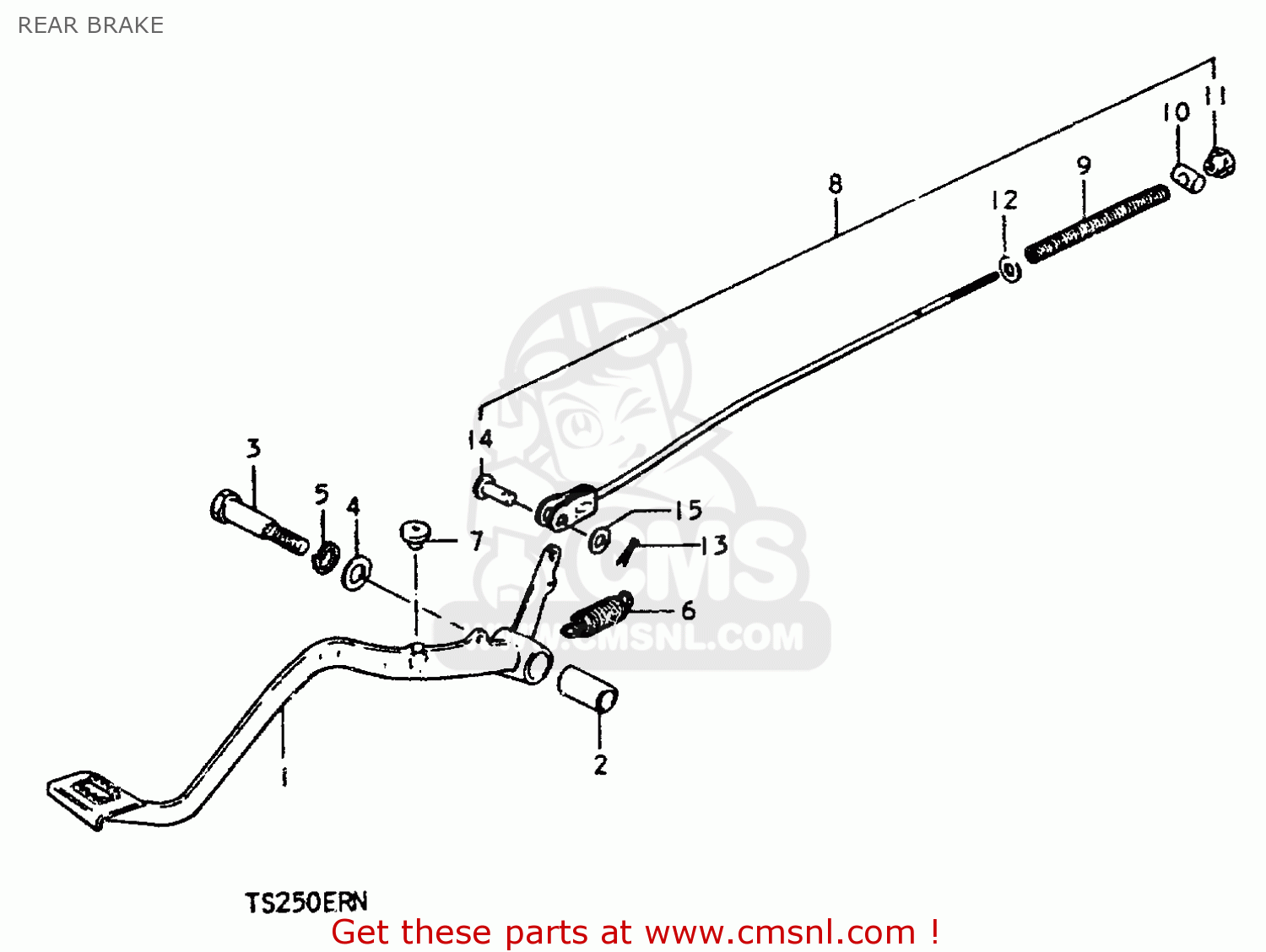

Rear brake diagram TS250ER 1979 (N) (E01 E02 E04 E16 E18 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

4311030500
ref: 1

PEDAL,BRAKE

€ 26.50

0918010001
ref: 2

SPACER(10.5X16X30)

€ 3.50

0910010014
ref: 3

BOLT

€ 2.50

0832221108
ref: 4

WASHER

€ 2.50

0832121108
ref: 5

LOCK WASHER

€ 2.00

0944314013
ref: 6

SPRING

€ 21.50

4315530500
ref: 7

STOPPER,BRAKE PEDAL

€ 2.00

4330030500
ref: 8

ROD ASSEMBLY,REAR BRAKE

€ 12.50

0944009004
ref: 9

SPRING

€ 2.00

0920913003
ref: 10

PIN

€ 3.50

0915006001
ref: 11

NUT

€ 3.50

0832221058
ref: 12

WASHER

€ 2.50

0411120208
ref: 13

PIN 20X20

€ 1.50

0920006013
ref: 14

PIN(L:13.5)

€ 2.00

0832221068
ref: 15

WASHER

€ 2.00
