BATTERY

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

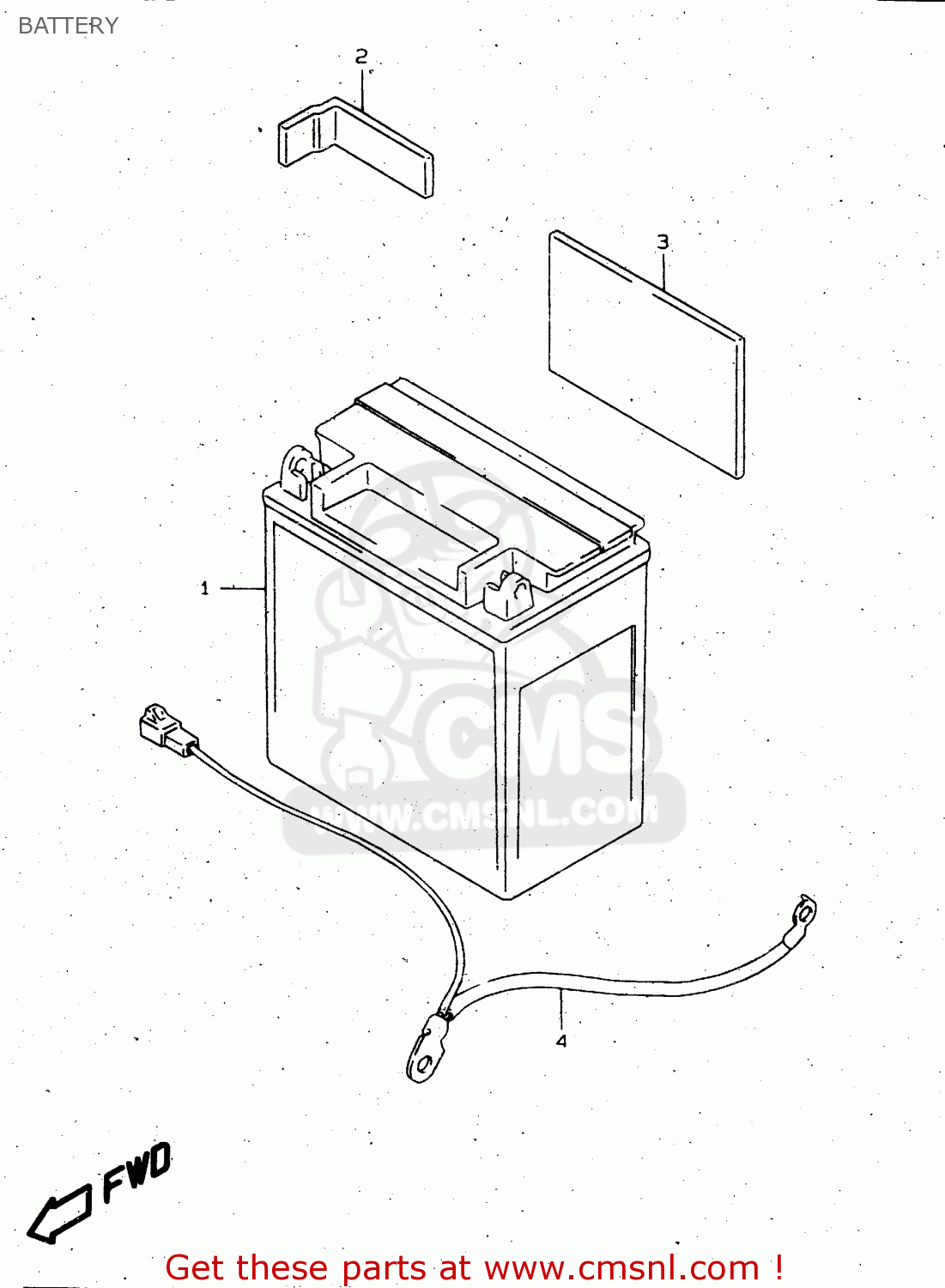

Battery diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

BATTERY VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

BATTERY VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3361038B50
ref: 1
FTH16-BS-1

BATTERY ASSEMBLY 12V14AH,F

€ 74.50

2

3365207D00
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(80X80X2)

€ 4.50

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3386038B00
ref: 4

WIRE,BATTERY MINUS LEAD

€ 14.00

all assemblies
