FRONT MASTER CYLINDER

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

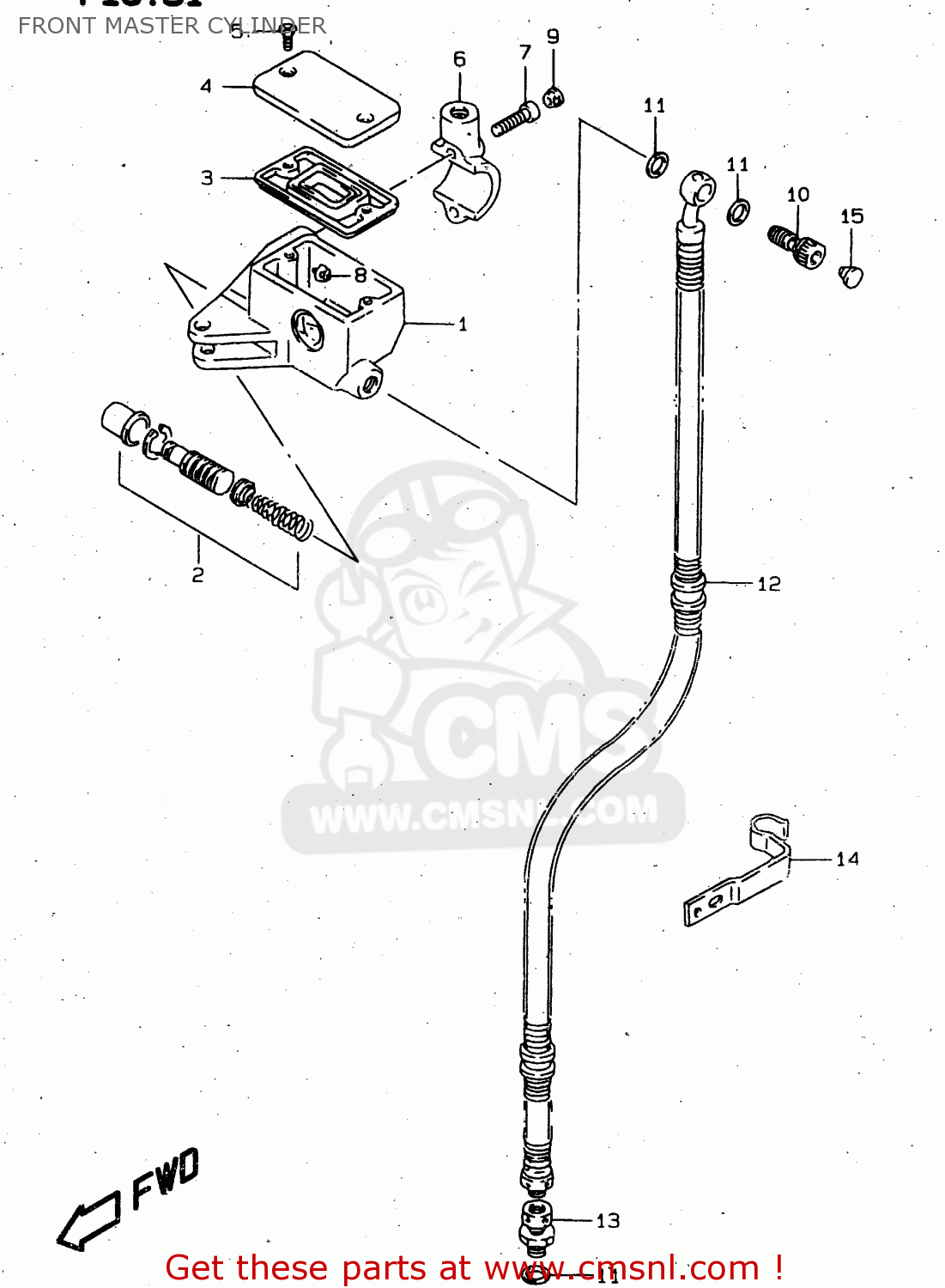

Front master cylinder diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

FRONT MASTER CYLINDER VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

FRONT MASTER CYLINDER VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

5960038B30
ref: 1

CYLINDER ASSY,FR MASTER

€ 280.50

2

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

3

5966749460
ref: 3

5966749460

4

5966938B10
ref: 4

CAP

€ 67.50

5

0212204127
ref: 5

SCREW

€ 2.00

6

5967138A00
ref: 6

HOLDER

€ 37.50

7

0713006207
ref: 7

BOLT

€ 3.50

8

5966448B00
ref: 8

PROTECTOR

€ 8.00

9

0925005008
ref: 9

CAP(OD:10)

€ 5.00

10

0936010027
ref: 10

BOLT UNION

€ 9.00

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

12

5948038B30
ref: 12

HOSE,FR BRAKE

€ 155.50

13

5929043500
ref: 13

ADAPTER,BRAKE HOSE

€ 34.50

14

5926838B01
ref: 14

GUIDE,BRAKE HOSE

€ 8.50

15

0925008014
ref: 15

CAP(OD:12)

€ 3.50
