FOOTREST

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

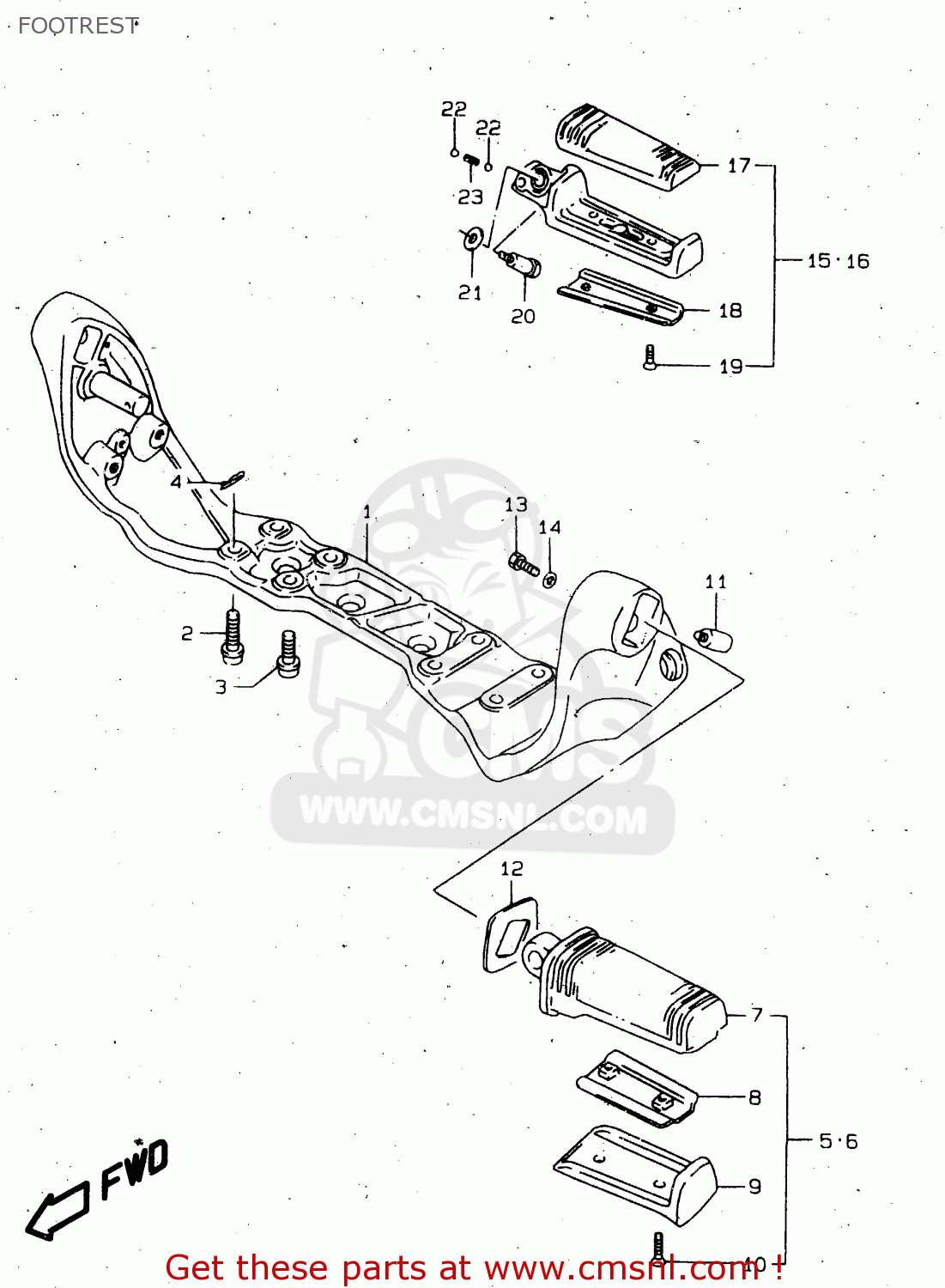

Footrest diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

FOOTREST VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
FOOTREST VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
FOOTREST VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
4351039B00
ref: 1
MODEL T
BRACKET,FRONT FOOTREST
€ 769.00
1
4351039B10
ref: 1
MODEL V/W/X
BRACKET COMP,FRONT FOOTREST
€ 769.00
2
0910608064
ref: 2
BOLT(8X25)
0910608064
€ 4.50
3
0712008203
ref: 3
BOLT
0712008203
€ 3.00
4
0938508005
ref: 4
SNAP
0938508005
€ 2.00
5
4350138B11
ref: 5
FOOTREST ASSY,FR,R
4350138B11
€ 97.00
6
4350238B11
ref: 6
FOOTREST ASSY,FR,L
4350238B11
€ 97.00
7
4355138B00
ref: 7
RUBBER,FR FOOTREST
4355138B00
€ 12.50
8
4358038B10
ref: 8
PLATE,RUBBER STOPPER
4358038B10
€ 8.50
9
4358538B11
ref: 9
COVER,FR FOOTREST
4358538B11
€ 45.50
10
0912705018
ref: 10
SCREW(5X20)
0912705018
€ 2.50
11
4364138B00
ref: 11
BOLT,FRONT FOOTREST
4364138B00
€ 4.50
12
4354638B01
ref: 12
WASHER,FR FOOTREST
4354638B01
€ 5.00
13
0713005123
ref: 13
MODEL T/V/W
BOLT
€ 2.50
13
0211235123
ref: 13
MODEL X
SCREW
0211235123
€ 1.50
14
0832101053
ref: 14
MODEL T/V/W
LOCK,WASHER
€ 3.00
15
4360038A01
ref: 15
FOOTREST ASSY RH
4360038A01
€ 39.50
16
4370038A01
ref: 16
FOOTREST ASSY PILLION LH
4370038A01
€ 35.50
17
4361238A00
ref: 17
RUBBER,PILLION FOOTREST
4361238A00
€ 12.00
18
4363238A00
ref: 18
PLATE,RUBBER STOPPER
4363238A00
€ 4.00
19
0912705017
ref: 19
SCREW(5X16)
0912705017
€ 2.00
20
0911106050
ref: 20
BOLT(6X34.5)
0911106050
€ 5.00
21
0822108164
ref: 21
SHIM
0822108164
€ 1.50
22
0611107004
ref: 22
BALL
0611107004
€ 1.50
23
0944005031
ref: 23
SPRING
0944005031
€ 1.50
