CYLINDER HEAD (FRONT)

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

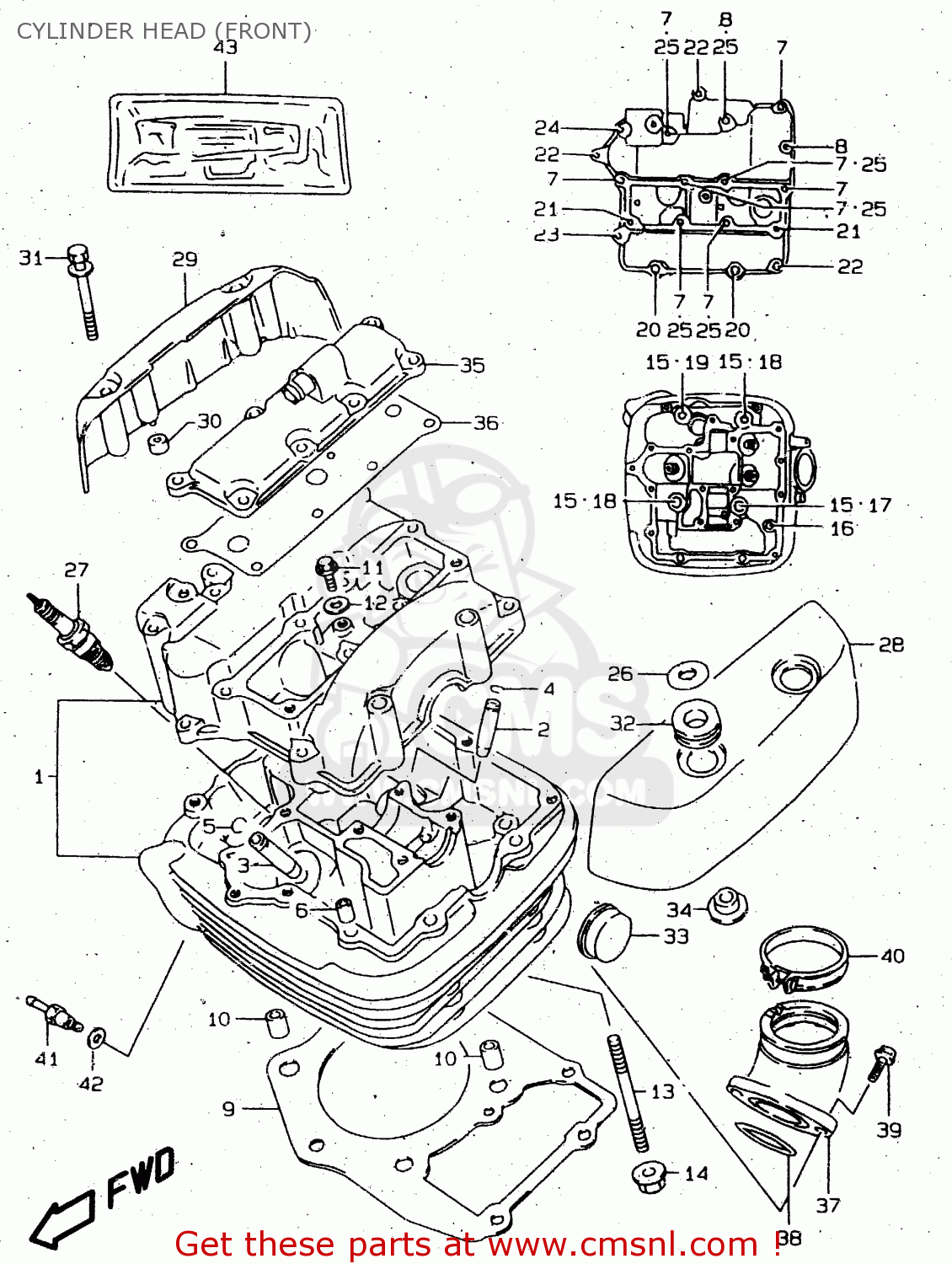

Cylinder head (front) diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CYLINDER HEAD (FRONT) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CYLINDER HEAD (FRONT) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
CYLINDER HEAD (FRONT) VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
1110138B20
ref: 1
MODEL T/V/W
HEAD ASSEMBLY,CYLINDER,FRONT
€ 1,012.00
1
1110138B50
ref: 1
MODEL X
HEAD ASSY,CYLINDER FR
€ 1,059.00
2
1111538B70
ref: 2
GUIDE,INTAKE VALVE
1111538B70
€ 18.50
3
1111545740
ref: 3
GUIDE,INTAKE VALVE
1111545740
€ 25.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0938110003
ref: 5
RING,SNAP
0938110003
€ 2.50
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
0910306064
ref: 7
BOLT(6X60)
0910306064
€ 2.50
8
0910306102
ref: 8
BOLT(6X55)
0910306102
€ 2.50
9
1114138B00
ref: 9
GASKET,CYLINDER HEAD FR (NAS)
1114138B00
€ 49.00
10
0421113189
ref: 10
PIN
0421113189
€ 2.50
11
0712006127
ref: 11
~E.NO.153688
BOLT
0712006127
€ 3.00
11
0712006123
ref: 11
E.NO.153689~
BOLT
€ 3.50
12
0916806018
ref: 12
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
13
0910808142
ref: 13
BOLT,STUD
0910808142
€ 3.00
14
0831610087
ref: 14
NUT
0831610087
€ 2.50
15
0916010060
ref: 15
WASHER (10.5X22X2.3)
0916010060
€ 2.50
16
0910308099
ref: 16
BOLT(8X70)
0910308099
€ 6.00
17
0910310178
ref: 17
BOLT(10X180)
0910310178
€ 12.50
18
0910310179
ref: 18
BOLT(10X190)
0910310179
€ 12.50
19
0910310180
ref: 19
BOLT(10X200)
0910310180
€ 10.50
20
0910308213
ref: 20
BOLT(8X268)
0910308213
€ 22.50
21
0155006207
ref: 21
~E.NO.153688
BOLT
0155006207
€ 2.50
21
0155006203
ref: 21
E.NO.153689~
BOLT
0155006203
€ 2.50
22
0155006307
ref: 22
~E.NO.153688
BOLT
0155006307
€ 2.00
22
0155006303
ref: 22
E.NO.153689~
BOLT
0155006303
€ 2.50
23
0155006357
ref: 23
~E.NO.153688
BOLT
0155006357
€ 2.50
23
0155006353
ref: 23
E.NO.153689~
BOLT
0155006353
€ 2.50
24
0155006707
ref: 24
~E.NO.153688
BOLT
0155006707
€ 3.00
24
0155006703
ref: 24
E.NO.153689~
BOLT
€ 2.50
25
0916806023
ref: 25
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
26
0916008098
ref: 26
MODEL T/V
WASHER (8.2X24X1.6)
€ 2.00
26
0916008130
ref: 26
MODEL W/X
WASHER(8.5X24X1.6)
0916008130
€ 2.00
27
0948200334
ref: 27
PLUG,SPARK(DPR8EA-9)
€ 4.00
27
0948200335111
ref: 27
SPARK PLUG X24EPR-U9
€ 4.00
27
0948200352
ref: 27
MODEL T/V/W OPT
SPARK PLUG DP7EA-9
€ 4.00
27
0948200353111
ref: 27
MODEL T/V/W OPT
SPARK PLUG X22EP-U9
€ 0.00
27
0948200328
ref: 27
MODEL T/V/W OPT
SPARK PLUG DP9EA-9
0948200328
€ 4.00
27
0948200329111
ref: 27
MODEL T/V/W OPT
SPARK PLUG X27EP-U9
€ 4.00
27
0948200354
ref: 27
OPT
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
27
0948200355111
ref: 27
OPT
SPARK PLUG X22EPR-U9
€ 4.00
27
0948200330
ref: 27
OPT
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
27
0948200331111
ref: 27
OPT
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
28
1117138B00
ref: 28
CAP,CYLINDER HEAD COVER FL
1117138B00
€ 145.50
29
1117238B00
ref: 29
CAP,CYLINDER HEAD COVER FR
1117238B00
€ 146.50
30
1127324B00
ref: 30
CUSHION,R CAP
1127324B00
€ 4.00
31
0121406607
ref: 31
BOLT
€ 3.50
32
0932013015
ref: 32
CUSHION
0932013015
€ 3.00
33
0924130008
ref: 33
PLUG(OD:30)
0924130008
€ 7.00
34
0930108007
ref: 34
BUSH
0930108007
€ 4.00
35
1118038B10
ref: 35
COVER,BREATHER
€ 32.00
36
1117738B01H17
ref: 36
GASKET,BREATHER COVER (NAS)
1117738B01H17
€ 19.00
37
1310138B01
ref: 37
PIPE ASSY,INTAKE FR
1310138B01
€ 87.50
38
0928042003
ref: 38
O RING(D:2.4,ID:41.7)
0928042003
€ 8.50
39
0155006163
ref: 39
BOLT
0155006163
€ 2.50
40
0940252501
ref: 40
CLAMP
0940252501
€ 9.00
41
0936206002
ref: 41
BOLT UNION
0936206002
€ 11.00
42
0916806018
ref: 42
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
43
1140038863
ref: 43
<-11400-38862
GASKET SET (NAS)
€ 231.00
