FRONT FORK

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

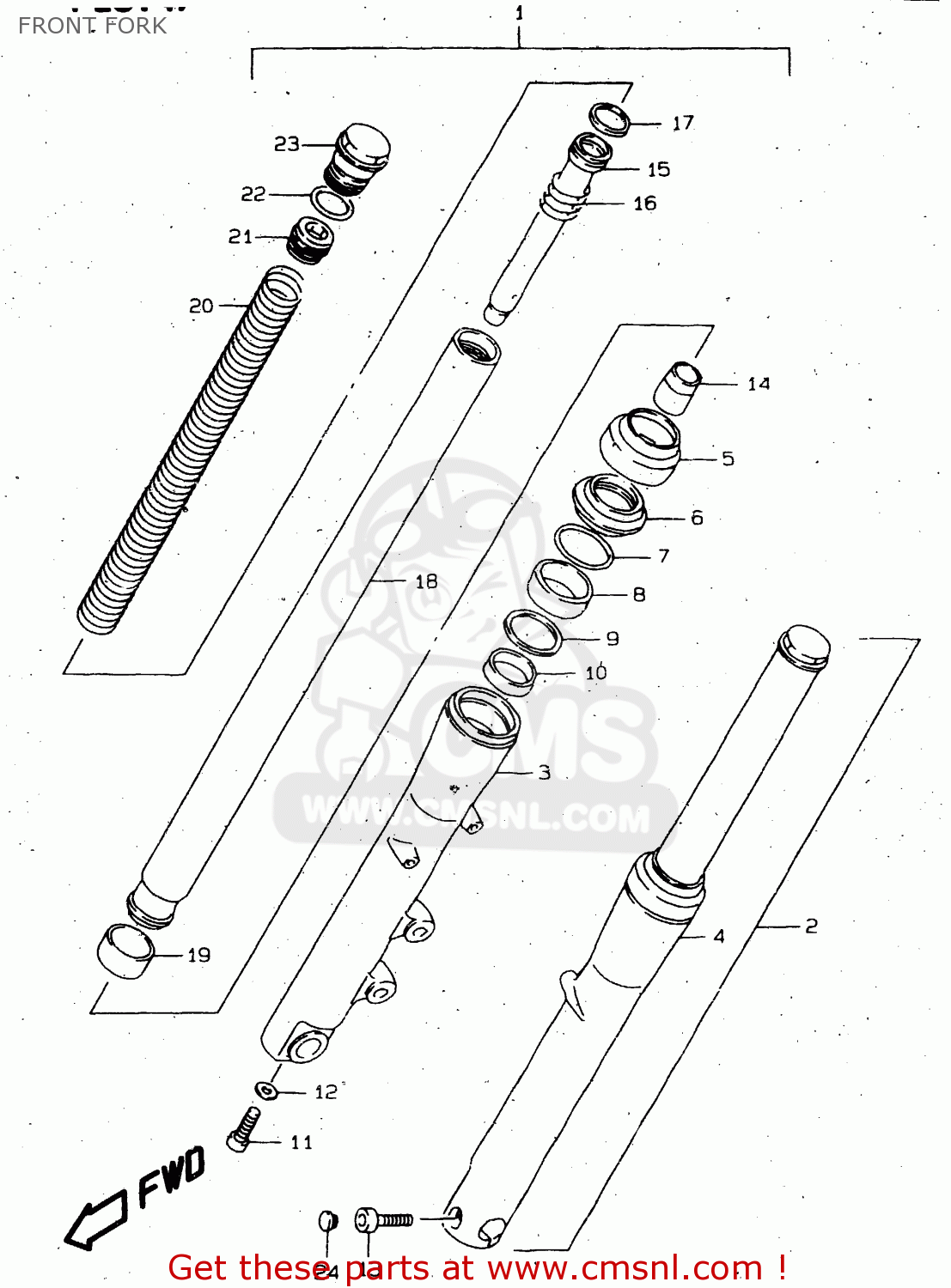

Front fork diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

FRONT FORK VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
FRONT FORK VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
FRONT FORK VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
5110338B00
ref: 1
DAMPER ASSY,FR FORK,R
€ 858.50
2
5110438B00
ref: 2
DAMPER ASSY,FR FORK,L
€ 923.50
3
5113138B00
ref: 3
TUBE,OUTER,R
5113138B00
€ 470.00
4
5114138B00
ref: 4
TUBE,OUTER,L
5114138B00
€ 470.00
5
5157238B00
ref: 5
COVER,CASE
5157238B00
€ 31.00
6
5117315D00
ref: 6
DUST SEAL
5117315D00
€ 19.50
7
5155638B00
ref: 7
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
8
5115308D00
ref: 8
SEAL,OIL
5115308D00
€ 15.50
9
5116838B00
ref: 9
SPACER,SEAL
5116838B00
€ 5.00
10
5115248B31
ref: 10
BUSH,GUIDE
5115248B31
€ 20.00
11
5114748130
ref: 11
BOLT(8X27)
5114748130
€ 3.50
12
5114836011
ref: 12
GASKET (NAS)
5114836011
€ 4.00
13
0713008407
ref: 13
BOLT
0713008407
€ 3.50
14
5119538B00
ref: 14
PIECE,OIL LOCK
5119538B00
€ 27.50
15
5114638B00
ref: 15
CYLINDER
€ 92.00
16
5117732B00
ref: 16
SPRING,REBOUND
5117732B00
€ 9.50
17
5119632B00
ref: 17
RING,PISTON
5119632B00
€ 7.50
18
5111038B00
ref: 18
TUBE,INNER
€ 546.00
19
5112103D00
ref: 19
BUSH,SLIDE
5112103D00
€ 15.00
20
5117138B00
ref: 20
SPRING,FR FORK
€ 119.50
21
5135338B00
ref: 21
BOLT,FORK INNER
5135338B00
€ 27.50
22
5111738B00
ref: 22
O RING
5111738B00
€ 4.00
23
5135138B00
ref: 23
BOLT
5135138B00
€ 81.00
24
0925006009
ref: 24
CAP(OD:14.5)
0925006009
€ 3.50
