CYLINDER

VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

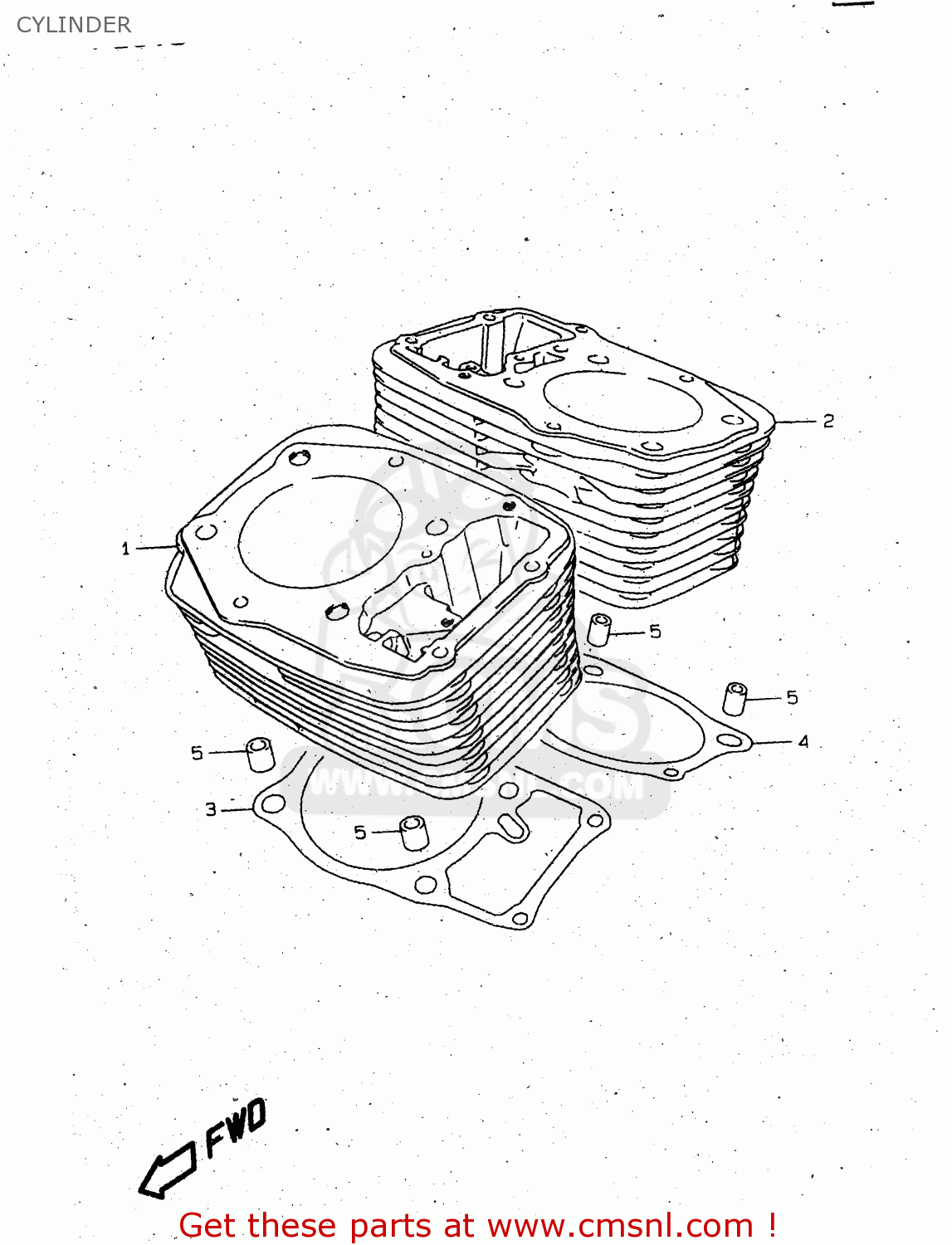

Cylinder diagram VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CYLINDER VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

CYLINDER VS1400GLP 1997 (V) (E02 E04 E17 E22 E24 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1121038B02
ref: 1
MODEL T/V/W

CYLINDER,FRONT

€ 666.50

1

1121038B50
ref: 1
MODEL X

CYLINDER,FRONT

€ 574.00

2

1122038B02
ref: 2
MODEL T/V/W

CYLINDER,REAR

€ 563.50

2

1122038B50
ref: 2
MODEL X

CYLINDER,REAR

€ 563.50

3

1124138B00H17
ref: 3

GASKET,CYLINDER FR (NAS)

€ 26.00

4

1124238B00H17
ref: 4

GASKET,CYLINDER RR (NAS)

€ 23.50

5

0421113189
ref: 5

PIN

€ 2.50
